DTC 0215

COMPONENT DESCRIPTION

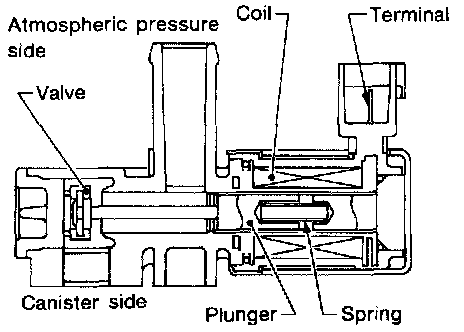

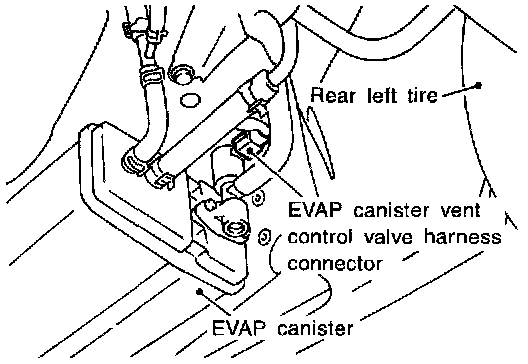

The EVAP canister vent control valve is located on the EVAP canister and is used to seal the canister vent.
This solenoid (the EVAP canister vent control valve) responds to signals from the ECM.
When the ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal the vent is necessary for the on board diagnosis of other evaporative emission control system components.
This solenoid valve is used only for diagnosis, and usually remains opened.
When the vent is closed, under normal purge conditions, the evaporative emission control system is depressurized and allows "EVAP Control System (Small Leak)" diagnosis.




CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

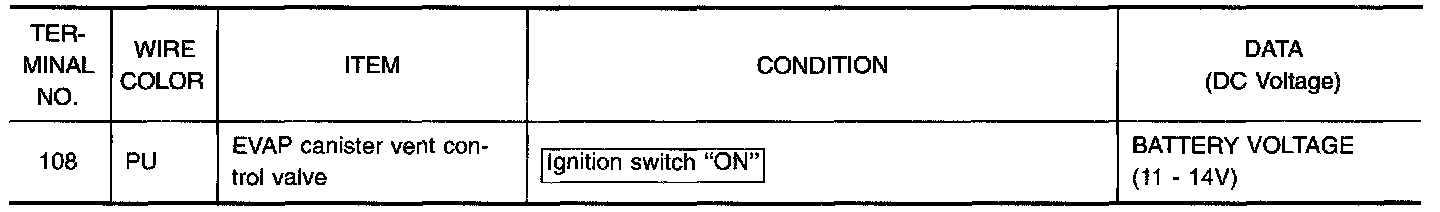

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECCS ground).

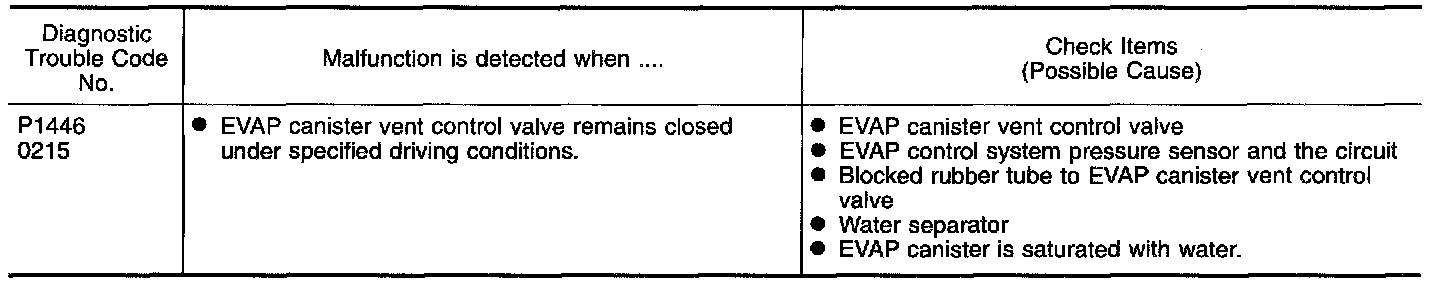

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.




With Consult
1) Turn ignition switch "ON".

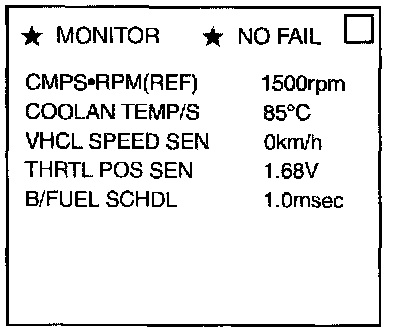

2) Select "DATA MONITOR" mode with CONSULT.
3) Start engine.
4) Drive vehicle at a speed of approximately 80 km/h (50 MPH) for a maximum of 15 minutes.

NOTE: If a malfunction exists, NG result may reveal soon.

OR

With Generic Scan Tool
1) Start engine.
2) Drive vehicle at a speed of approximately 80 km/h (50 MPH) for 15 minutes.
3) Select "MODE 7" with GST.

OR

Without Scan Tools
1) Start engine.
2) Drive vehicle at a speed of approximately 80 km/h (50 MPH) for 15 minutes.
3) Turn ignition switch "OFF" and wait at least 5 seconds.
4) Turn ignition switch "ON" and perform "DIAGNOSTIC TEST MODE (Self-diagnostic results)" with ECM.

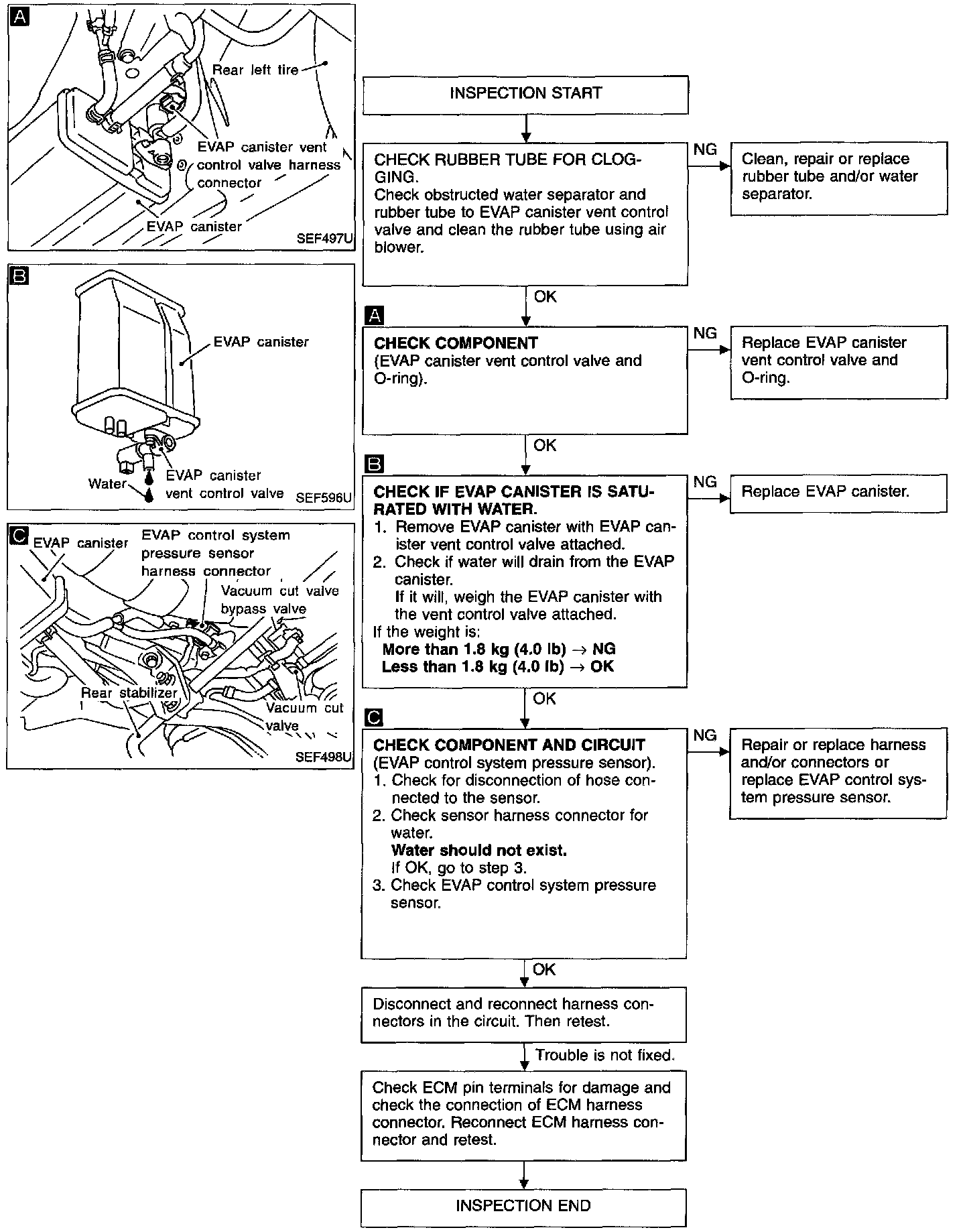

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION
EVAP Canister Vent Control Valve
With Consult

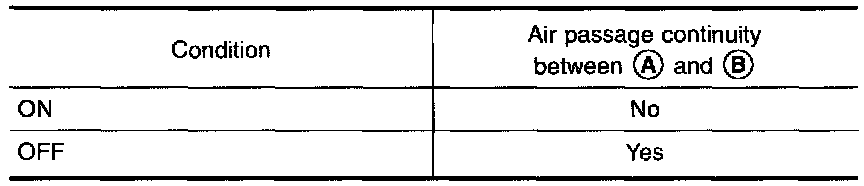

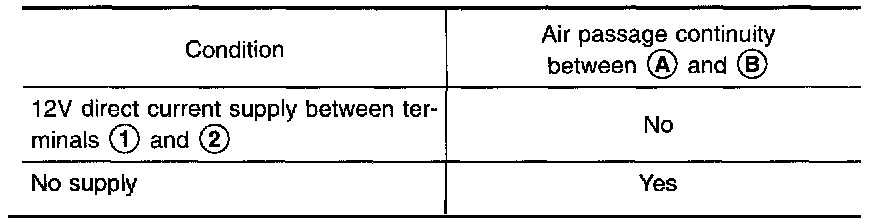

Check air passage continuity.

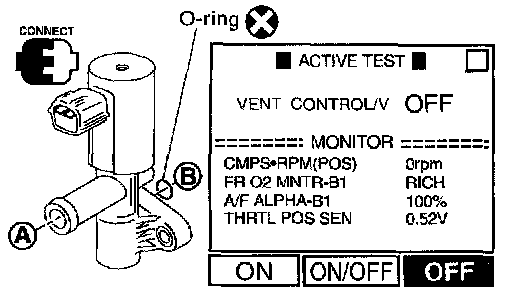

Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.

OR







Without Consult

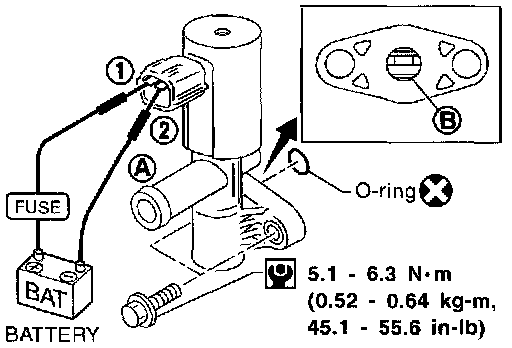

If NG, clean valve using air blower or replace as necessary. If the portion (B) is rusted, replace EVAP canister vent control valve.
Make sure new O-ring is installed properly.







EVAP Control System Pressure Sensor
1. Remove EVAP control system pressure sensor with its harness connector connected.
2. Remove hose from EVAP control system pressure sensor.

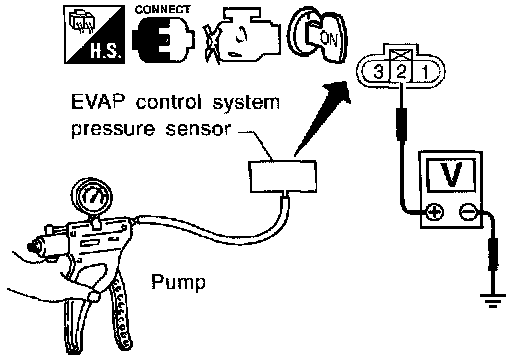

3. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

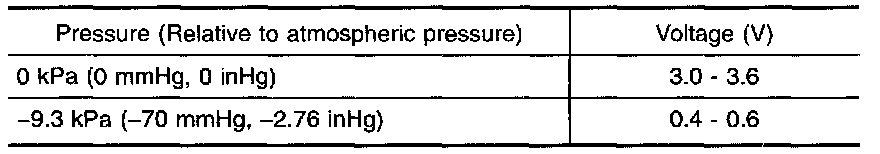

4. Check output voltage between terminal (2) and engine ground.

CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply pressure over 20.0 kPa (150 mmHg, 5.91 in Hg).

5. If NG, replace EVAP control system pressure sensor.




Water Separator
1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.

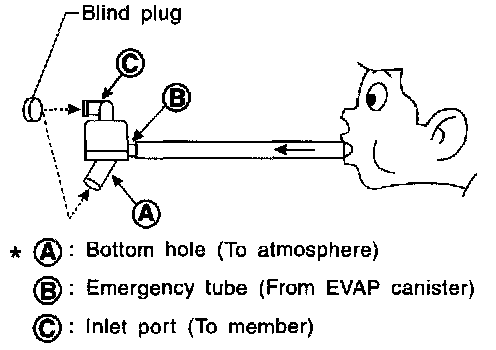

4. Check that (A) and (C) are not clogged by blowing air from (B) with (A) and then (C) plugged.
5. In case of NG in items 2 - 4, replace the parts.
- Do not disassemble water separator.
