DTC 0214

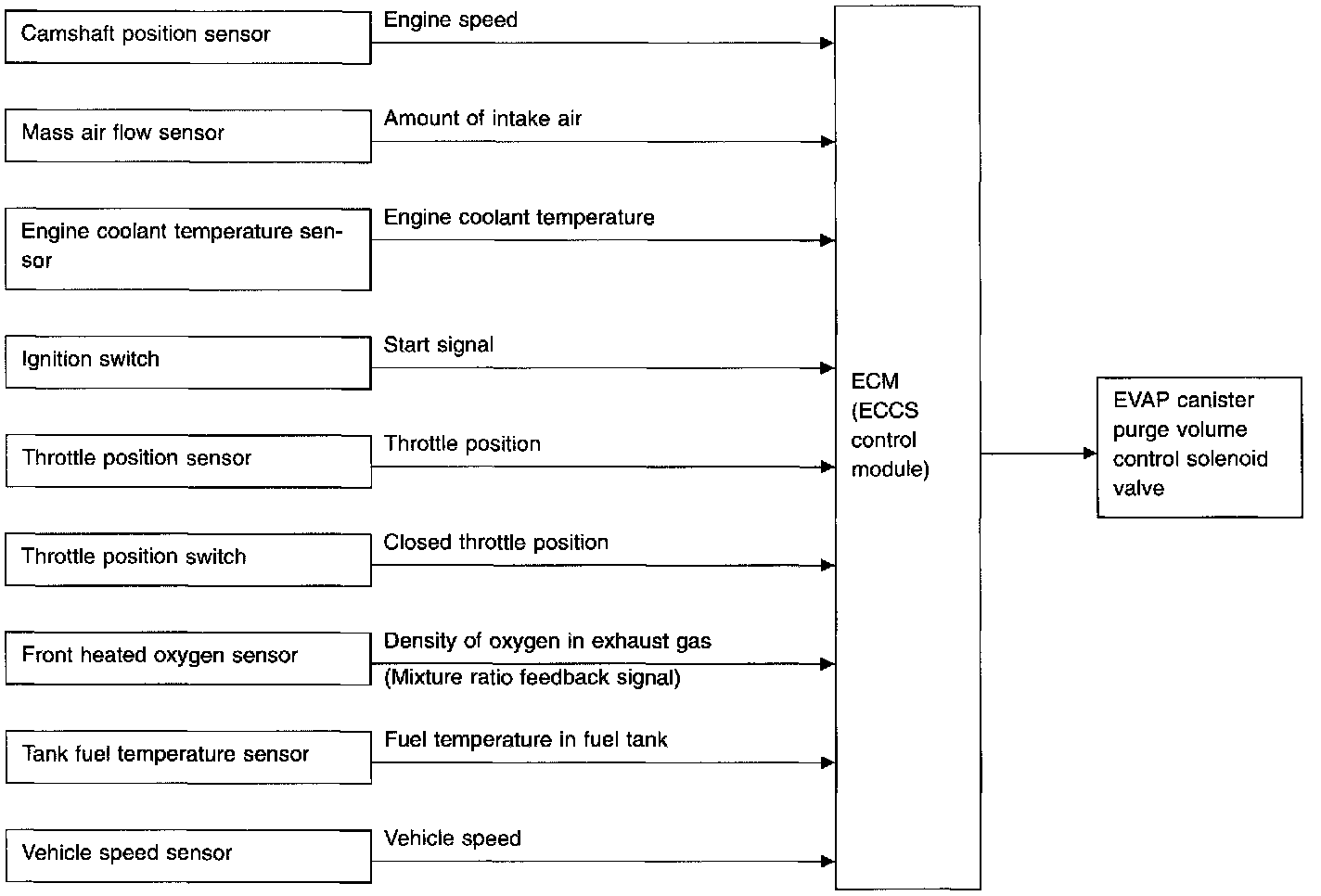

SYSTEM DESCRIPTION
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass passage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor from the EVAP canister is regulated as the air flow changes.




COMPONENT DESCRIPTION

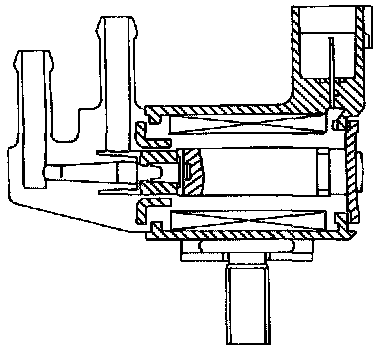

The EVAP canister purge volume control solenoid valve uses ON/OFF duty to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

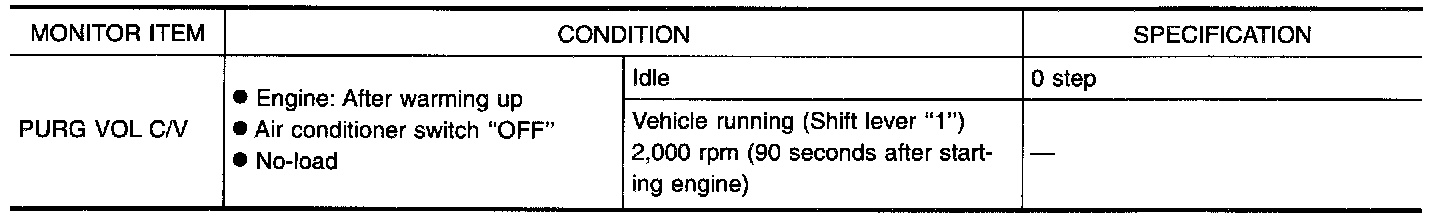

CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

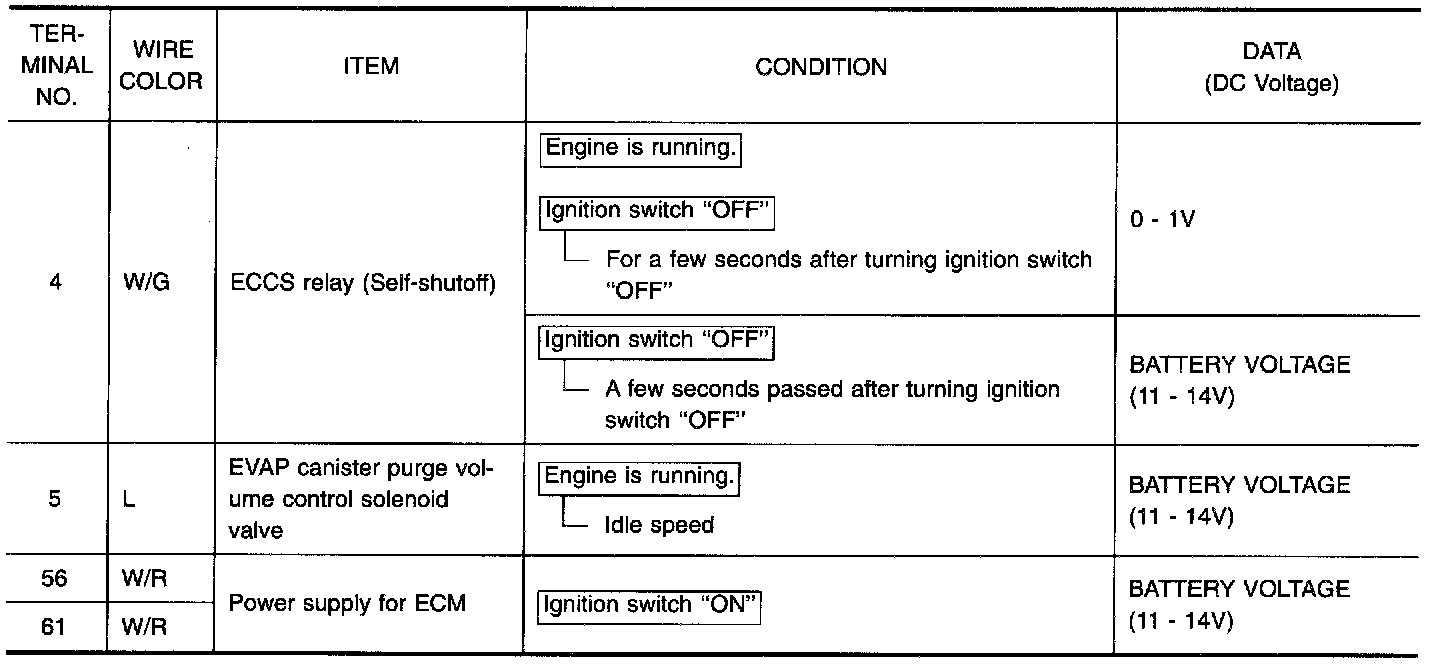

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECCS ground).

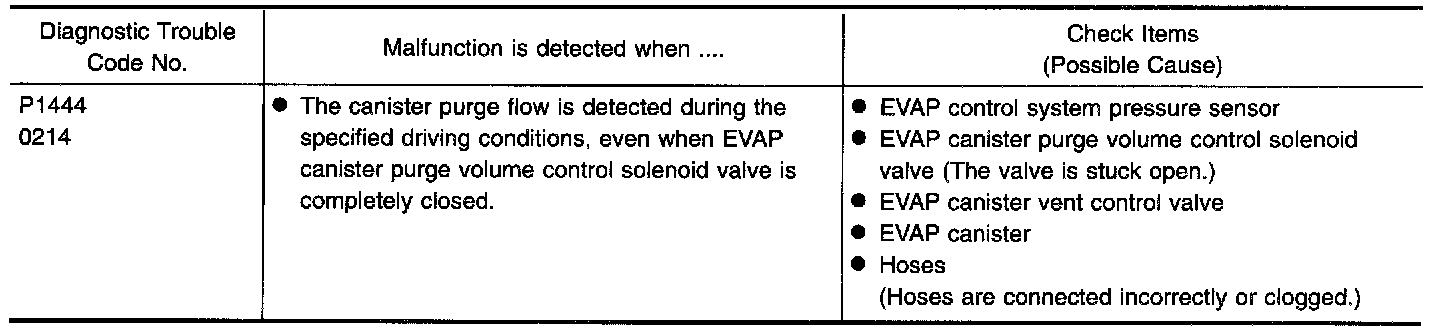

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Always perform test at a location of 5°C (41°F) or more.










With Consult
1) Start engine and warm it up to normal operating temperature.
2) Turn ignition switch "OFF" and wait at least 5 seconds.
3) Turn ignition switch "ON".

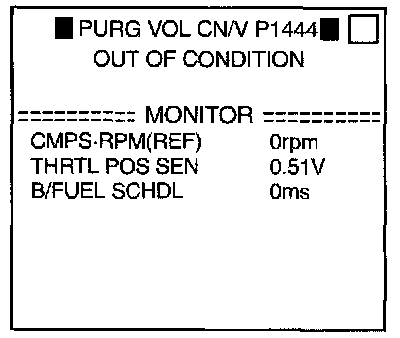

4) Select "PURG VOL ON P1444" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT.
5) Touch "START".

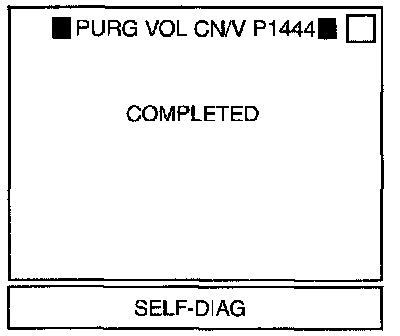

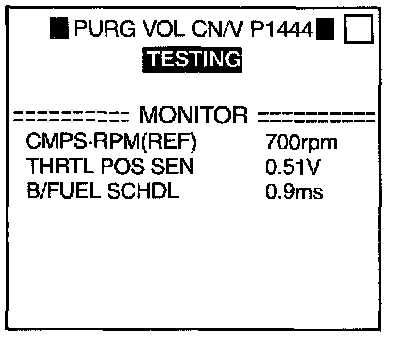

6) Start engine and let it idle until "TESTING" on CONSULT changes to "COMPLETED". (It will take for at least 2 seconds.)
If "TESTING" is not displayed after 5 minutes, retry from step 2).
7) Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE".)

OR

With Generic Scan Tool
1) Start engine and warm it up to normal operating temperature.
2) Turn ignition switch "OFF" and wait at least 5 seconds.
3) Start engine and let it idle for at least 2 seconds.
4) Select "MODE 7" with GST.

OR

Without Scan Tools
1) Start engine and warm it up to normal operating temperature.
2) Turn ignition switch "OFF" and wait at least 5 seconds.
3) Start engine and let it idle for at least 2 seconds.
4) Turn ignition switch "OFF" and wait at least 5 seconds.
5) Turn ignition switch "ON" and perform "Diagnostic Test Mode (Self-diagnostic results)" with ECM.

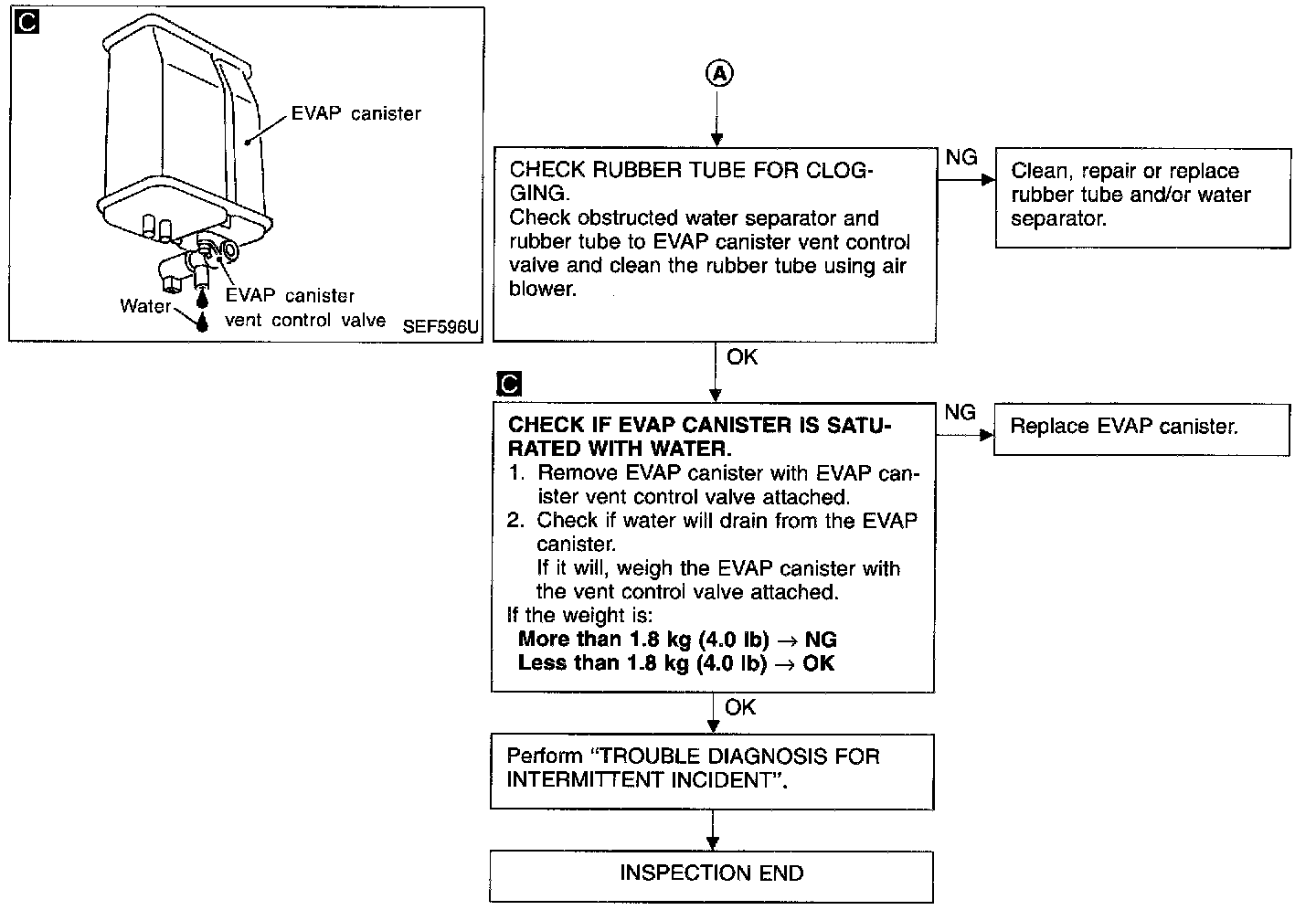

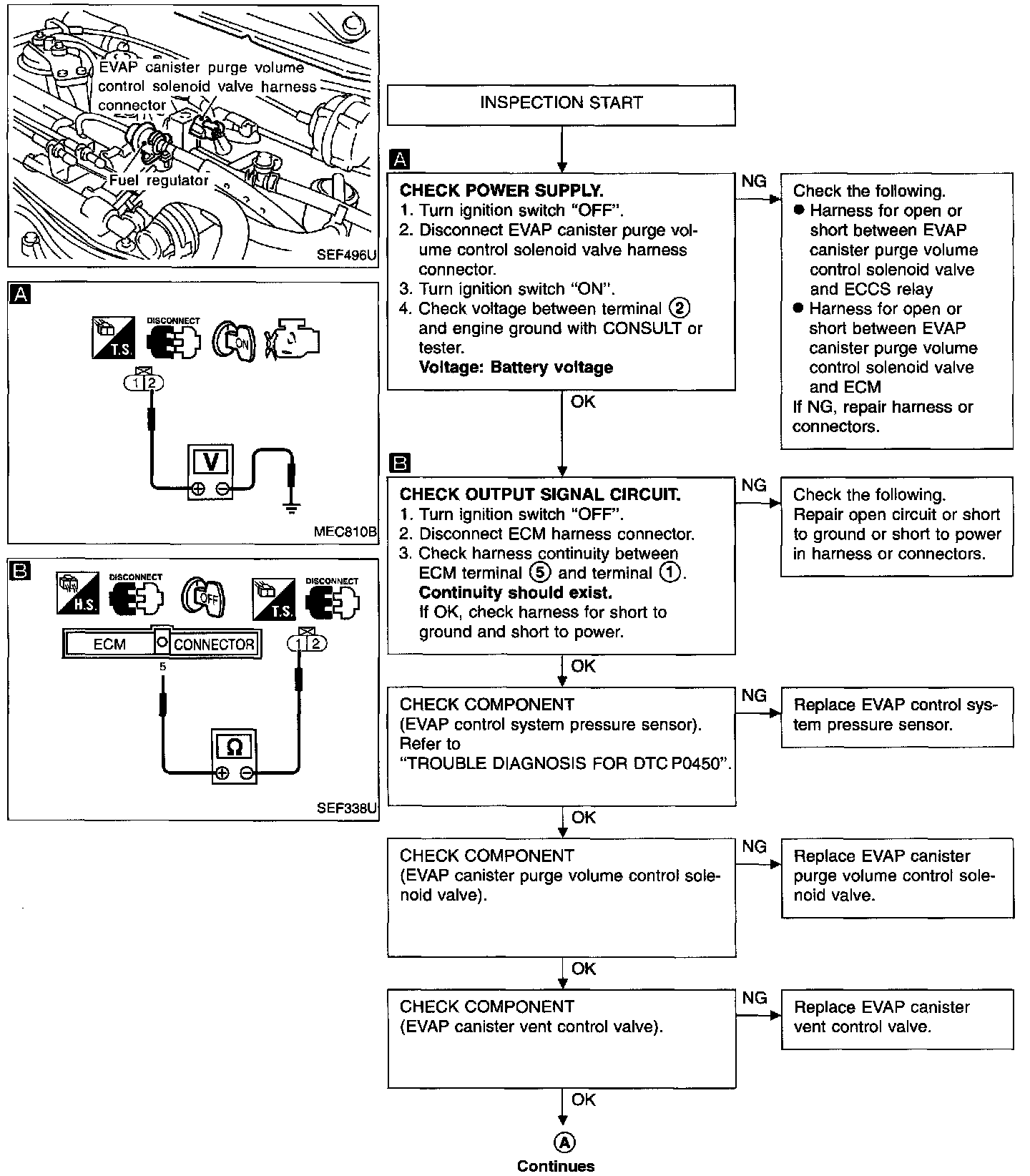

DIAGNOSTIC PROCEDURE

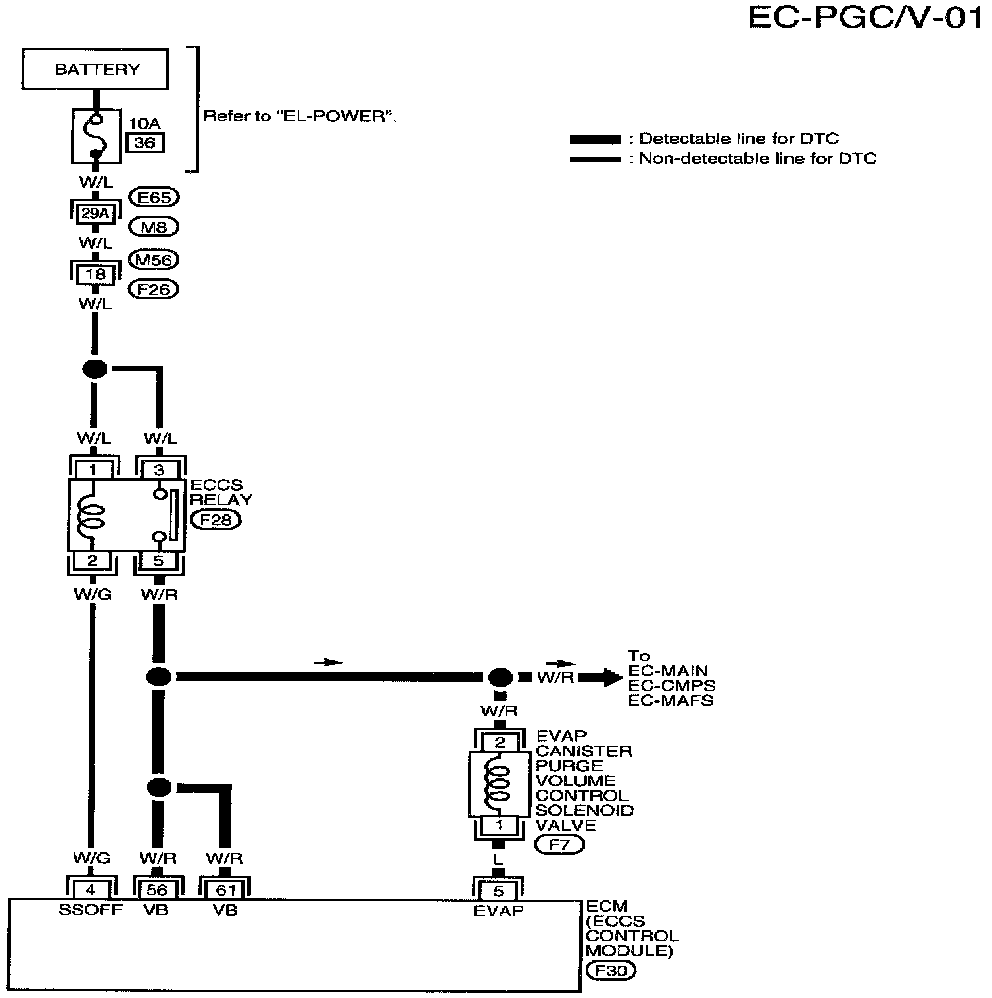

WIRING DIAGRAM

COMPONENT INSPECTION

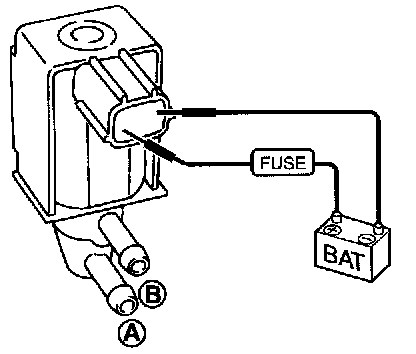

EVAP Canister Purge Volume Control Solenoid Valve







With Consult

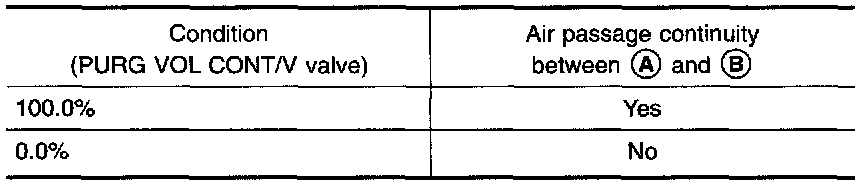

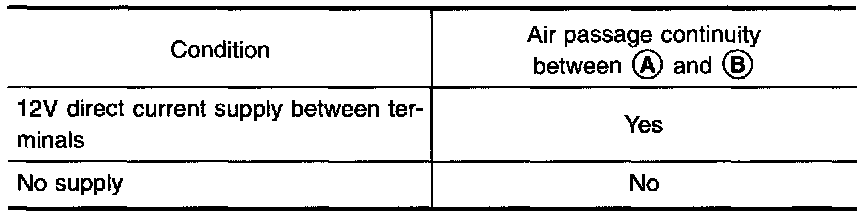

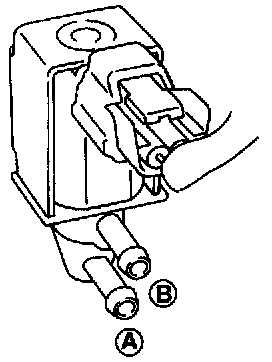

1. Check air passage continuity.
2. Start engine.

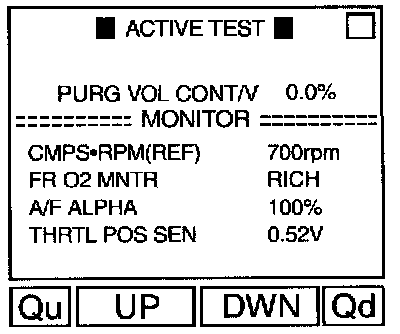

3. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT. Check that engine speed varies according to the valve opening.
If NG, replace the EVAP canister purge volume control solenoid valve.

OR










Without Consult
Check air passage continuity.
If NG, replace solenoid valve.
