A/T Model Wiring Diagram
A/T Model Wiring Diagram

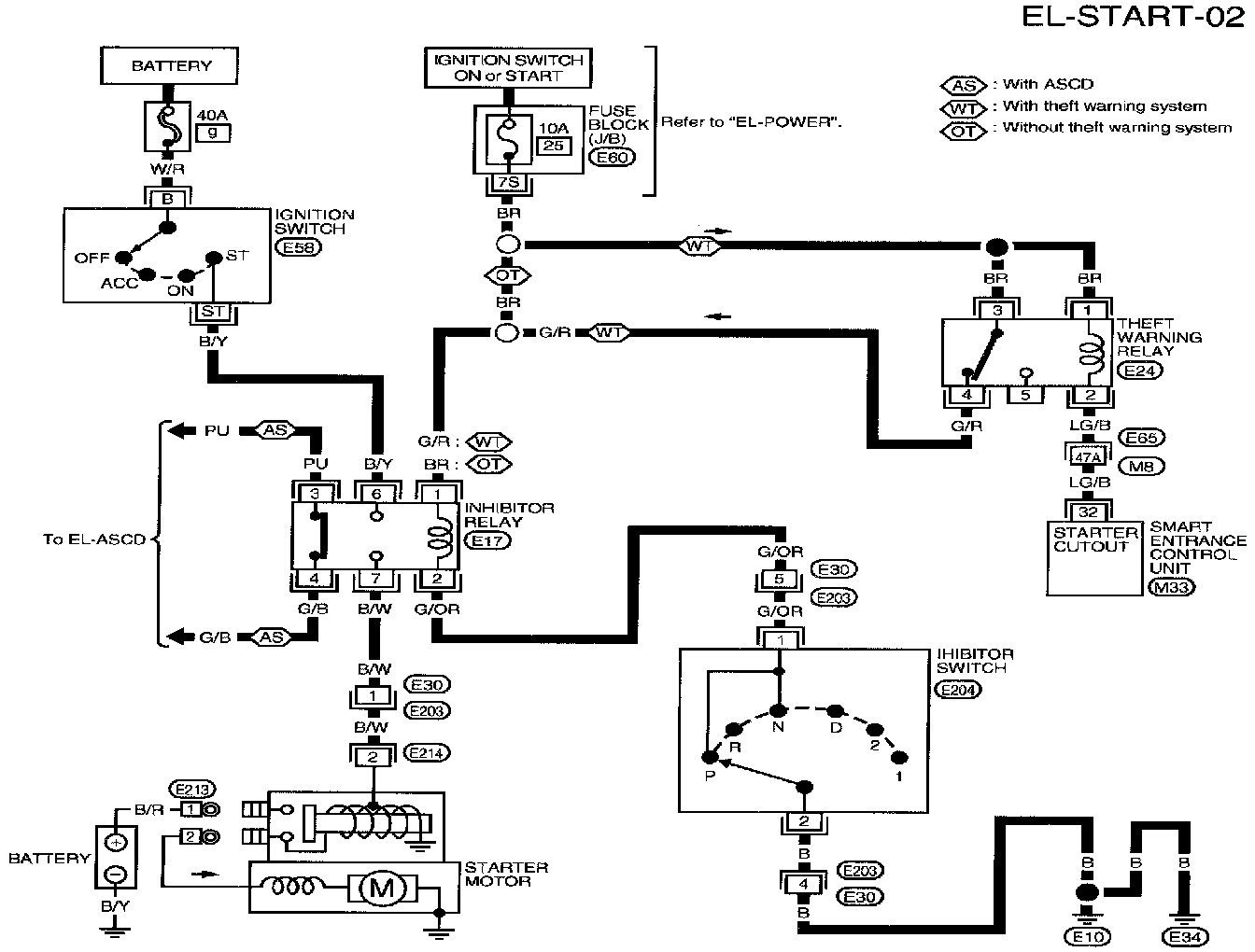

Circuit Diagram
Circuit Diagram

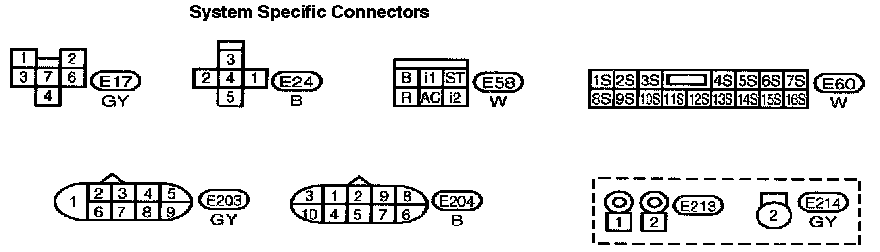

M33 Terminal Arrangement
