Altima GXE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Gear, M/T
>>
Synchronizer Ring, M/T
Synchronizer Ring, M/T

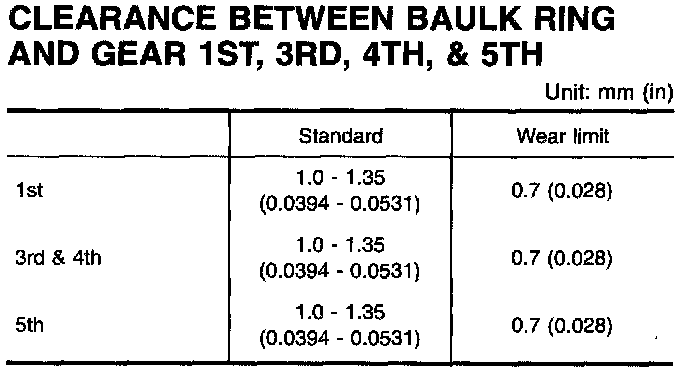

CLEARANCE BETWEEN BAULK RING AND GEAR 1ST, 3RD, 4TH & 5TH

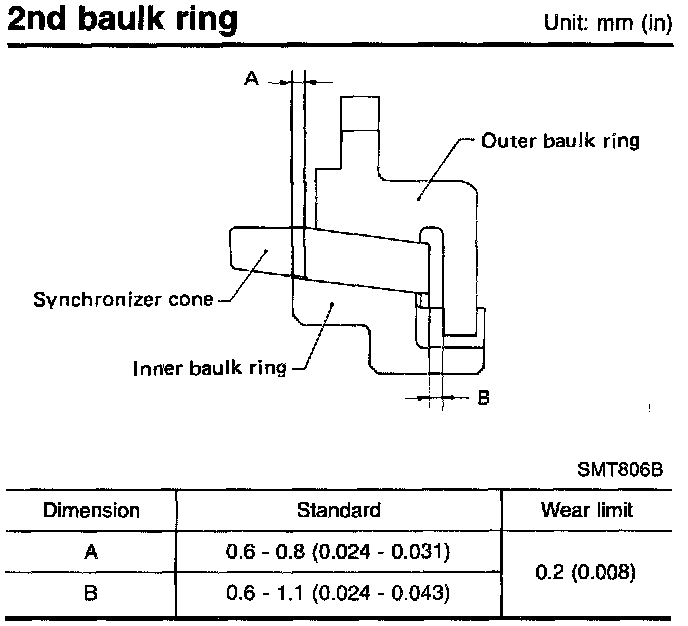

2ND BAULK RING
REVERSE BAULK RING
