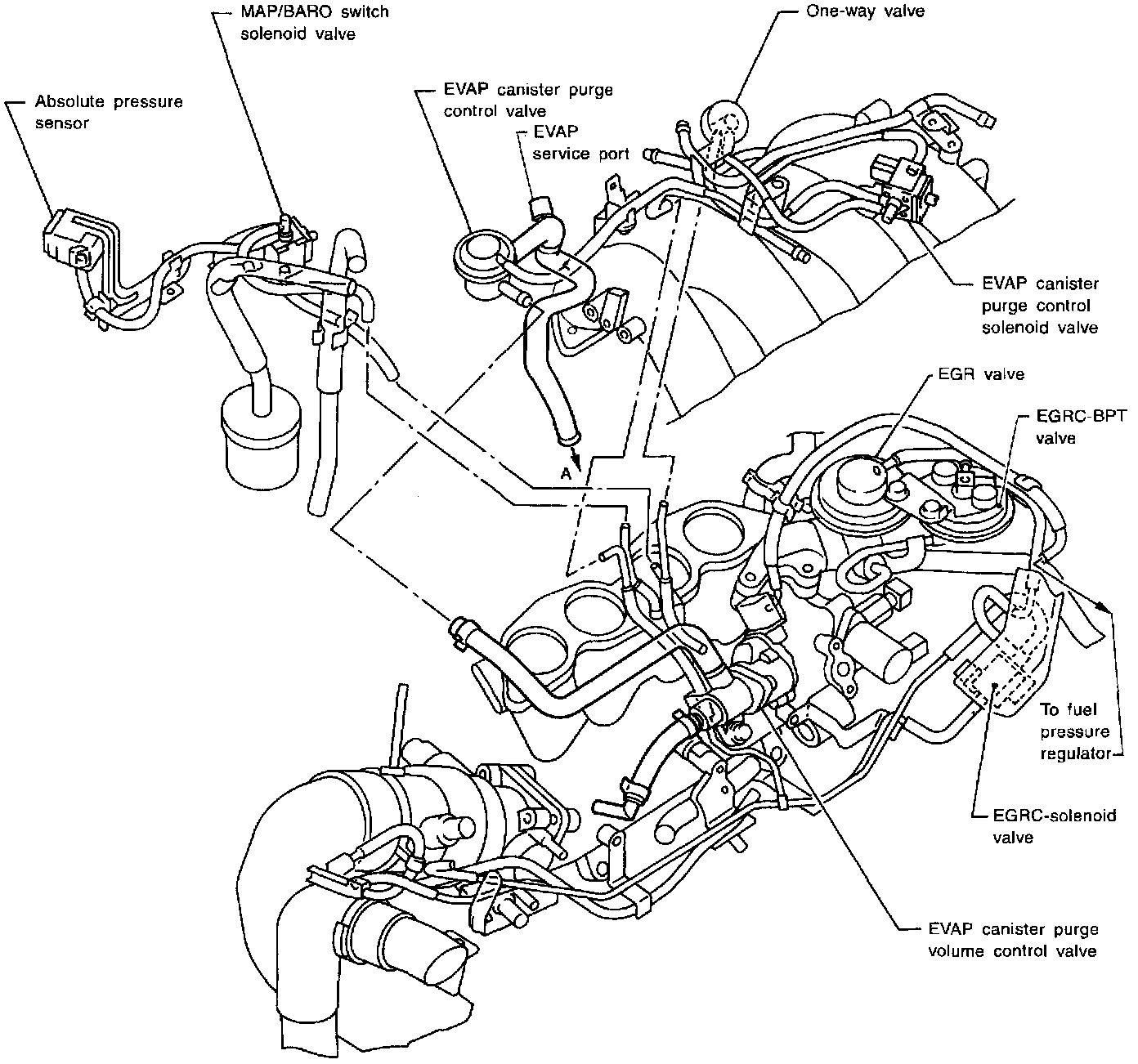

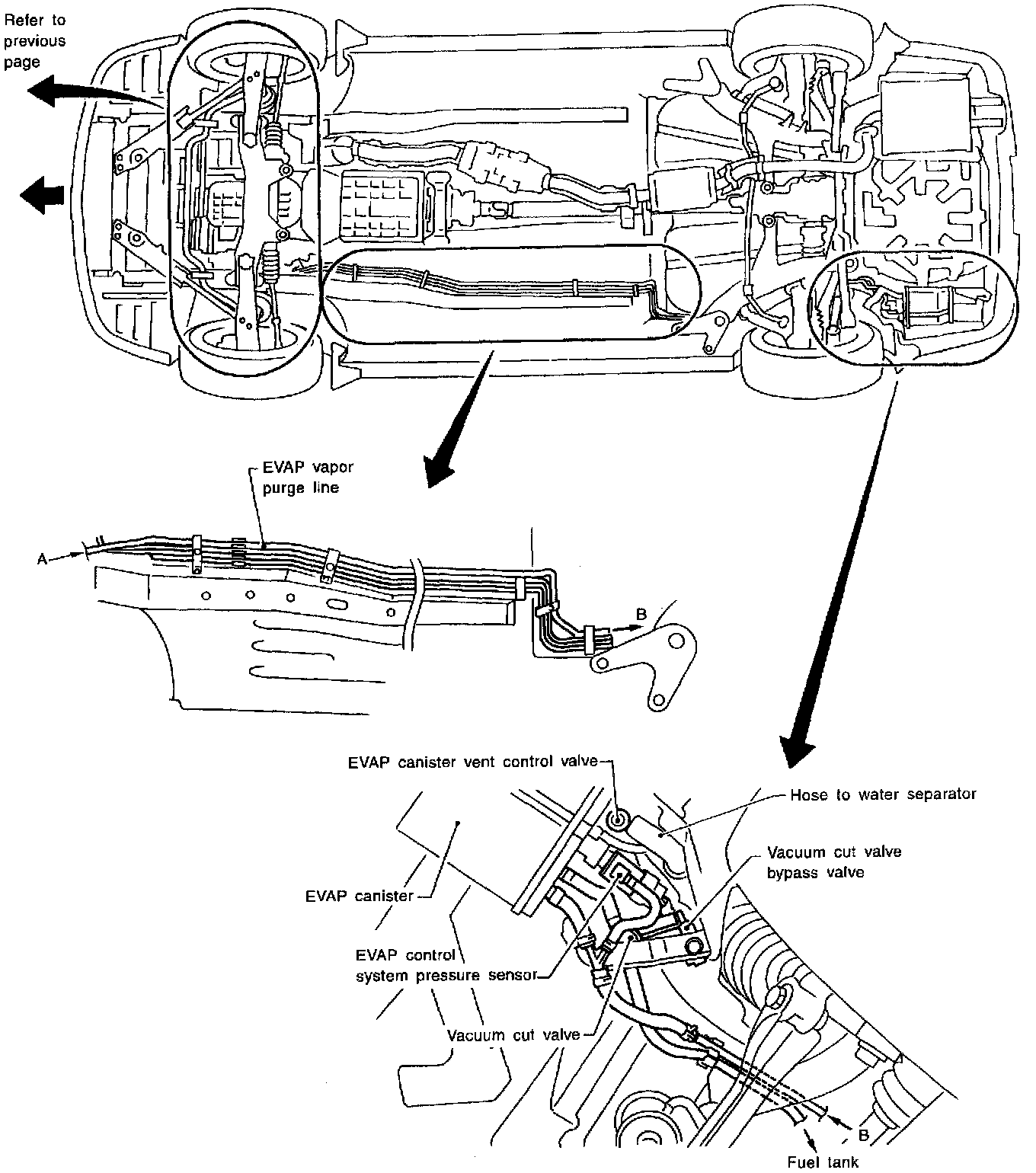

Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Evaporative Emissions System
Evaporative Emissions System
PAGE REFERENCE:
Note:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
