FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1997
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
EL-WINDOW-01 Power Window:

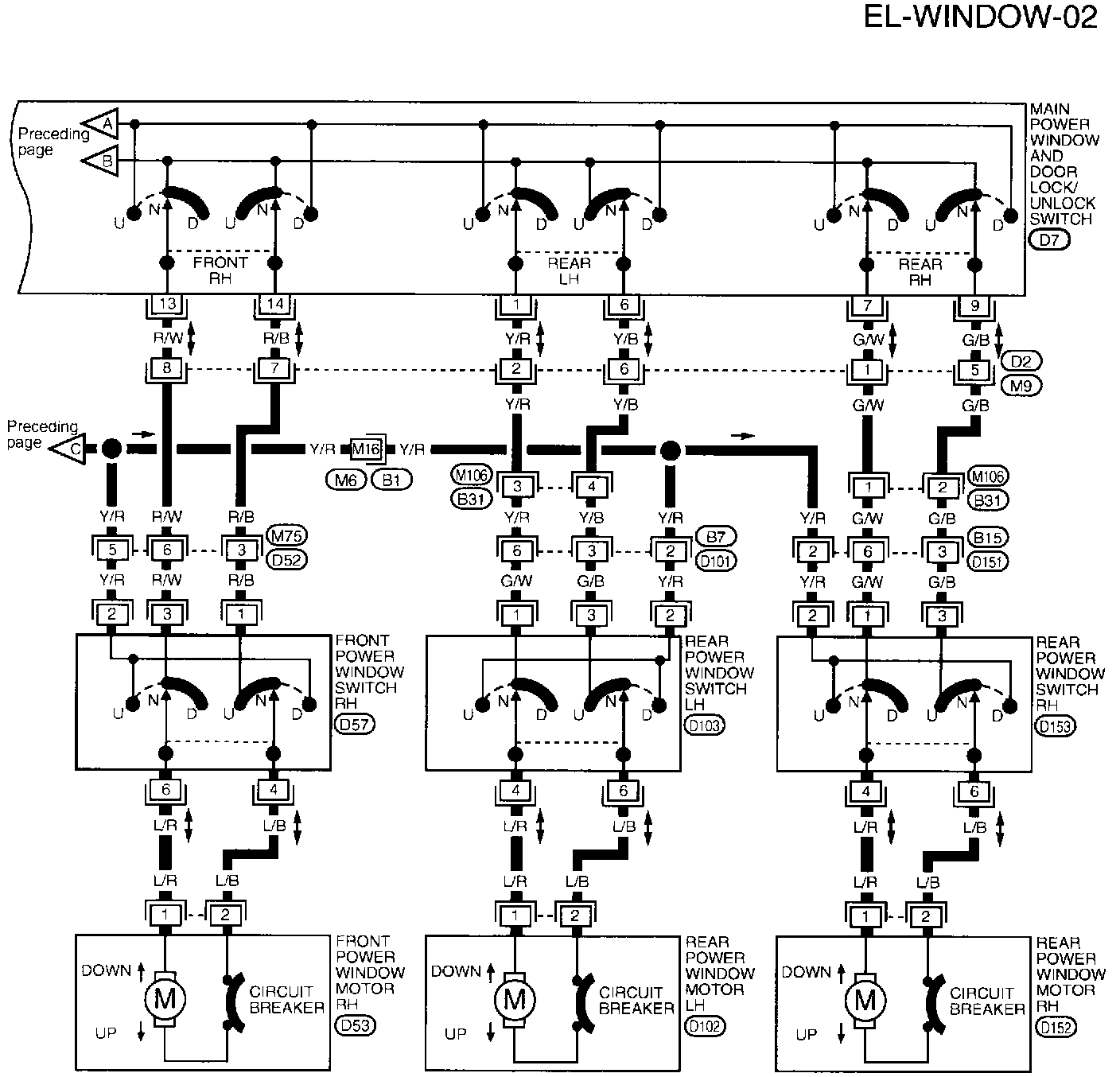

EL-WINDOW-02 Power Window (Part 2 Of 2):
