Seals and Gaskets: Service and Repair

REPLACEMENT
1. Drain gear oil from transaxle.

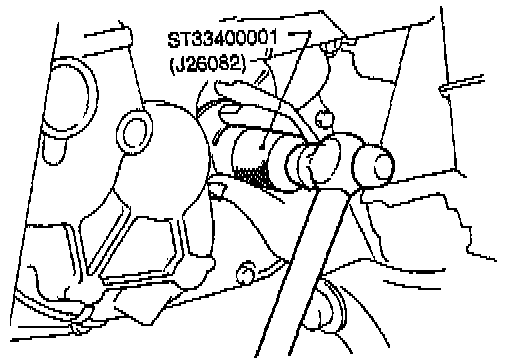

2. Remove drive shafts.

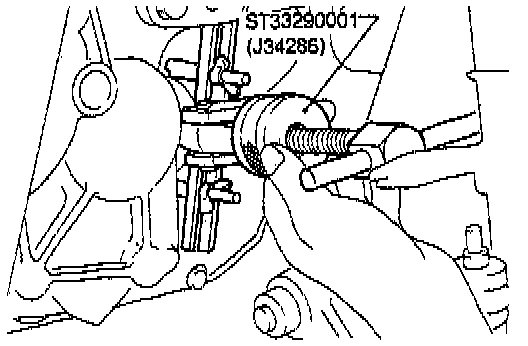

3. Remove differential oil seal with Tool.





4. Install differential oil seal using a suitable drift.

NOTE: Apply multi-purpose grease to seal lip of oil seal before installing.

5. Install drive shafts.
