Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
M/T Model Wiring Diagram
M/T Model Wiring Diagram

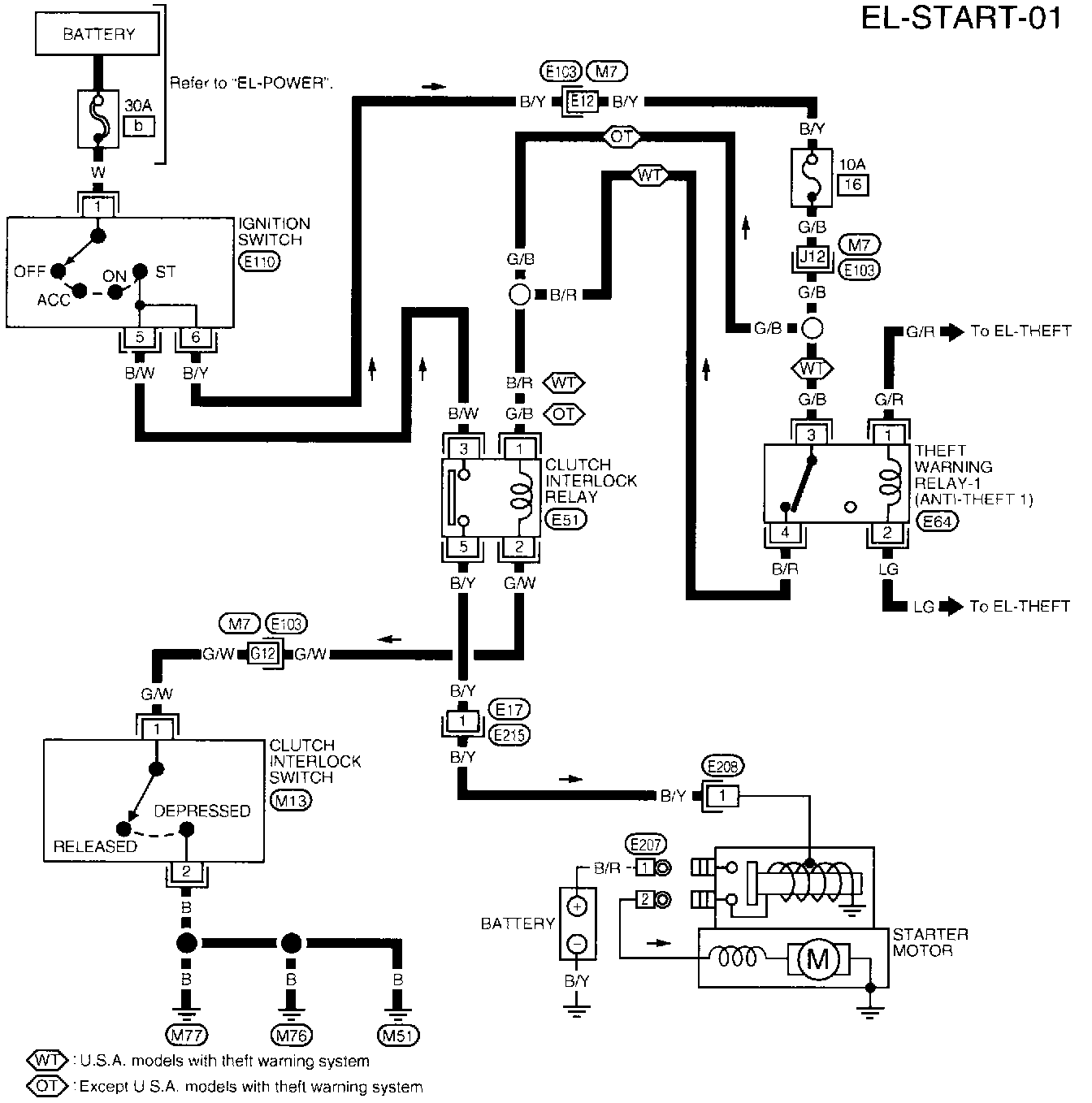

EL-START-01 Starting System: M/T Models:
