Nissan-Datsun
>>
1997
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
A/T Model Wiring Diagram
A/T Model Wiring Diagram

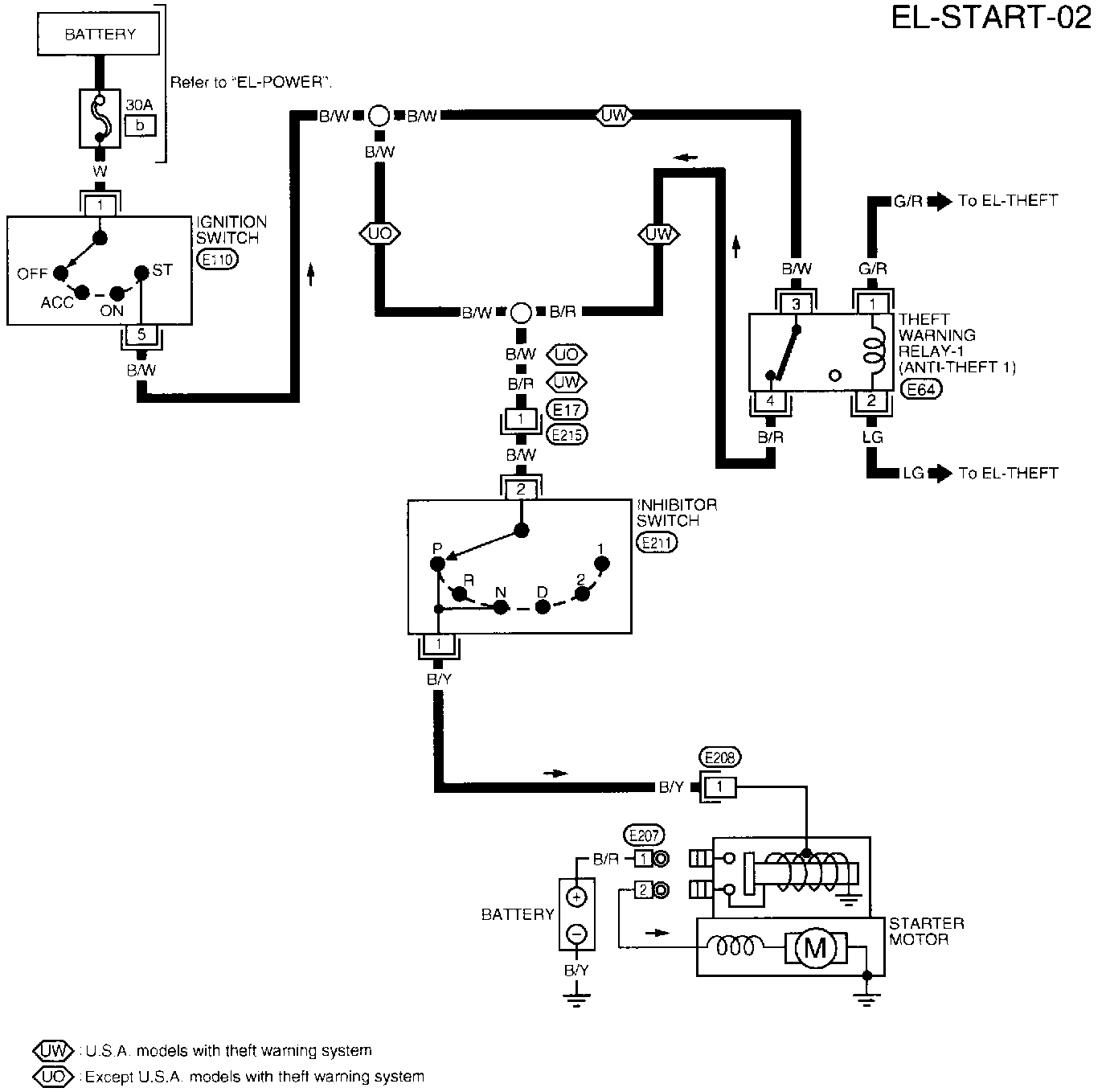

EL-START-02 Starting System: A/T Models:
