Diagnostic Procedure 4

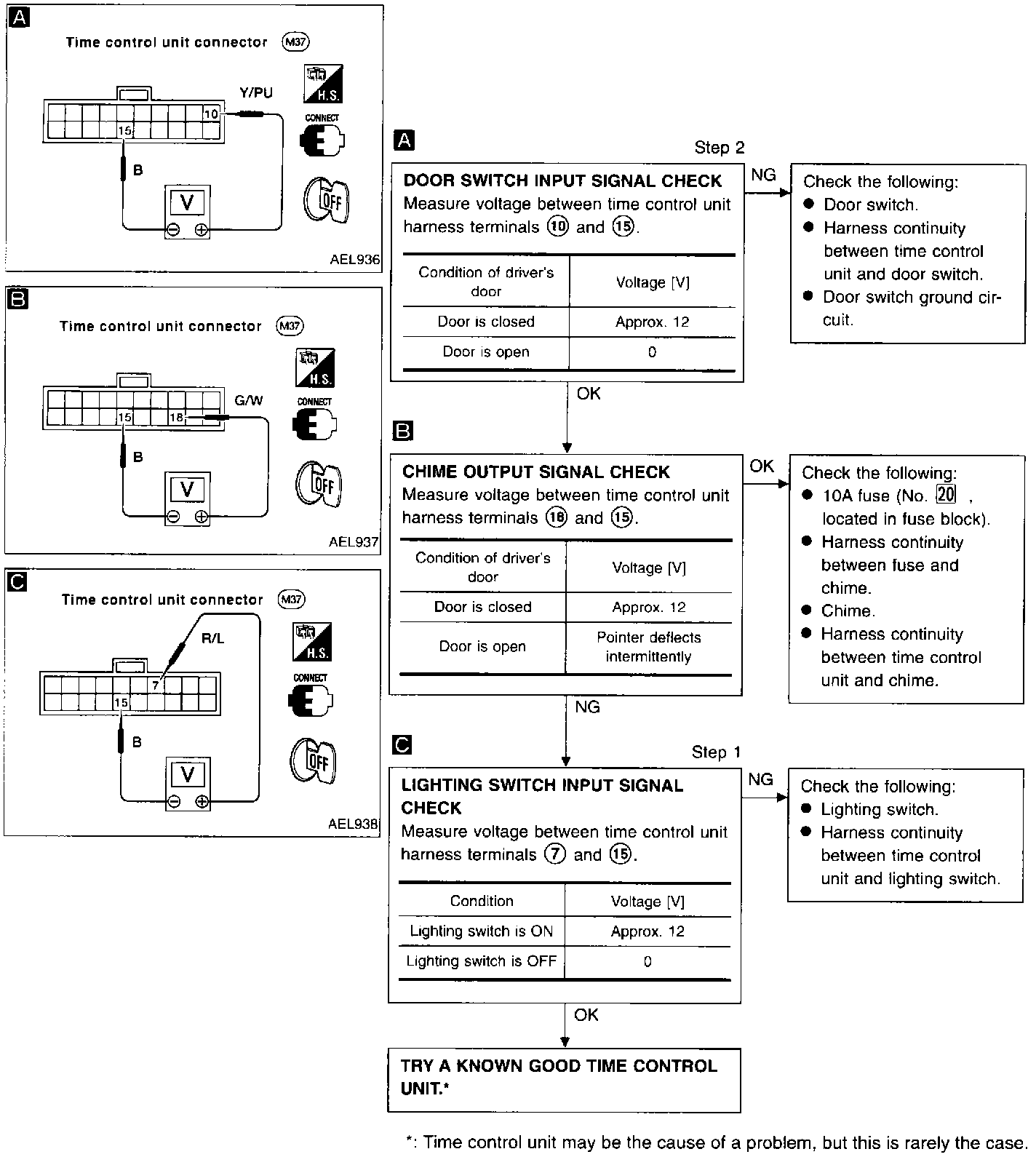

Diagnostic Procedure 4:





SYMPTOM: Light warning chime does not activate.
^ Perform "PRELIMINARY CHECK - Procedure 1" before referring to the flow chart.
