Home >> Nissan-Datsun >> 1997 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Throttle Position Sensor/Switch >> Testing and Inspection >> Wide Open Throttle Position Switch

Wide Open Throttle Position Switch







Wide open throttle position switch

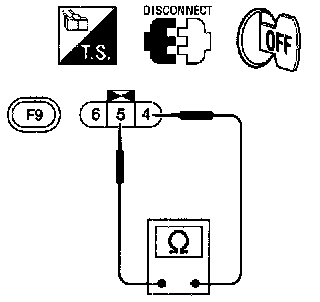

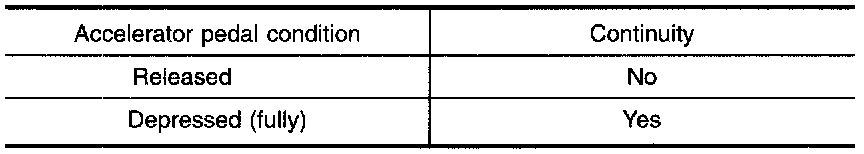

- Check continuity between terminals (4) and (5).
