Installation

INSTALLATION

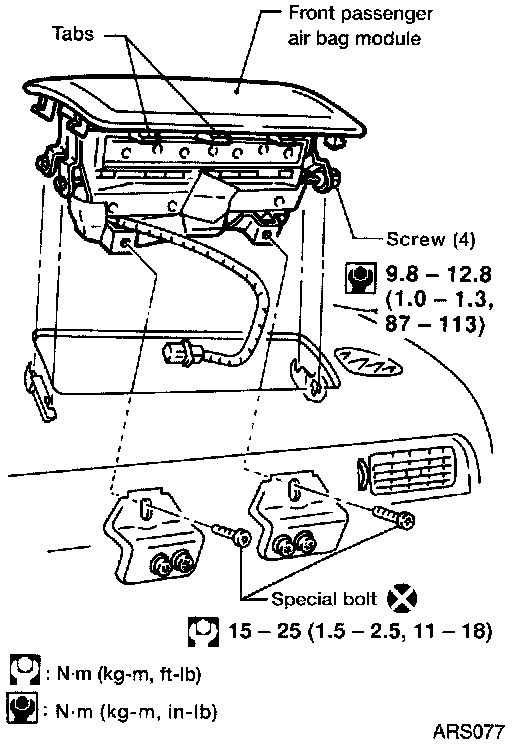

Front Passenger Air Bag Module - Installation:

1. Install front passenger air bag module in instrument panel.
^ Ensure harness is not caught between air bag module and support bracket.
^ Tighten four screws.
^ Install two new special bolts using TAMPER RESISTANT TORX (Size T50).

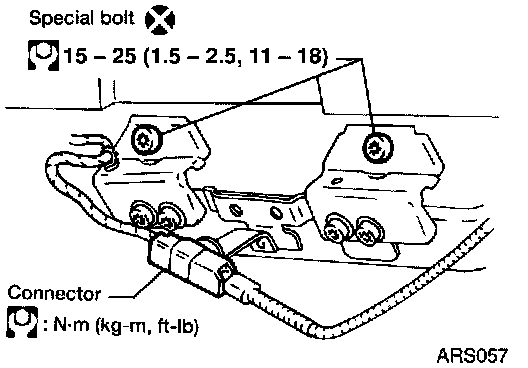

Front Passenger Air Bag Module - Installation:

2. Connect inflator connector to air bag harness.
3. Install glove box and glove box lid.
4. Conduct Self-diagnosis to ensure SRS operates properly. (Use CONSULT or warning lamp check).
