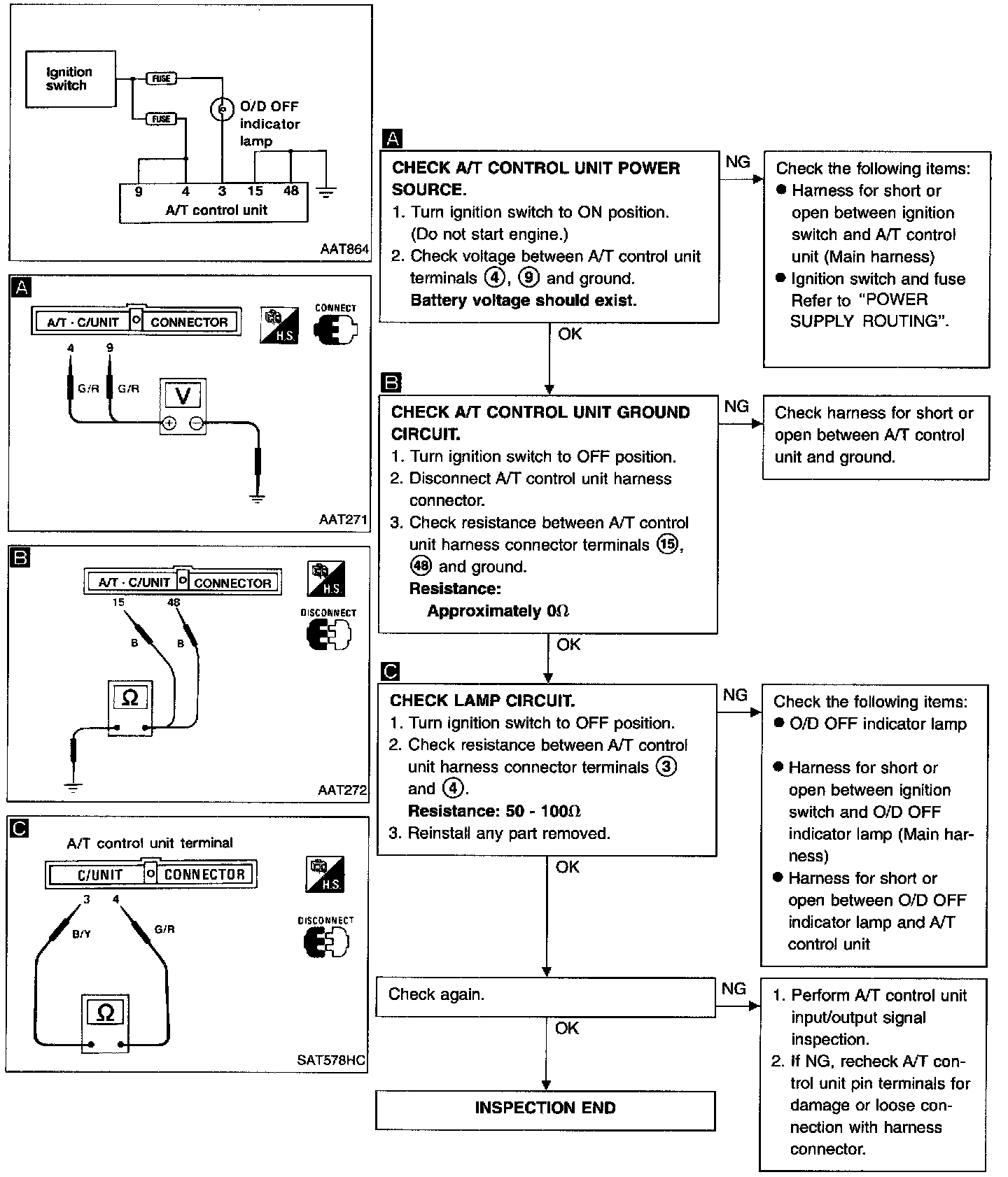

Diagnostic Procedure 1




Diagnostic Procedure 1

SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.
