Relationship Chart - Driving Pattern Except For "Misfire"

Note: Check TSBs for any available updates to drive patterns.

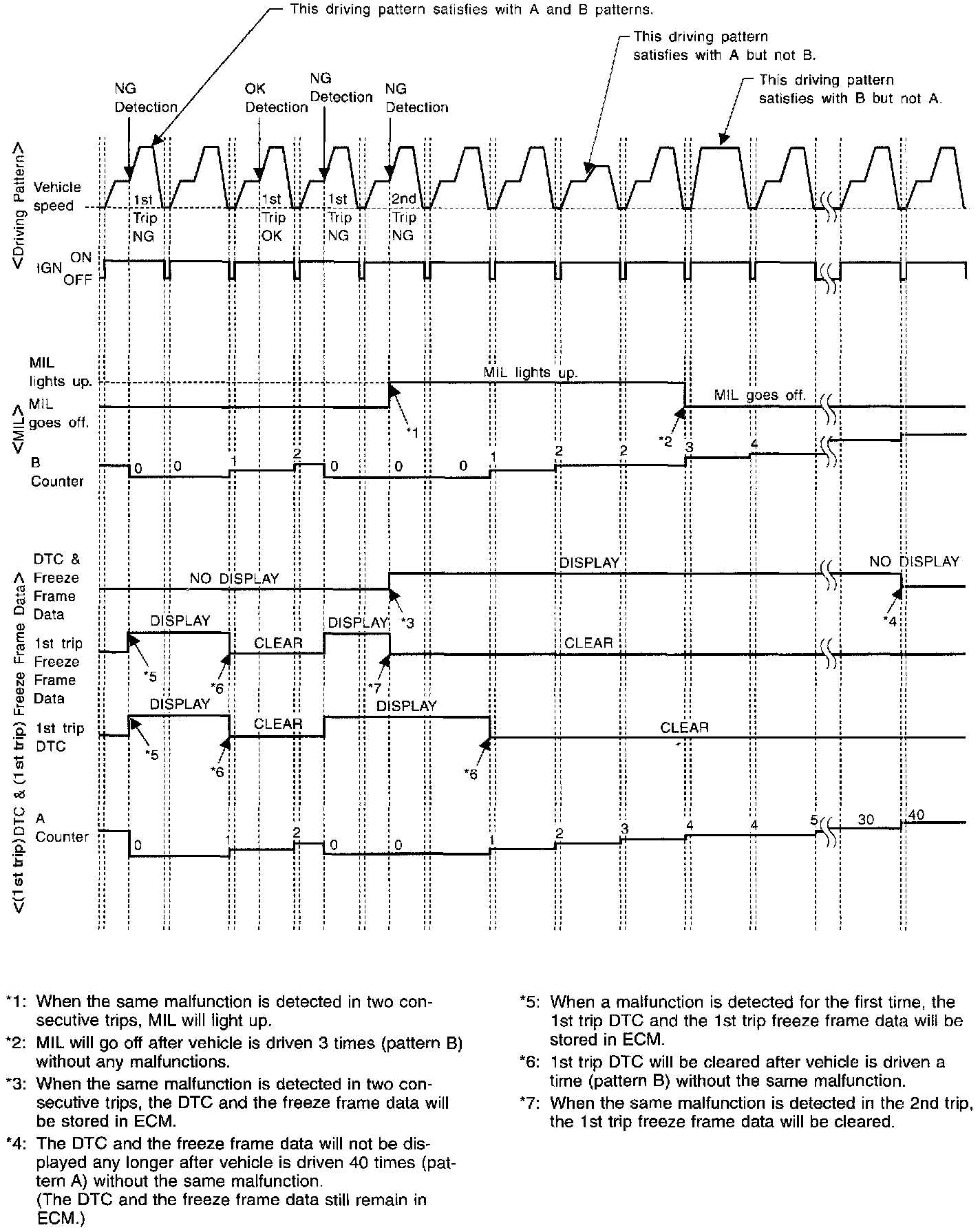

RELATIONSHIP BETWEEN MIL, DTC, CONSULT AND DRIVING PATTERNS EXCEPT FOR "MISFIRE ", "FUEL INJECTION SYSTEM"

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE ", "FUEL INJECTION SYSTEM"

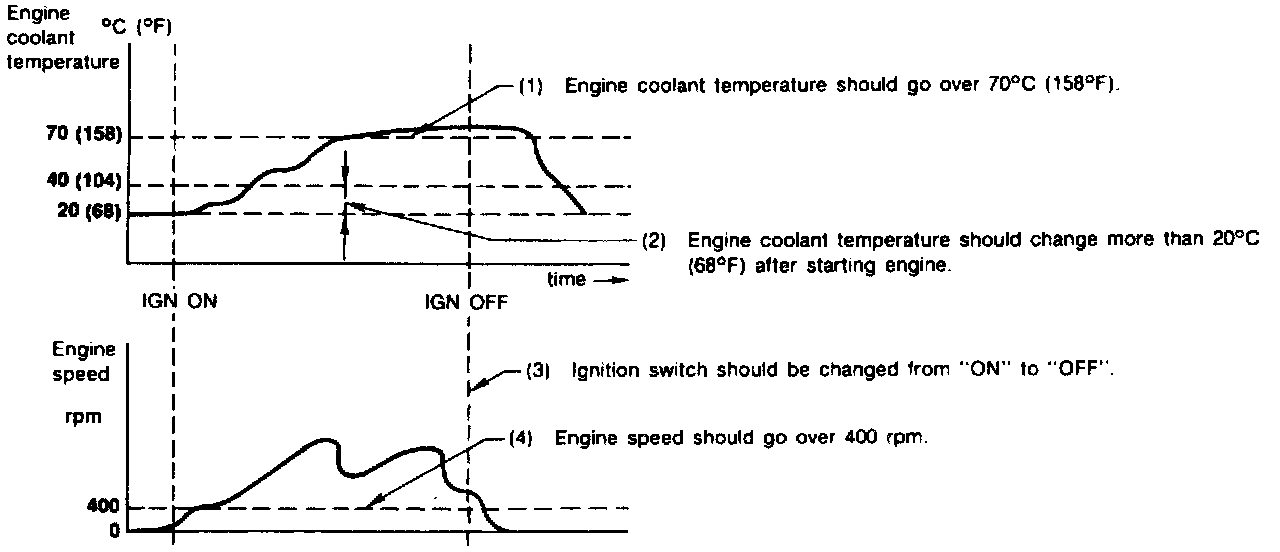

(Driving pattern A)
- The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
- The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the A counter reaches 40.

(Driving pattern B)
Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
- The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
- The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
- The MIL will go off when the B counter reaches 3 (*2 in "OBD SYSTEM OPERATION CHART").
