Idle Air Control Valve - Air Regulator Circuit

COMPONENT DESCRIPTION

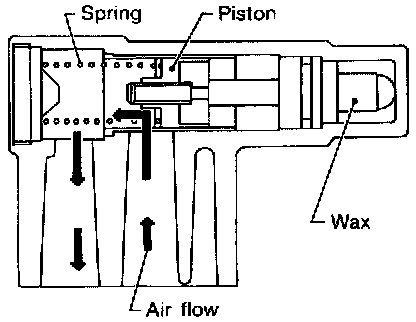

The IACV-air regulator contains wax, a piston and a spring. When the engine coolant is cold, the wax is compressed allowing an air by-pass port to open. This provides for a fast idle setting while the engine heats. As the engine coolant warms, the wax expands, closing the air by-pass port and decreasing the idle speed.

COMPONENT INSPECTION
1. Remove IACV-air regulator unit from engine.

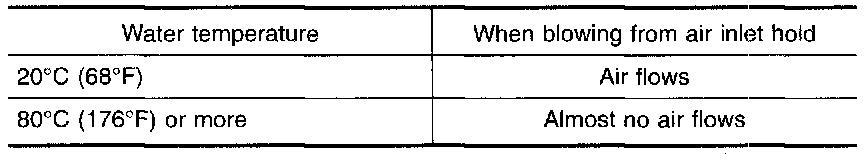

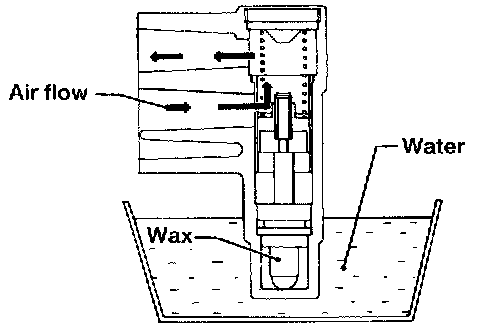

2. Immerse IACV-air regulator unit in cold or hot water as shown, and check air flow




If NG, replace IACV-air regulator unit.
