Diagnostic Procedure 10

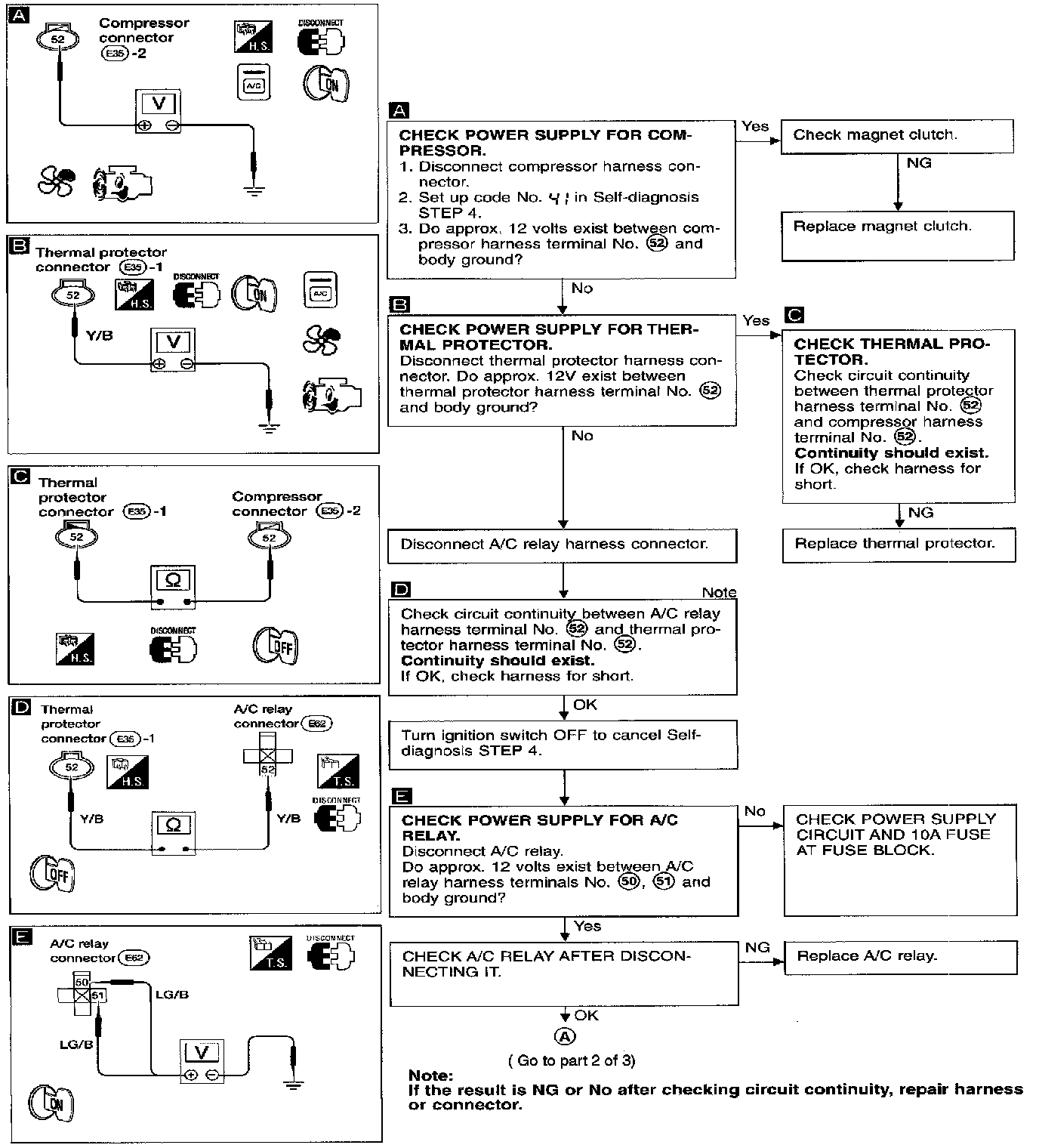

Diagnostic Procedure 10 (Part 1 Of 3):

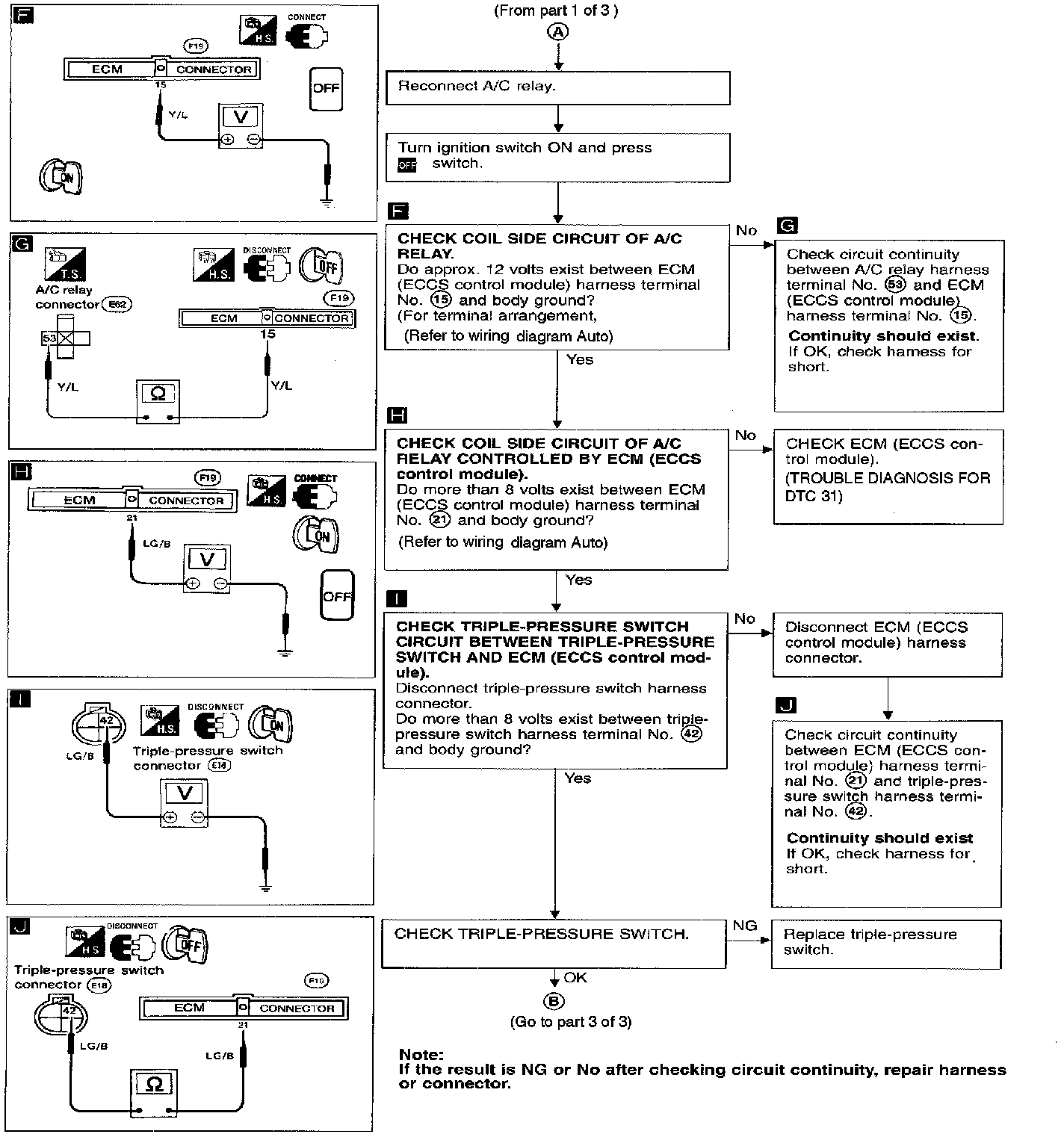

Diagnostic Procedure 10 (Part 2 Of 3):

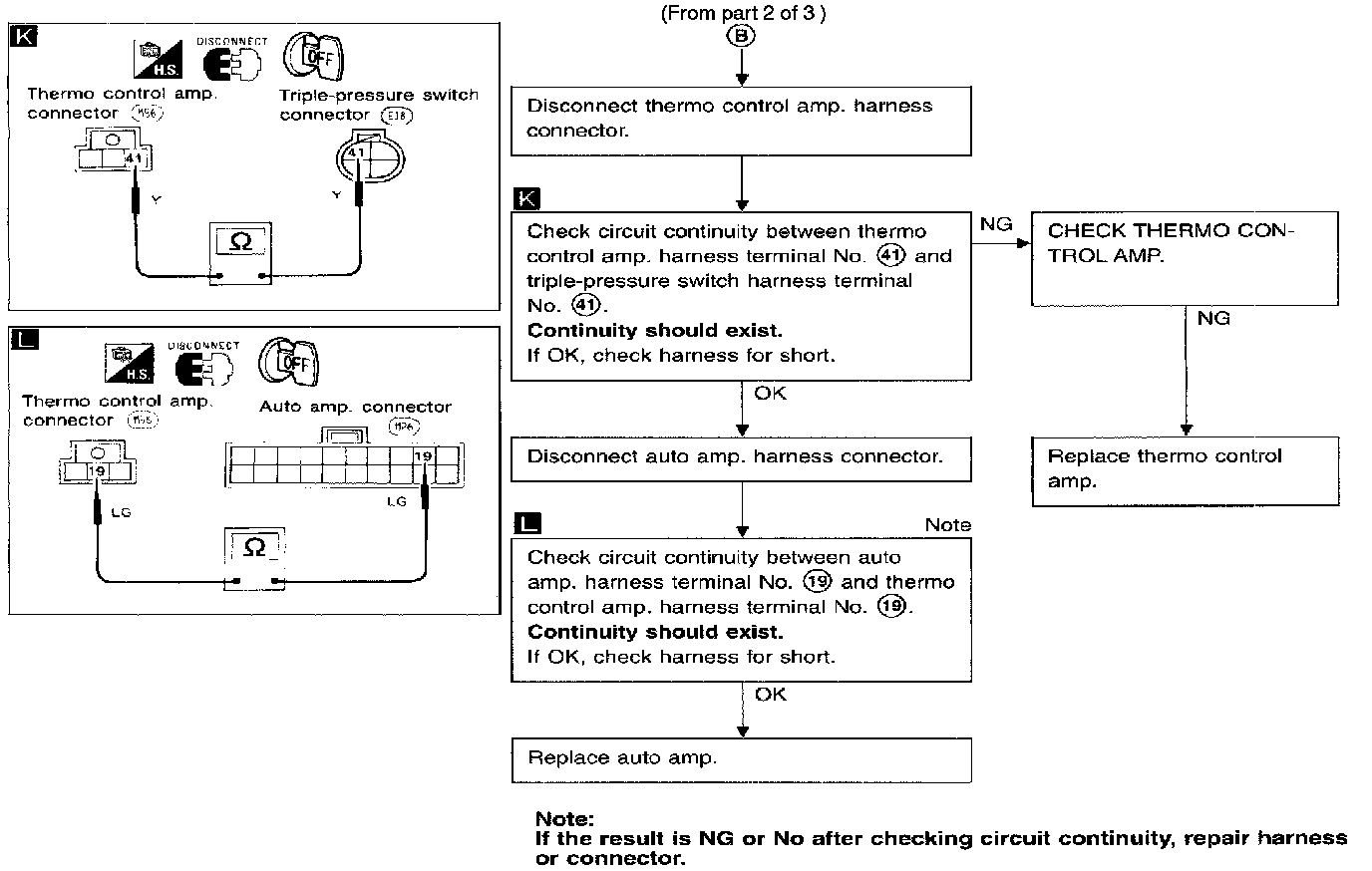

Diagnostic Procedure 10 (Part 3 Of 3):




SYMPTOM: Magnet clutch does not engage after performing Preliminary Check 6.
^ Perform Preliminary Check 6 before referring to the image.
