Component Tests and General Diagnostics

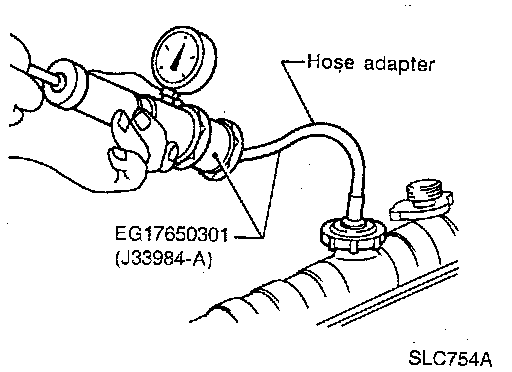

To check for leakage, apply pressure to the cooling system with a tester.
The testing pressure is 157 kPa (23 psi).

CAUTION: Higher pressure than specified may cause radiator damage.
