Home >> Nissan-Datsun >> 1997 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Schematic

Schematic

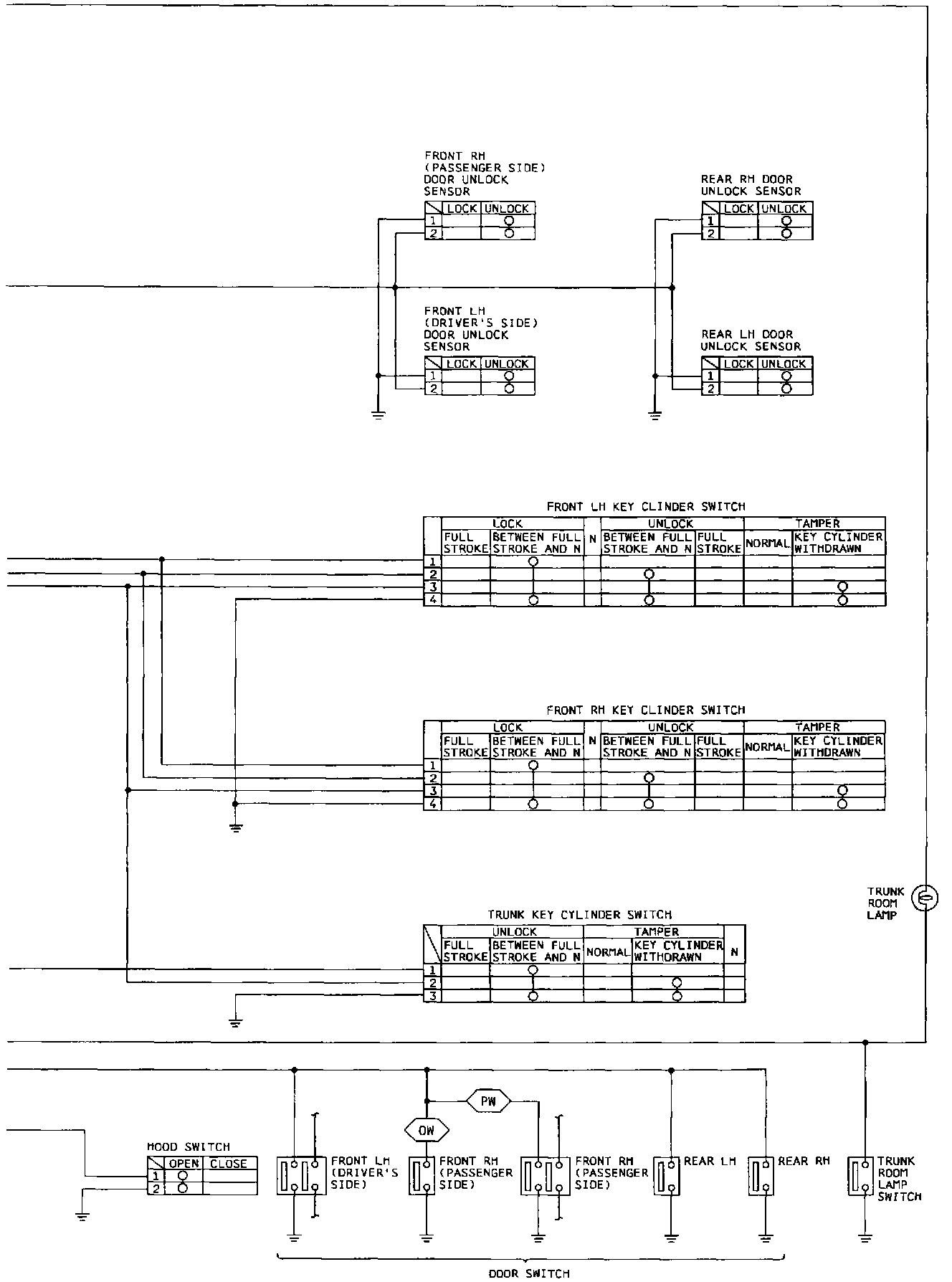

Theft Warning System: Schematic (Part 1 Of 2):



Theft Warning System: Schematic (Part 2 Of 2):
