Home >> Nissan-Datsun >> 1997 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Diagnostic Procedure 3 (ASCD Hold Relay Circuit Check)

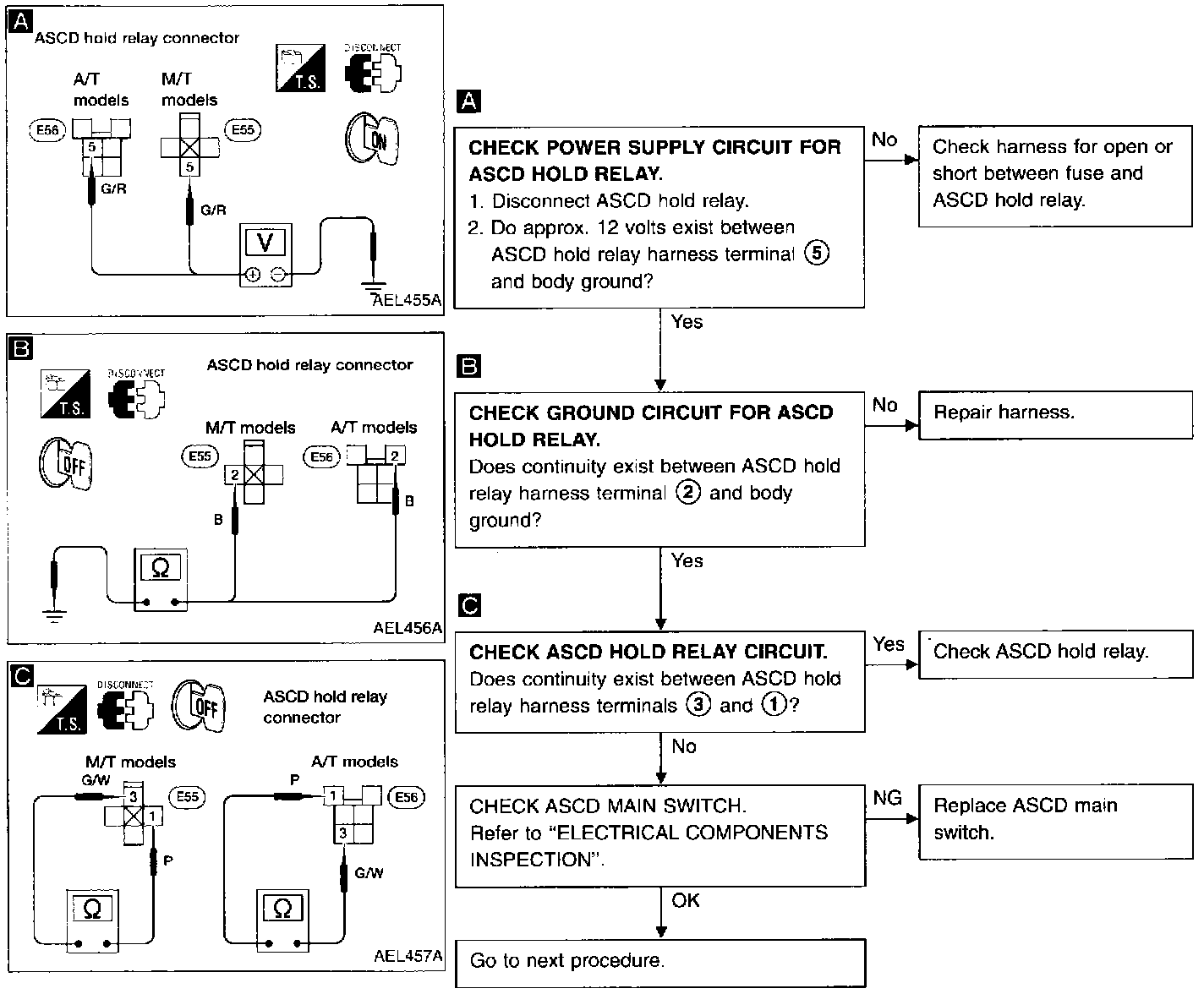

Diagnostic Procedure 3 (ASCD Hold Relay Circuit Check)

Diagnostic Procedure 3 (Automatic Speed Control Device (ASCD) Hold Relay Circuit Check):
