ASCD Steering Switch

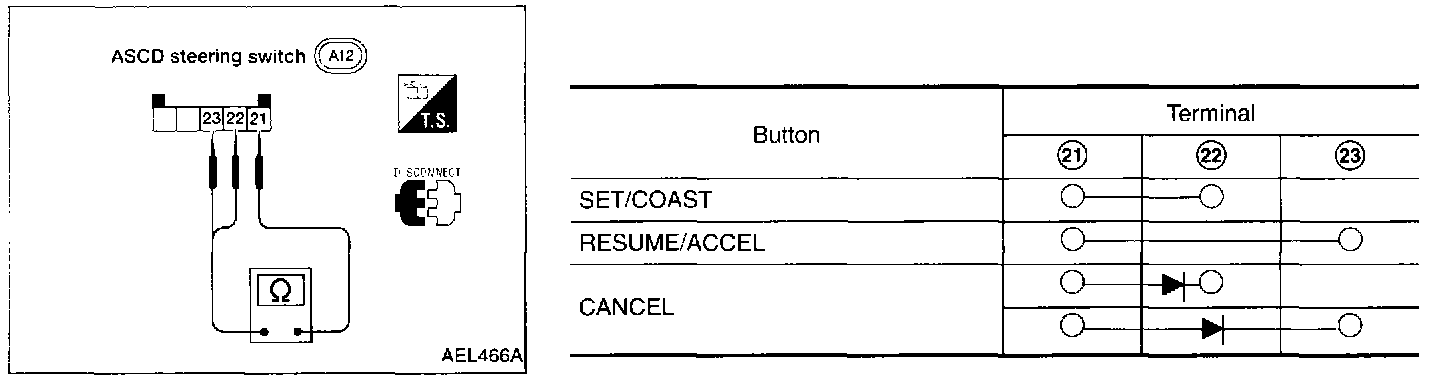

ASCD Steering Switch:





Check continuity between terminals by pushing each button.
