Wheel Sensor
Wheel Sensor

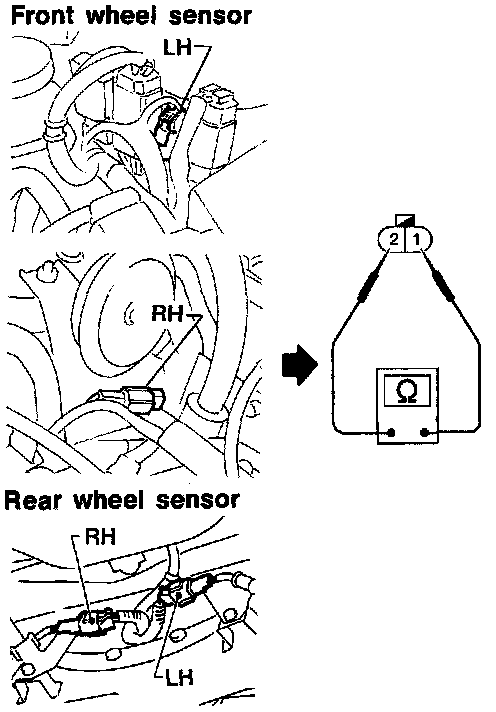

Wheel Sensor Inspection:
^
Ensure resistance between terminals No. 1 and No. 2 is 1000-1250 ohms.
