Home >> Nissan-Datsun >> 1997 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnostic Procedure 6

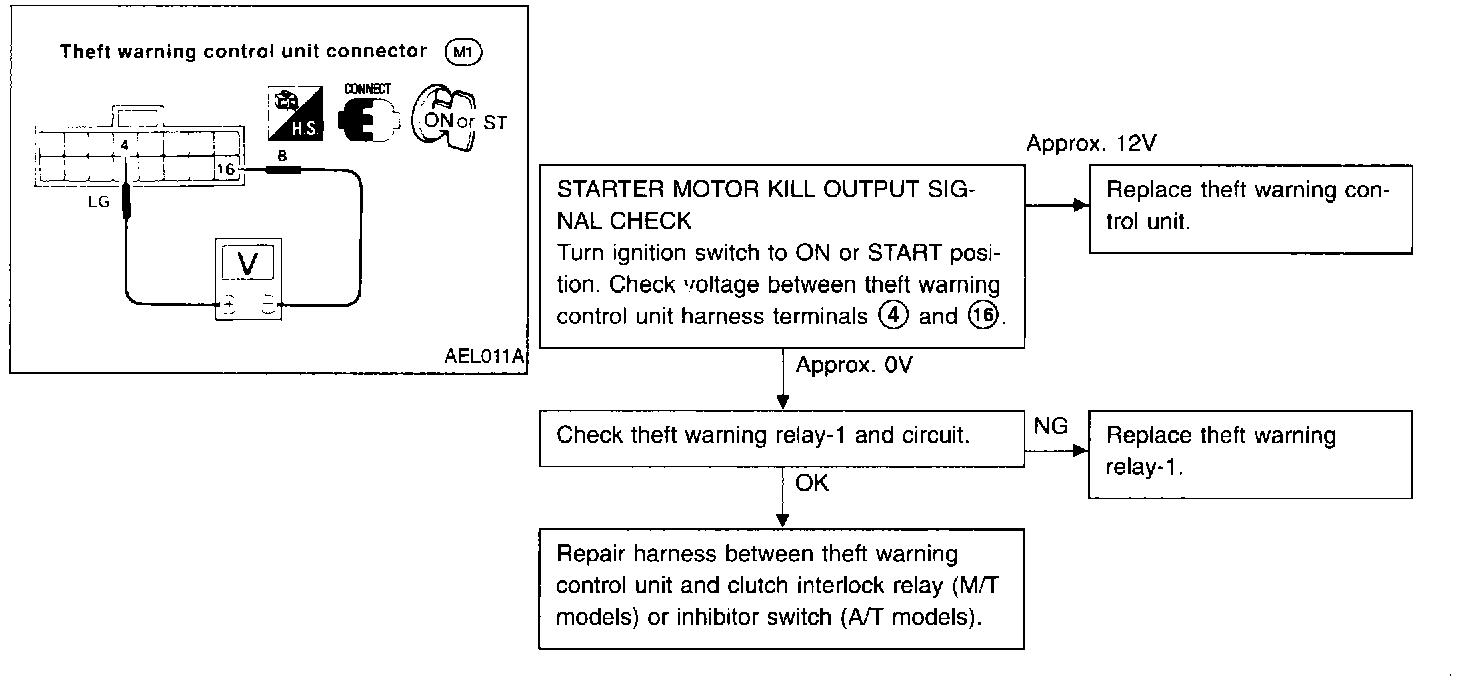

Diagnostic Procedure 6

Diagnostic Procedure 6:





SYMPTOM: STARTER MOTOR can be operated. (Starter killed phase)
