Intermittent Wiper Does Not Operate
Intermittent Wiper Does Not Operate

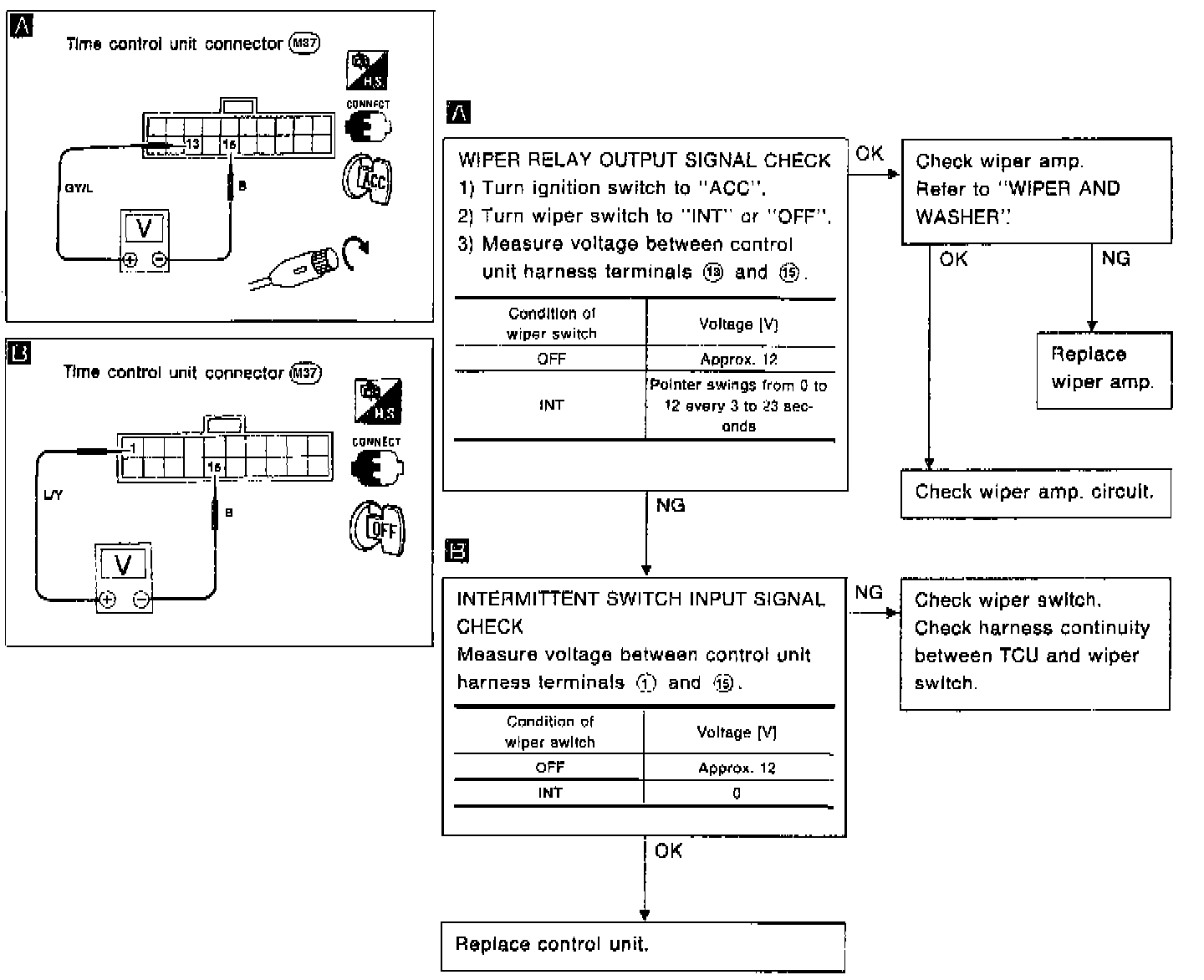

Fig. 1 Diagnostic Procedure 1: Intermittent Wiper Does Not Operate:
Refer to
Fig. 1
for system diagnosis and testing.
