EL-WIPER
EL-WIPER

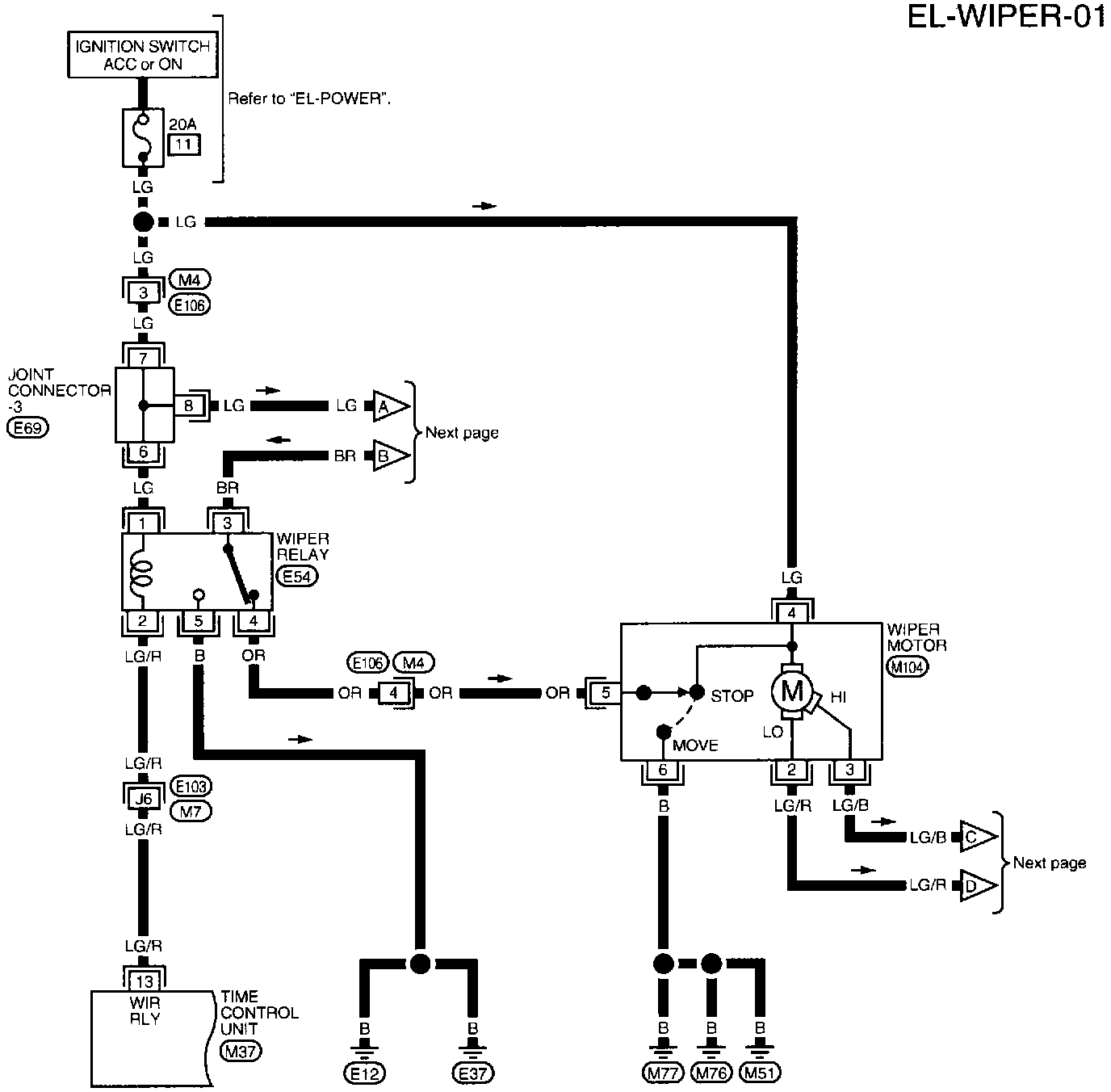

EL-WIPER-01 Front Wiper And Washer Wiring Diagram (Part 1 Of 2):

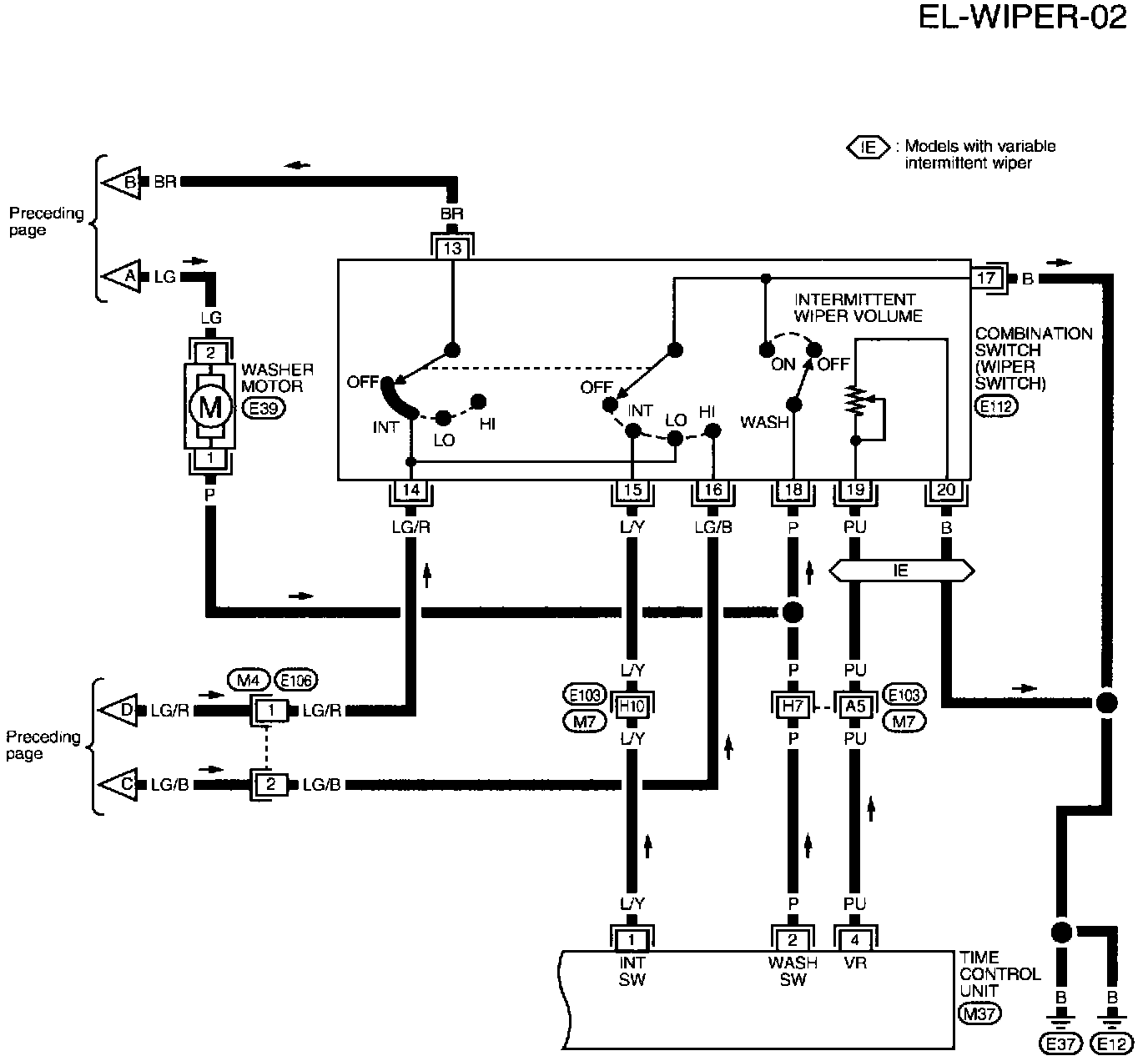

EL-WIPER-02 Front Wiper And Washer Wiring Diagram (Part 2 Of 2):
