Table of Contents

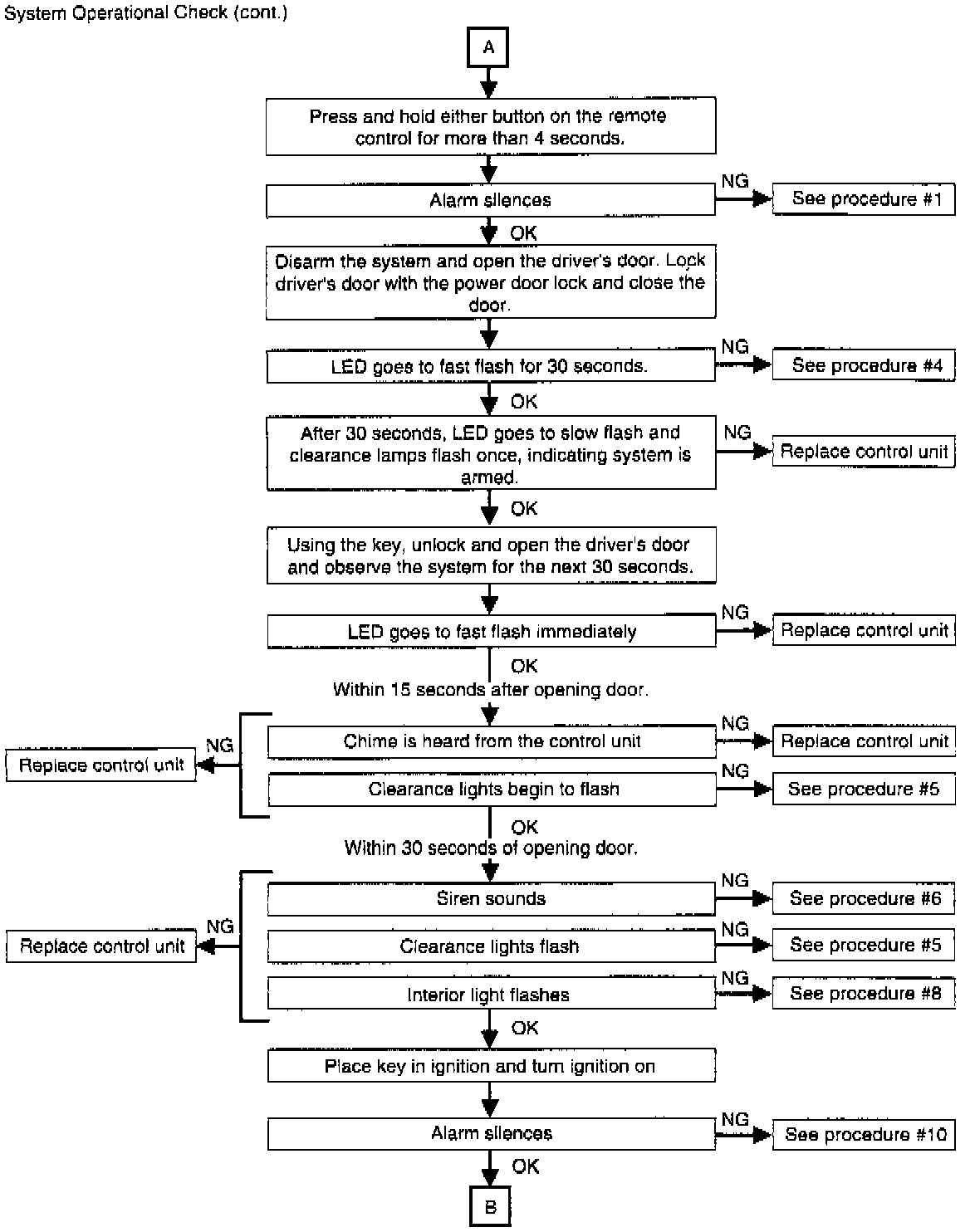

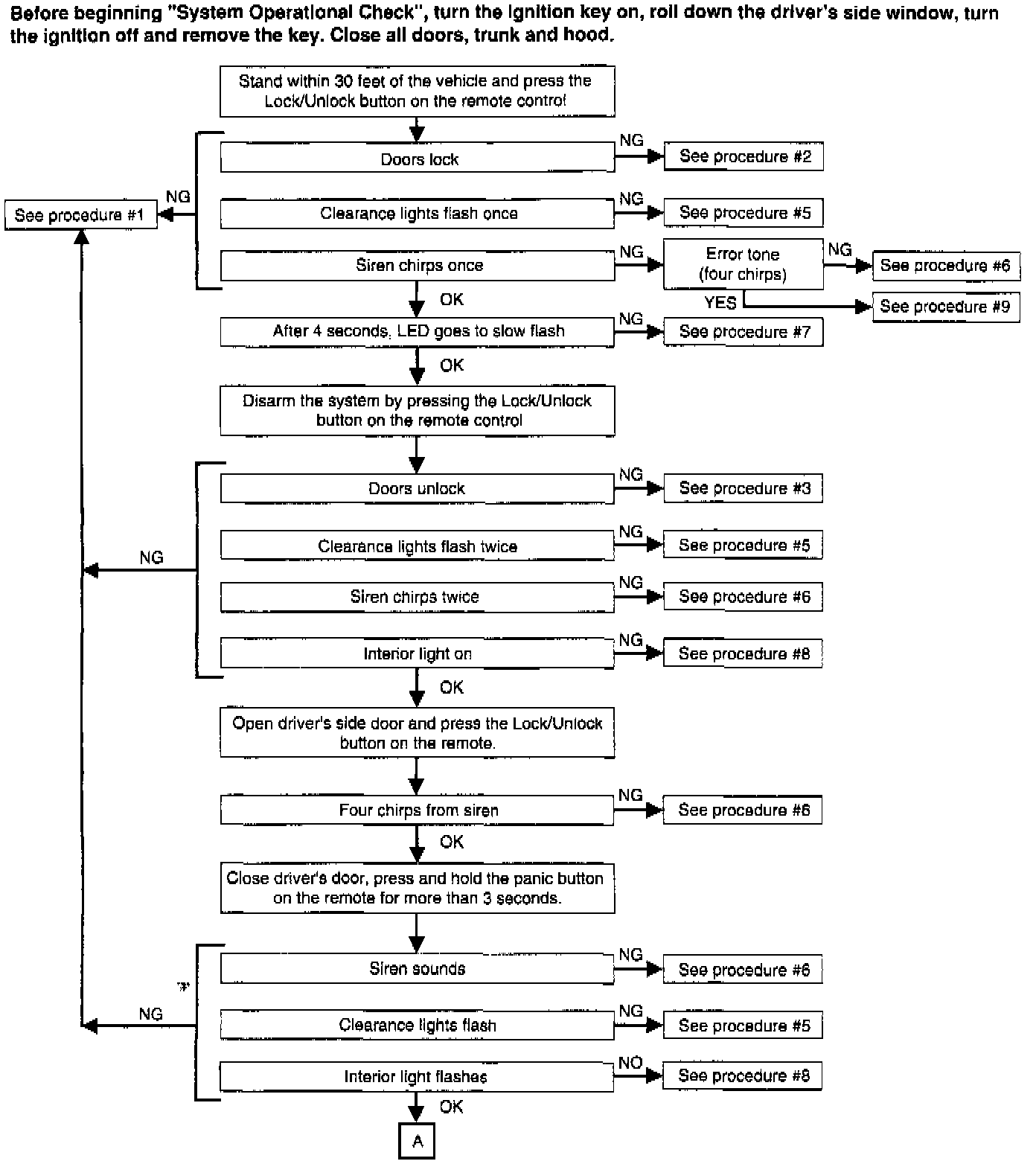

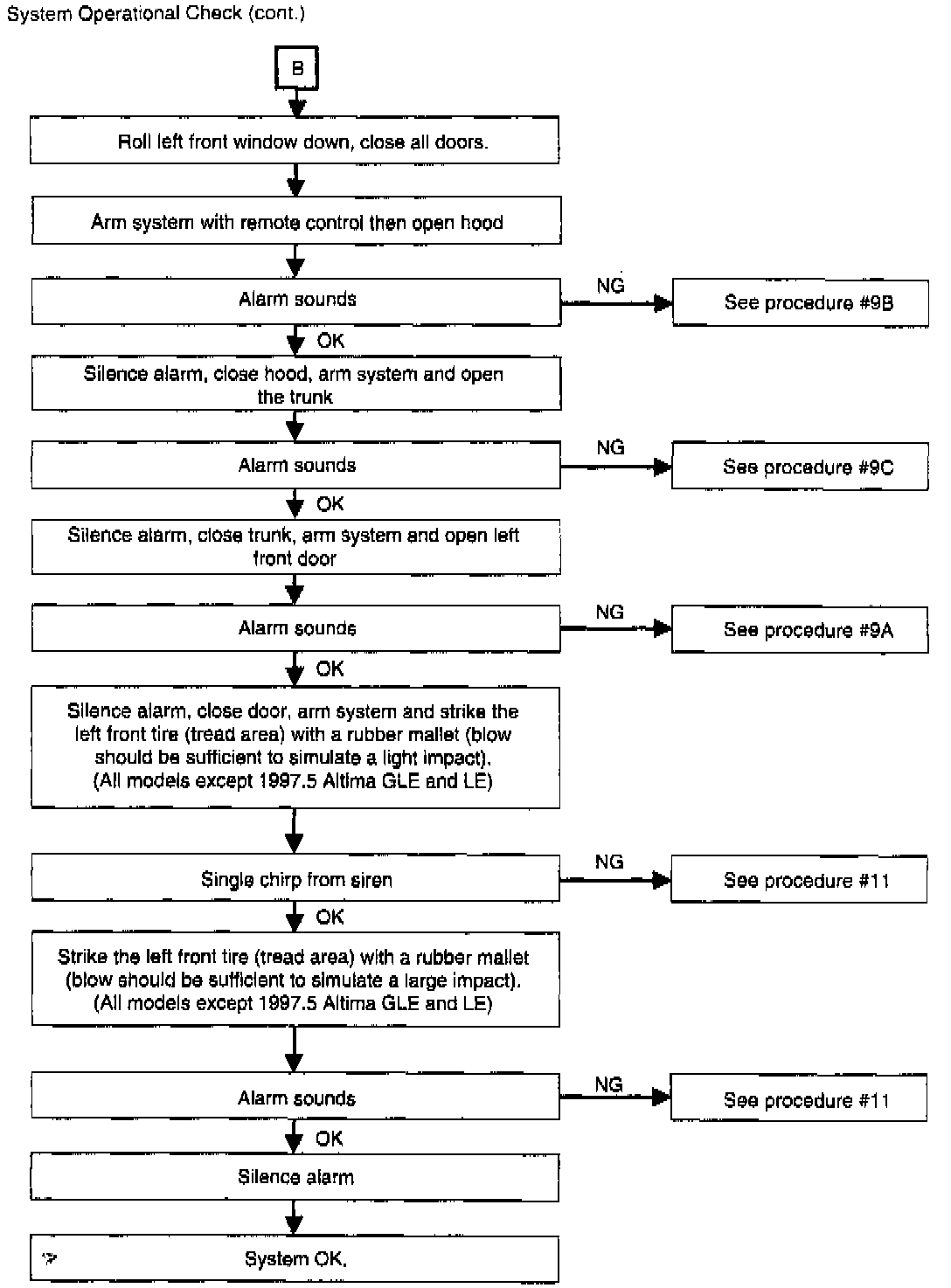

System Operational Check





Diagnostic Procedure # 1

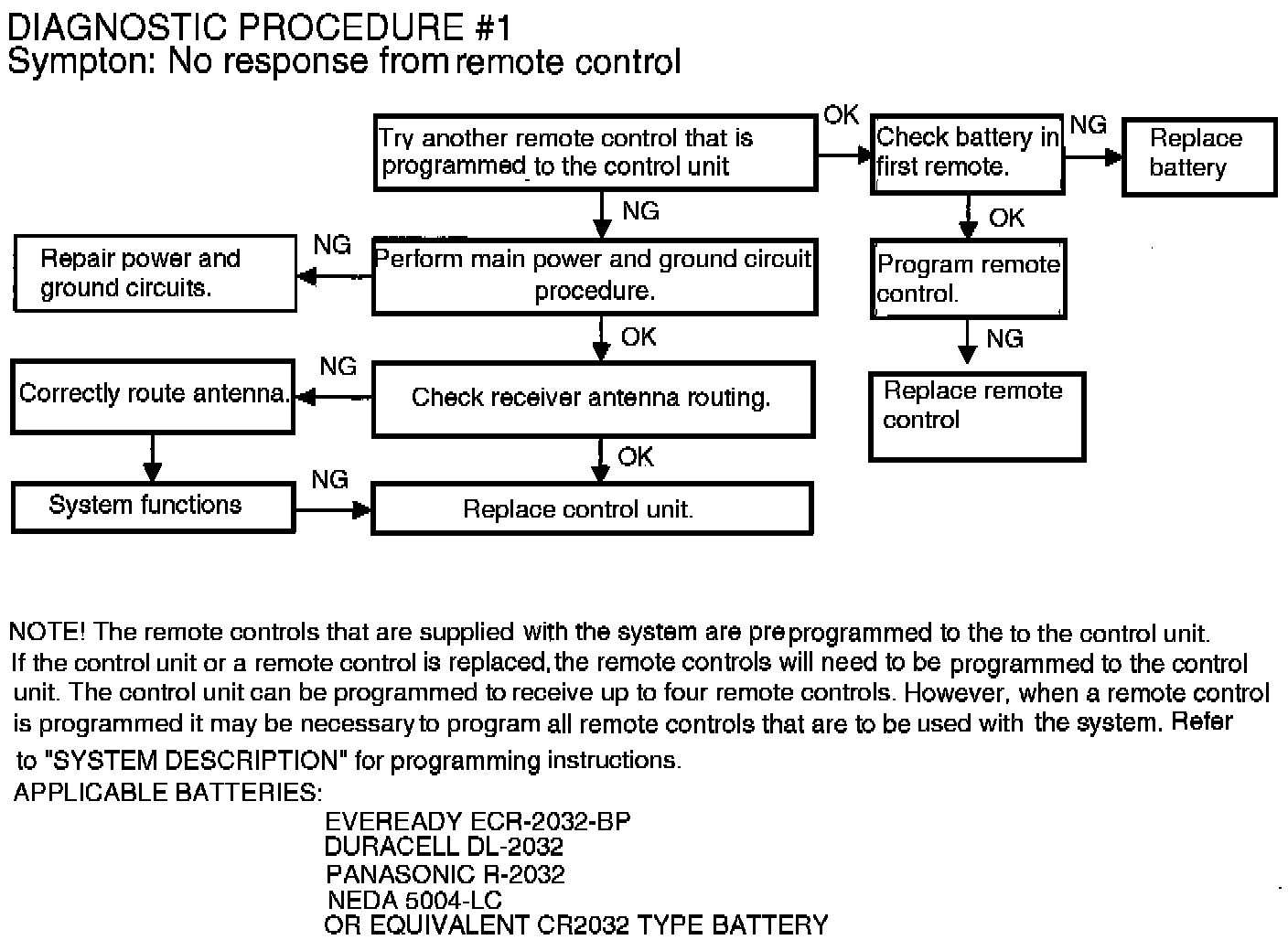

No response from remote control

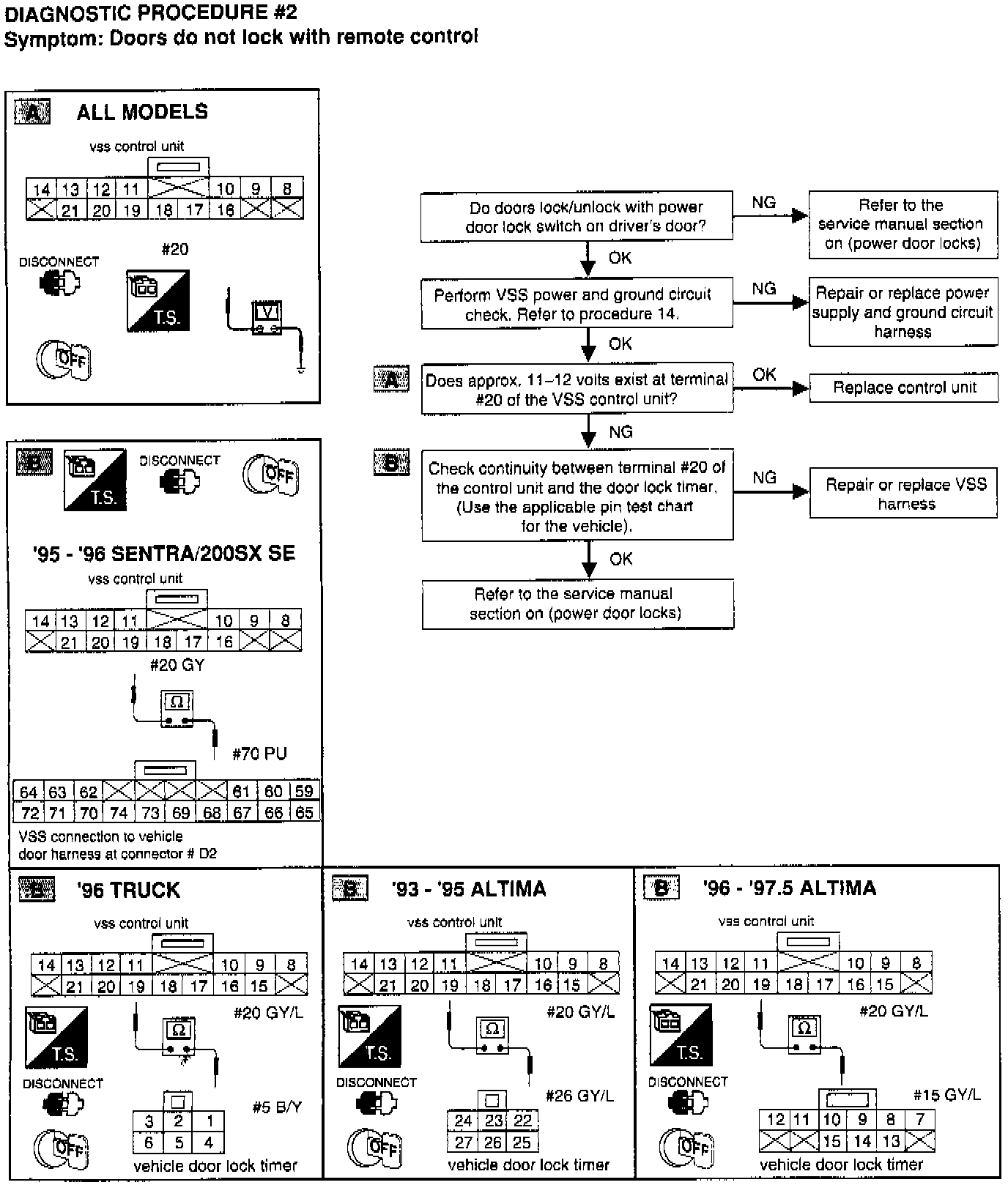

Diagnostic Procedure # 2
Doors do not lock with remote control

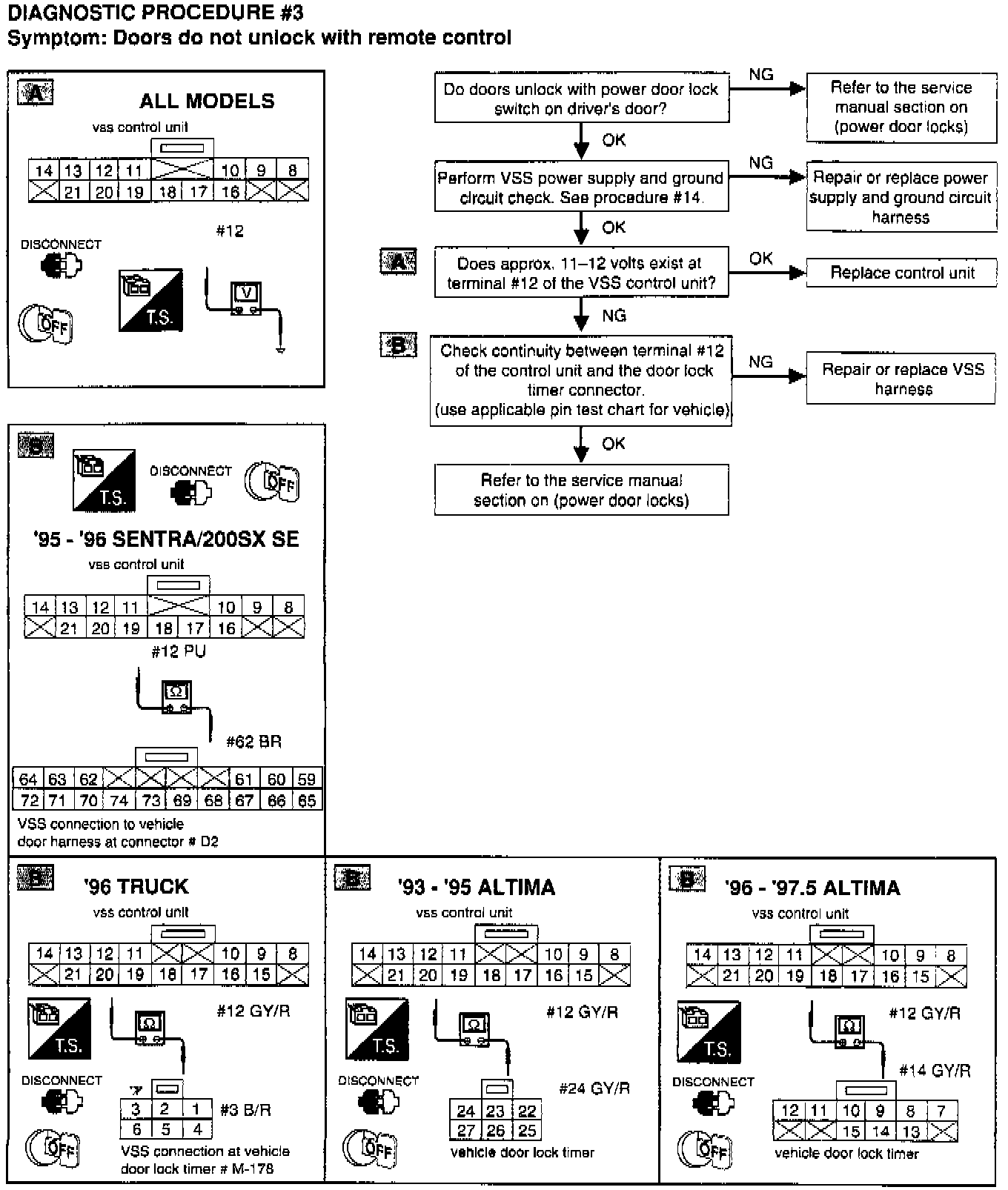

Diagnostic Procedure # 3
Doors do not unlock with remote control

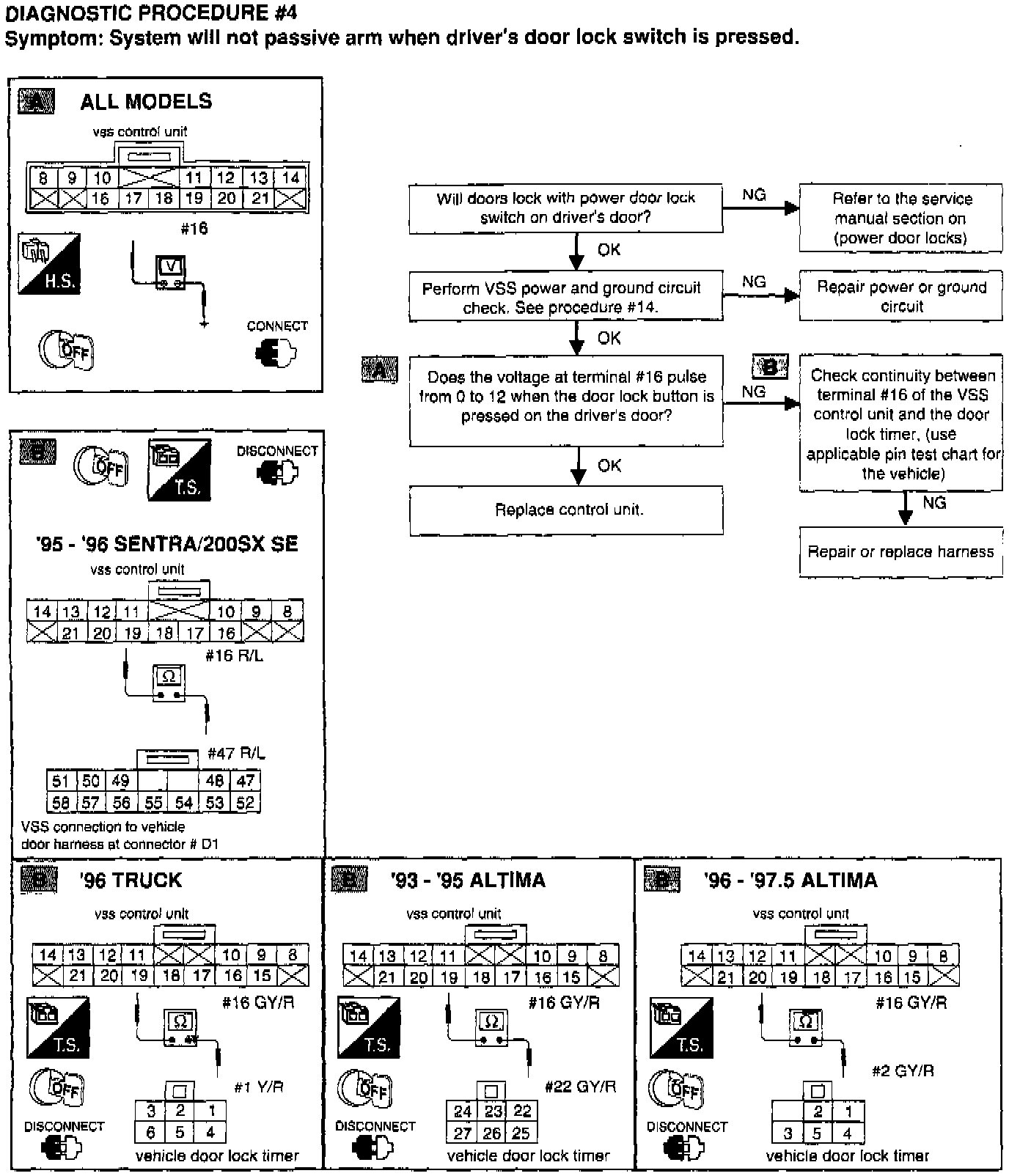

Diagnostic Procedure # 4
System will not passive arm





Diagnostic Procedure # 5

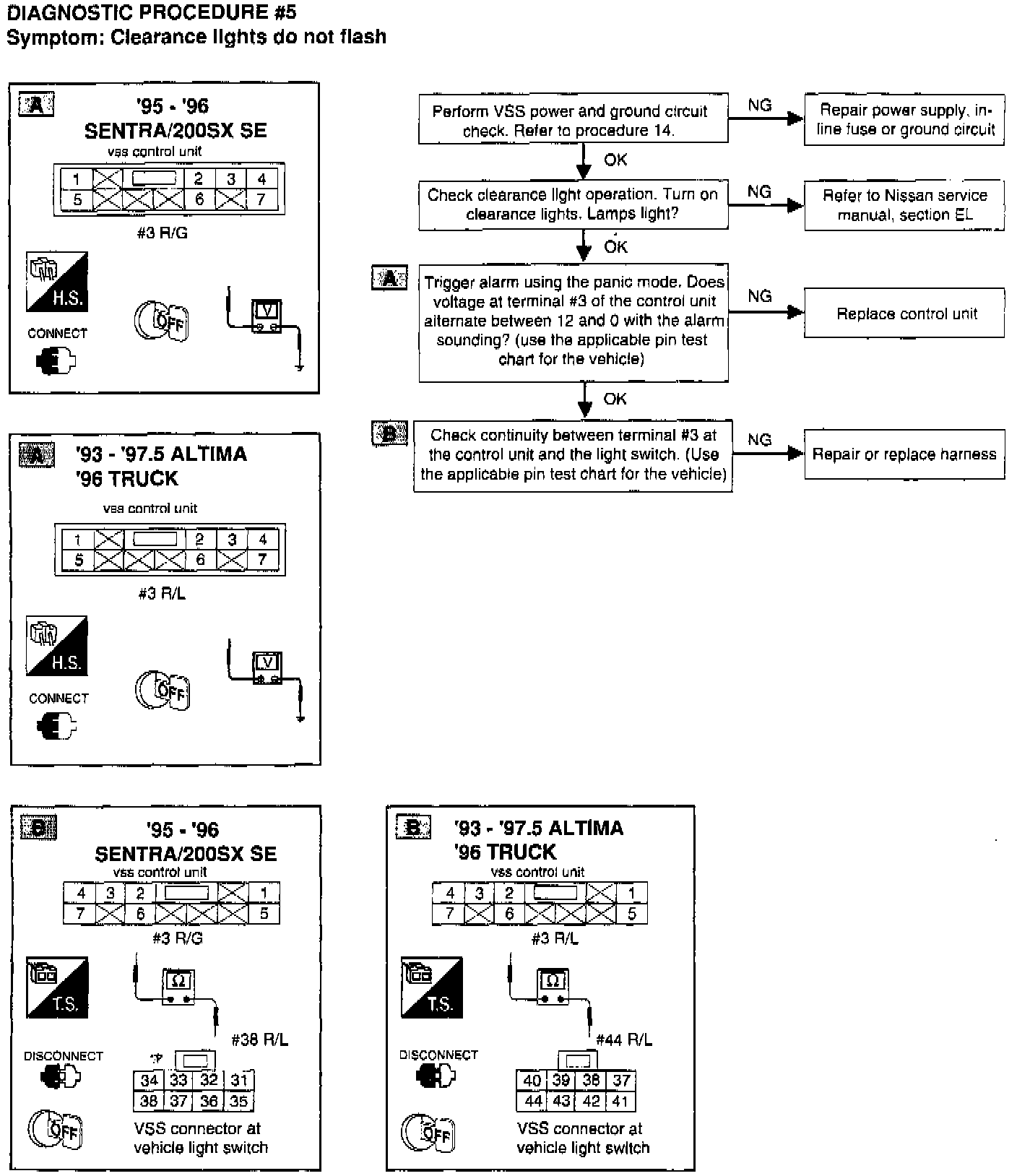

Clearance lights do not flash

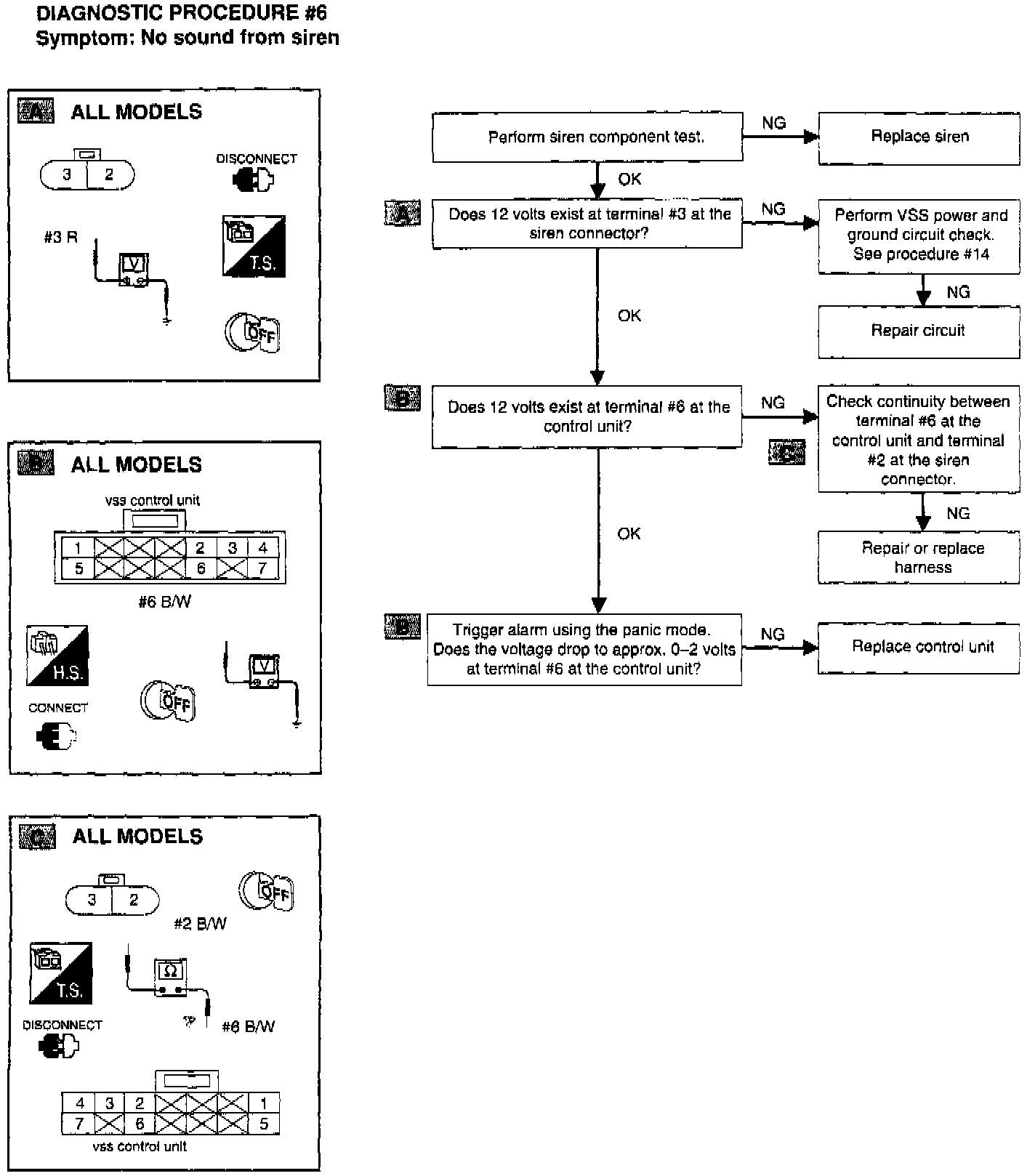

Diagnostic Procedure # 6
No sound from siren





Diagnostic Procedure # 7
Console switch LED will not flash





Diagnostic Procedure # 8

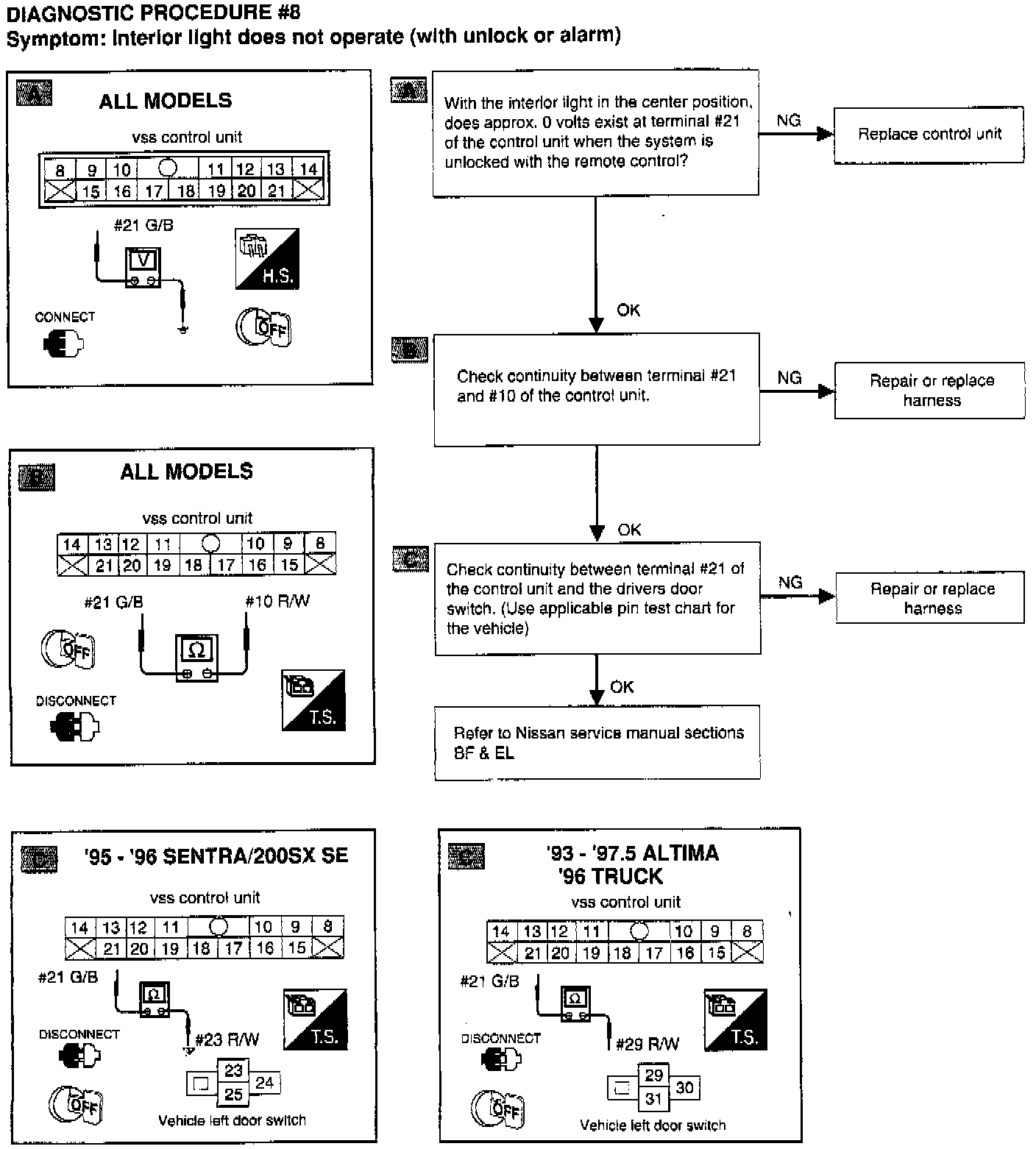

Interior light does not operate (with unlock or alarm)

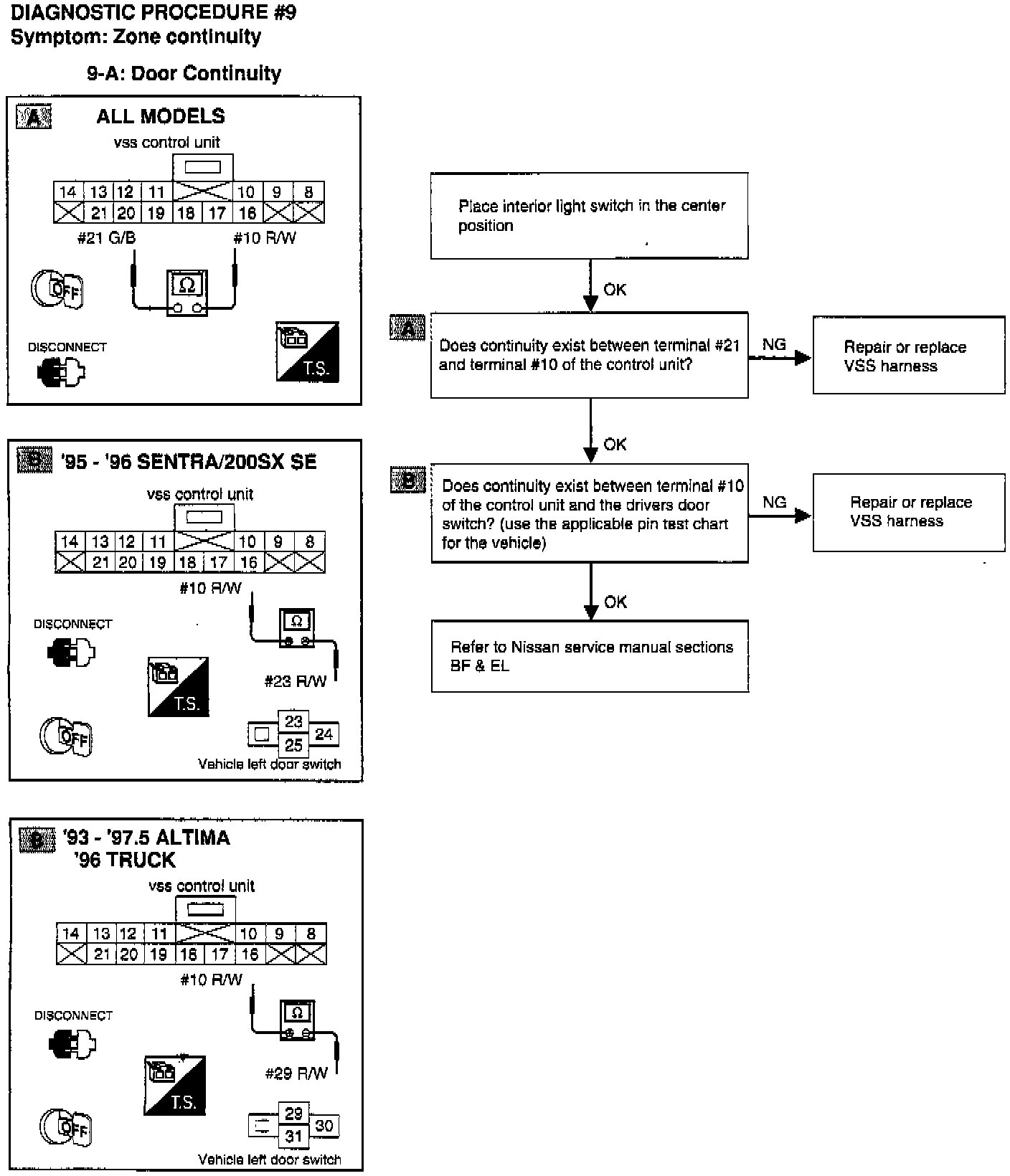

Diagnostic Procedure # 9
Zone continuity (door)

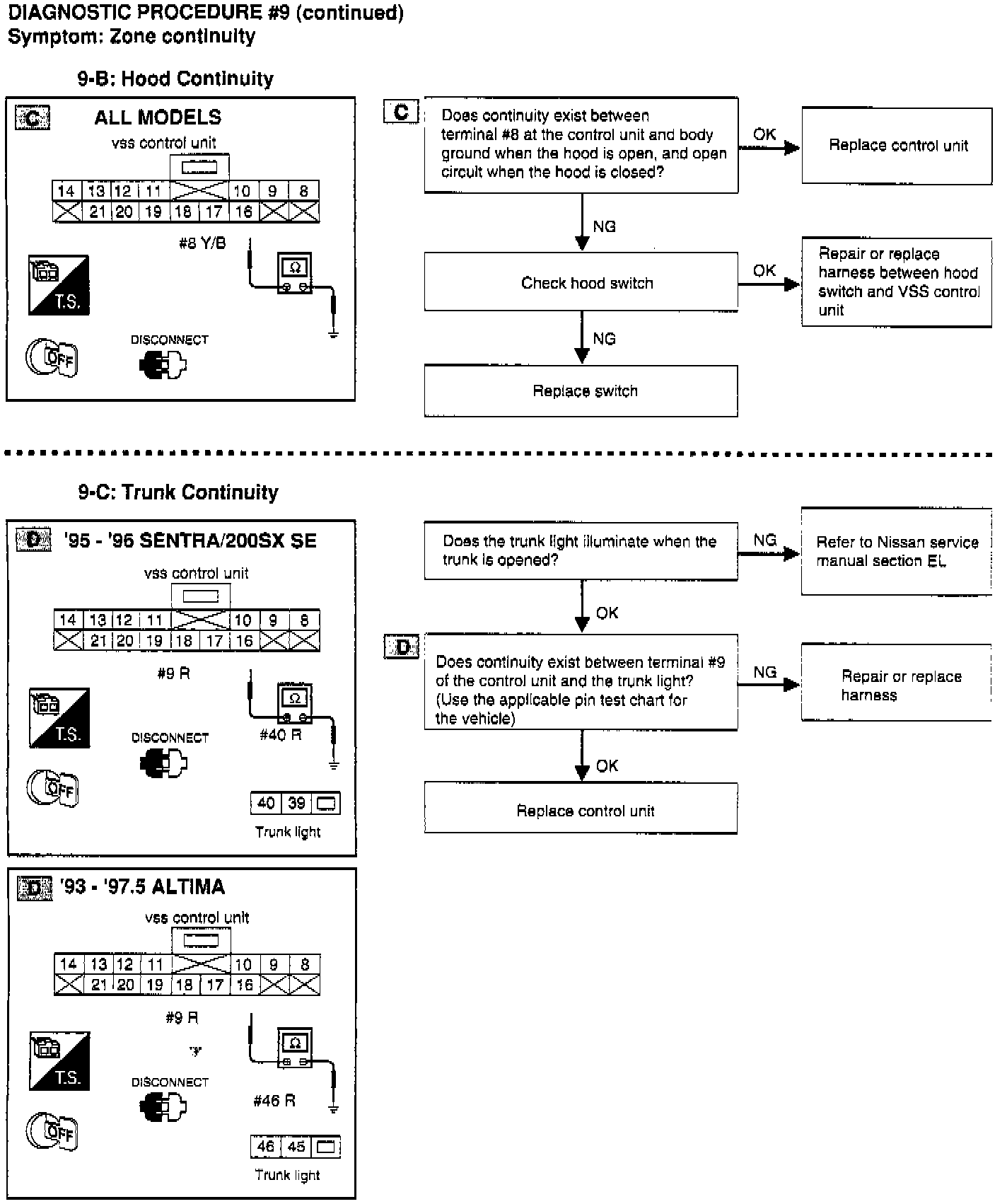

Zone continuity (hood, trunk)

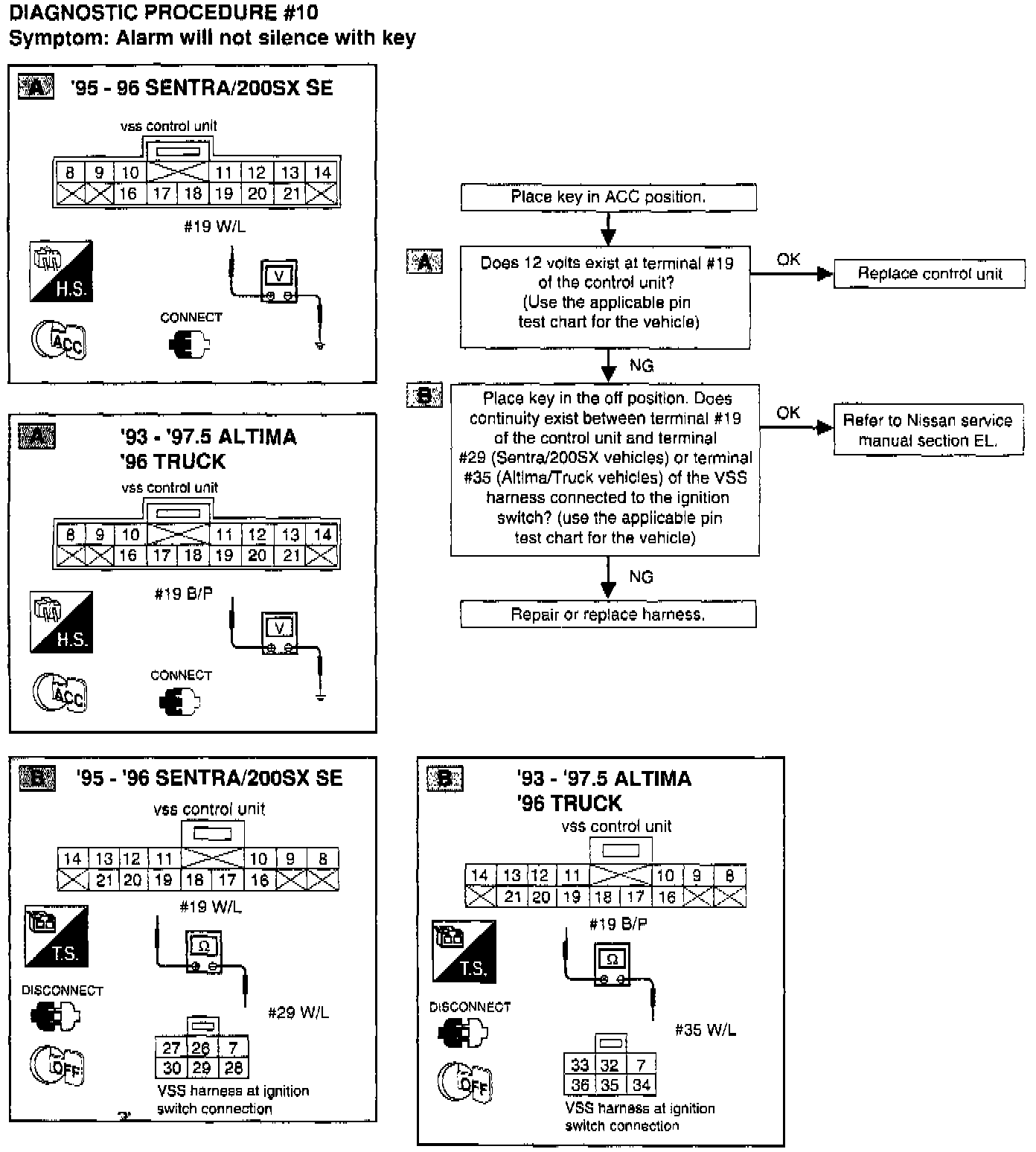

Diagnostic Procedure # 10
Alarm will not silence with key





Diagnostic Procedure # 11

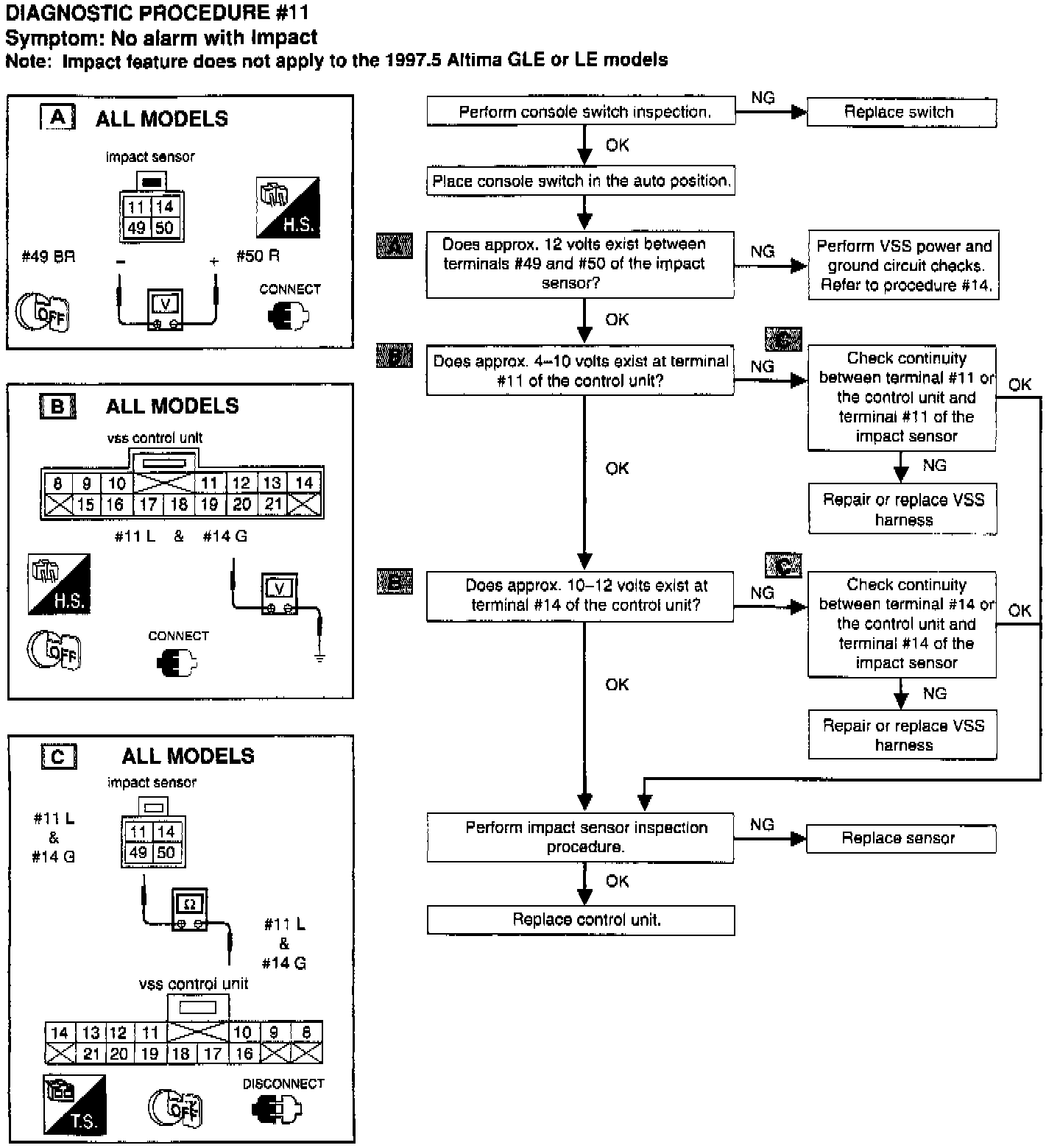

No alarm with impact





Diagnostic Procedure # 12

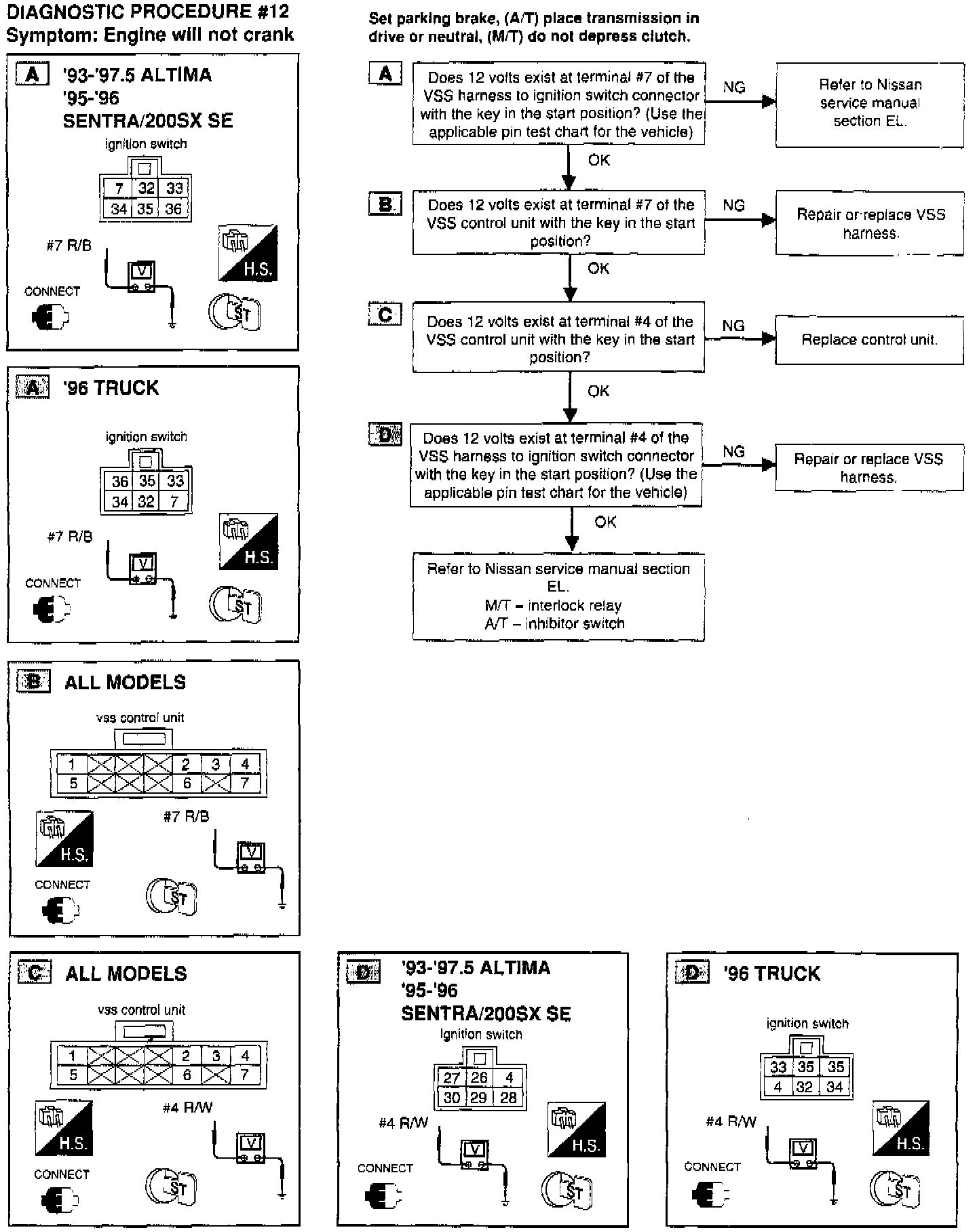

Engine will not crank





Diagnostic Procedure # 13

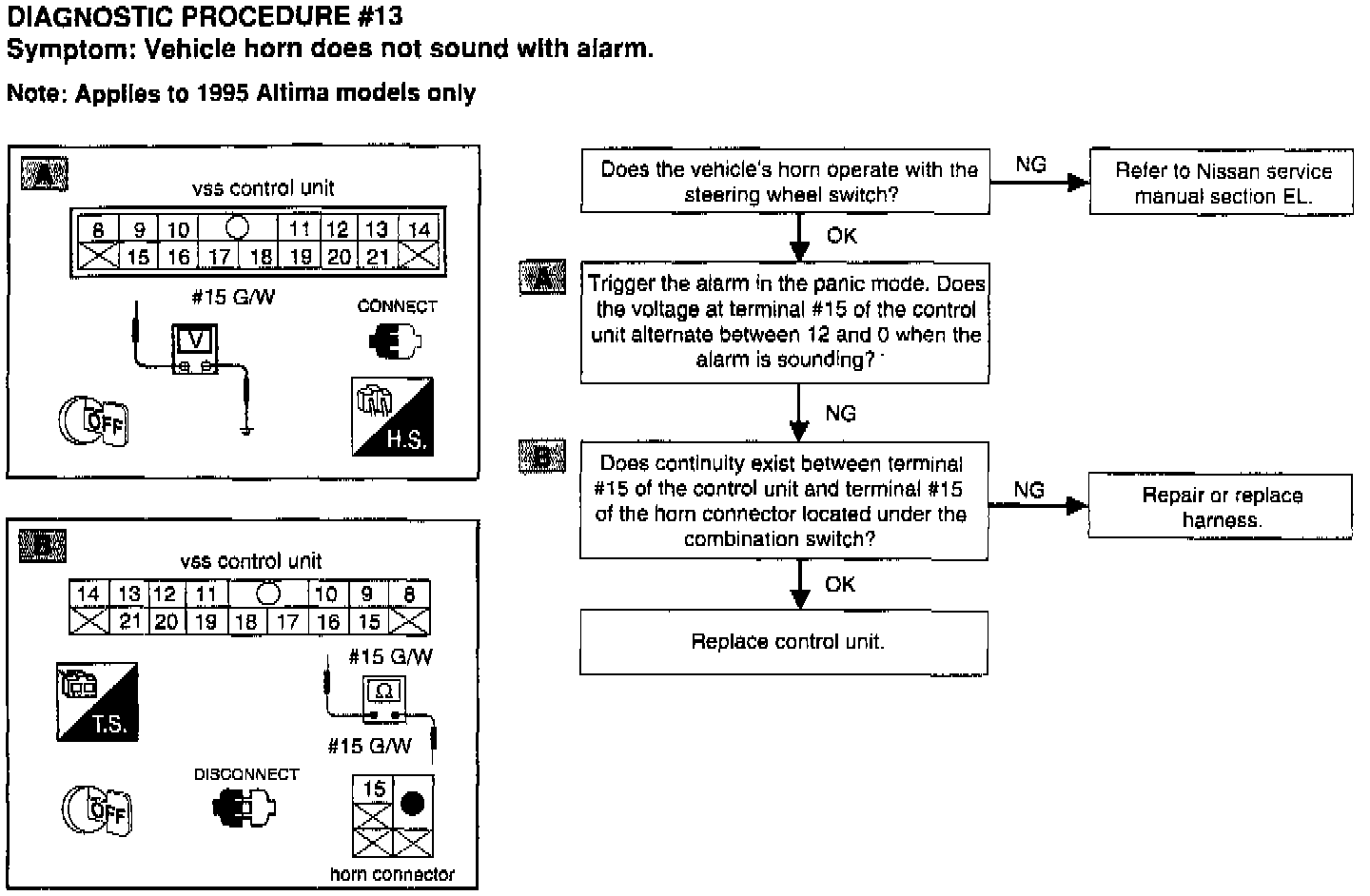

Vehicle horn does not sound with siren

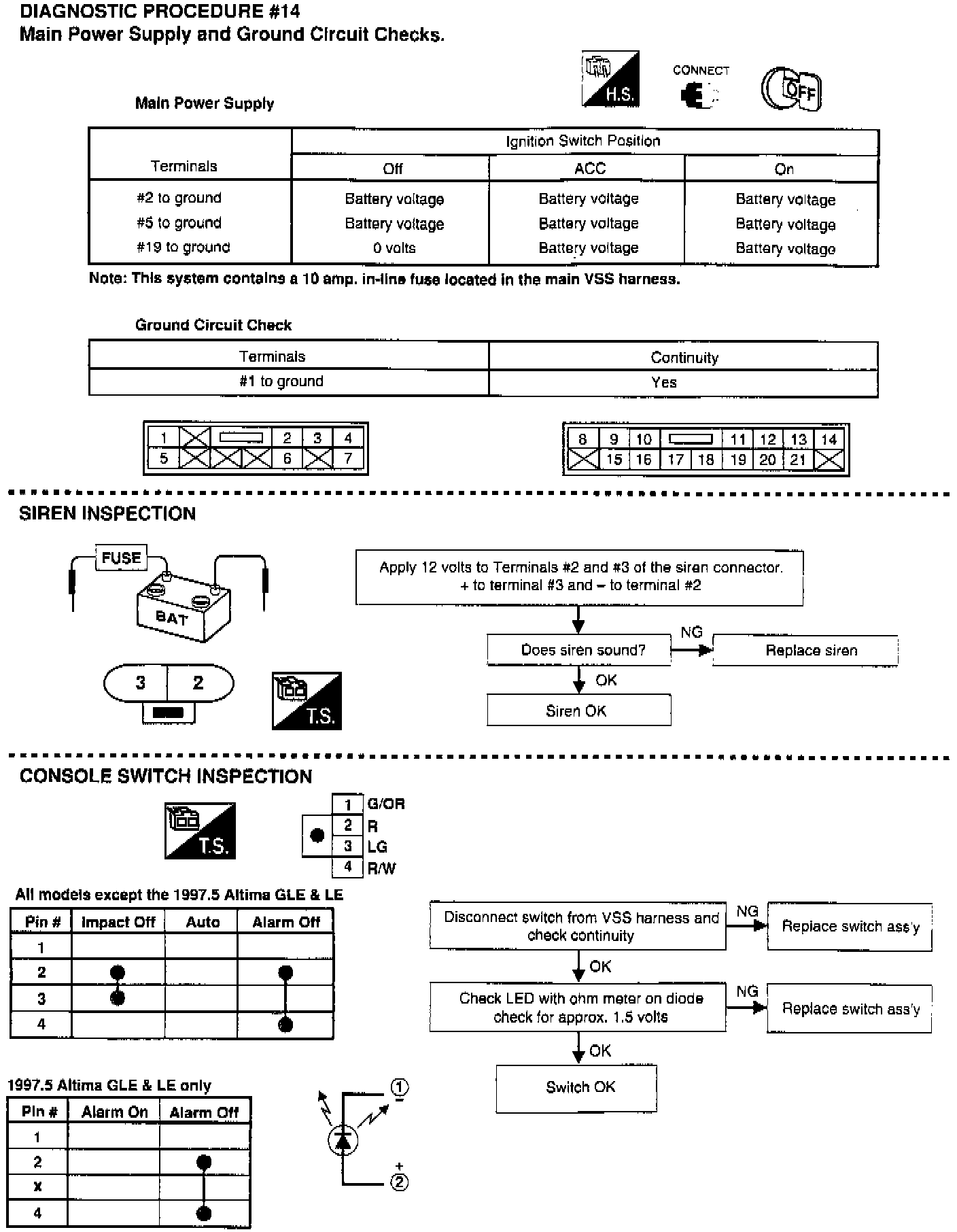

Diagnostic Procedure # 14
Main Power Supply and Ground Circuit Check
Siren Check
Console Switch Inspection
Impact Sensor Inspection

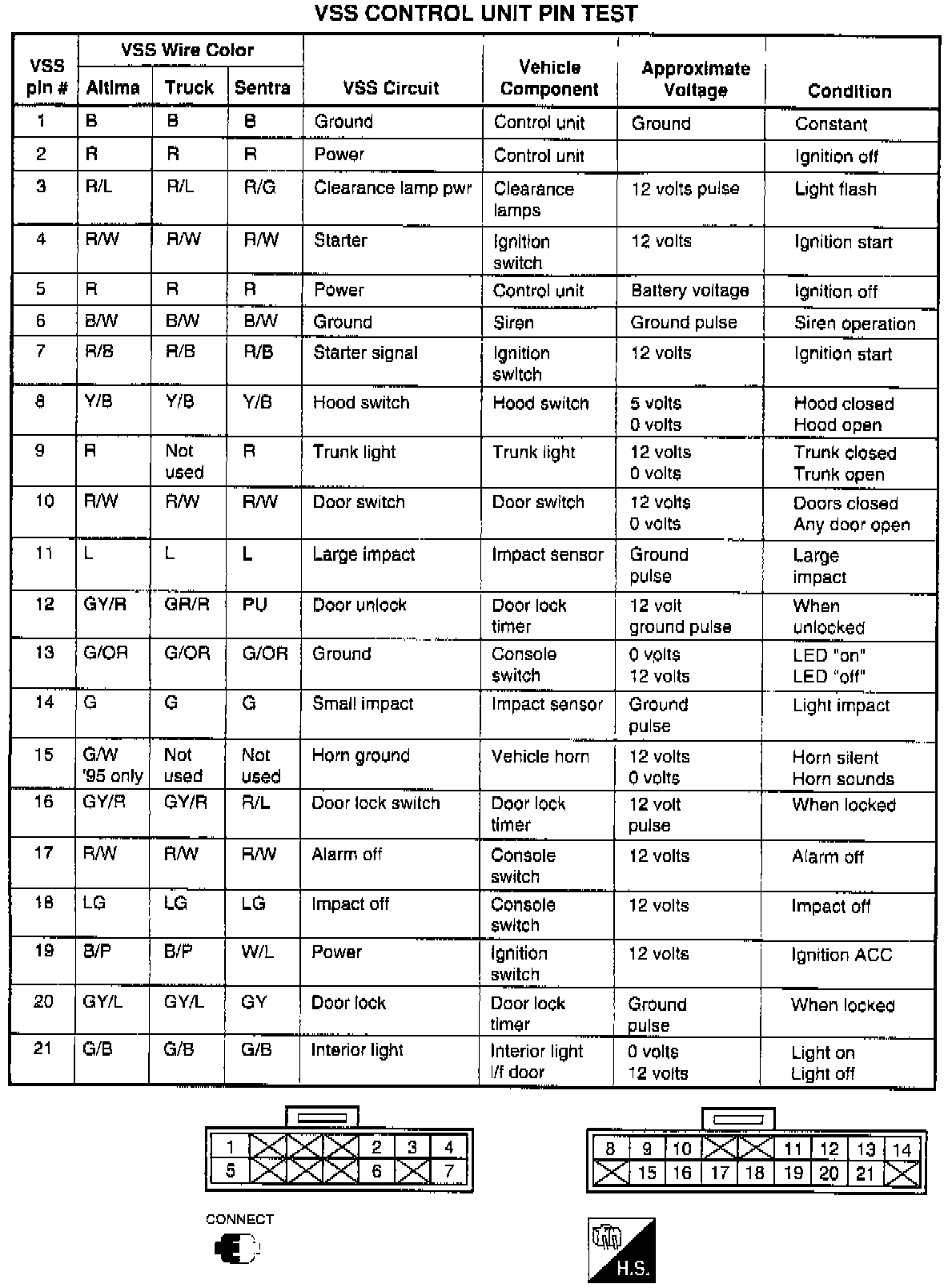

System Pin Test

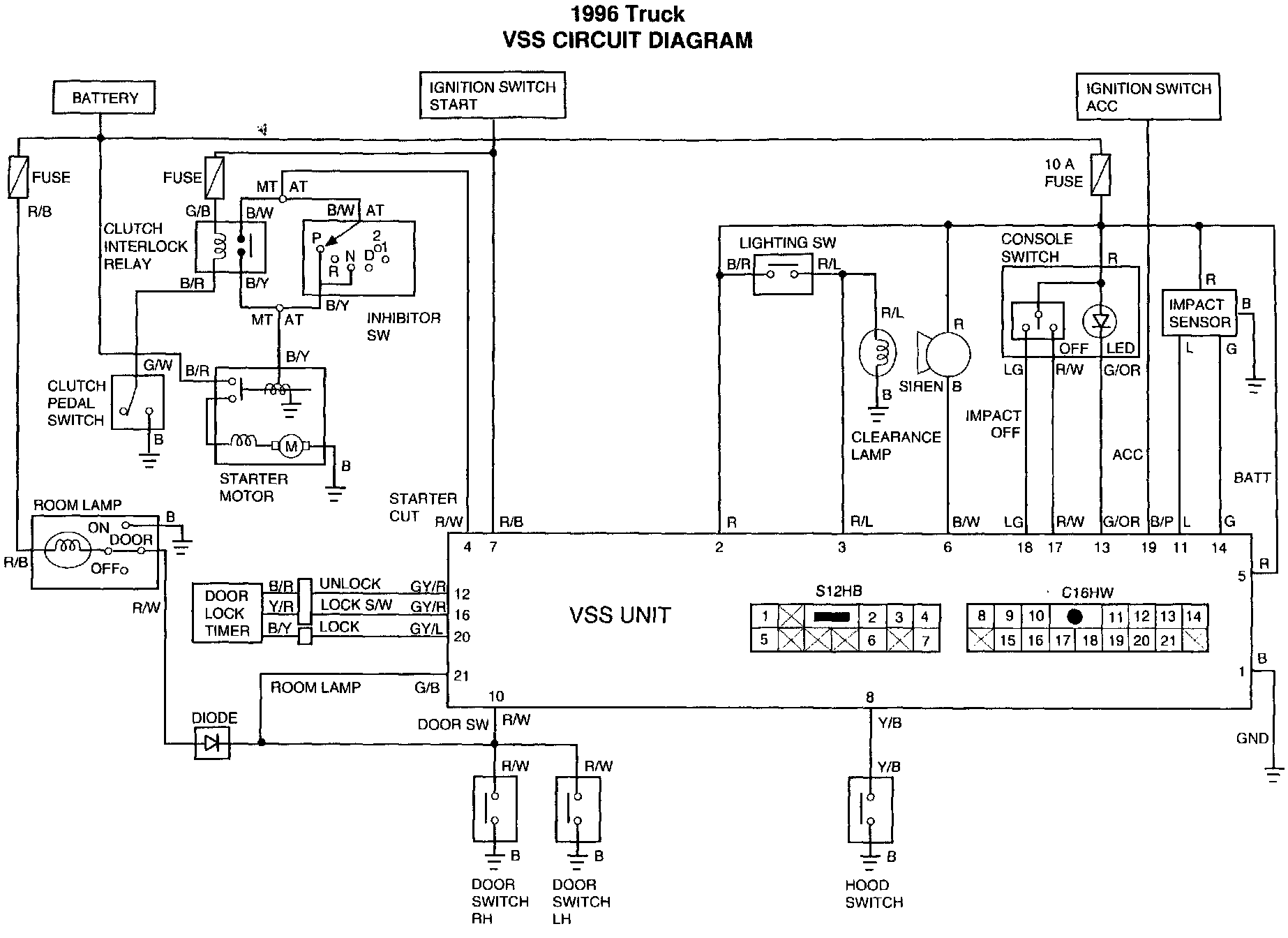

Circuit Diagram

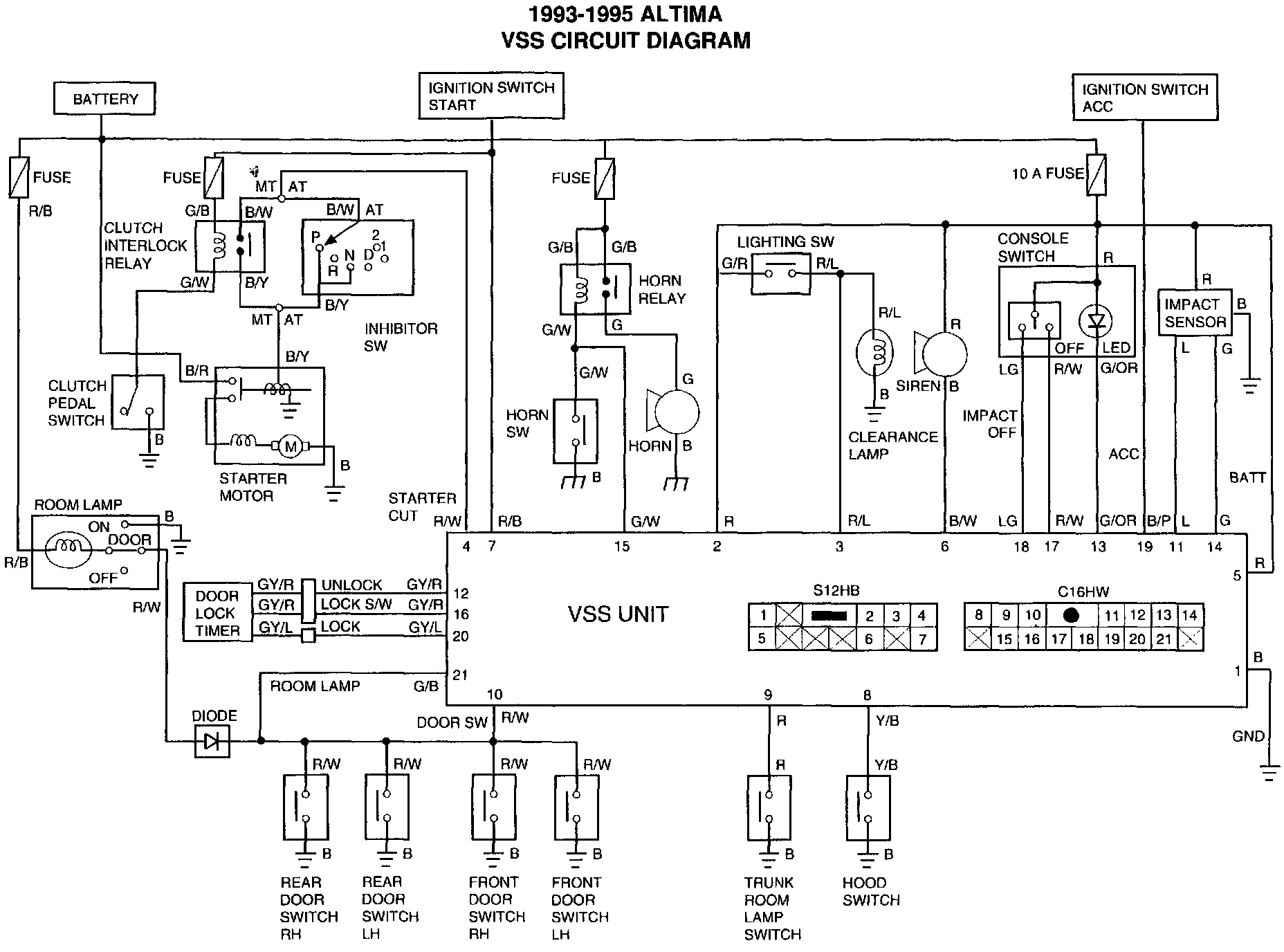

'93 - '95 Altima

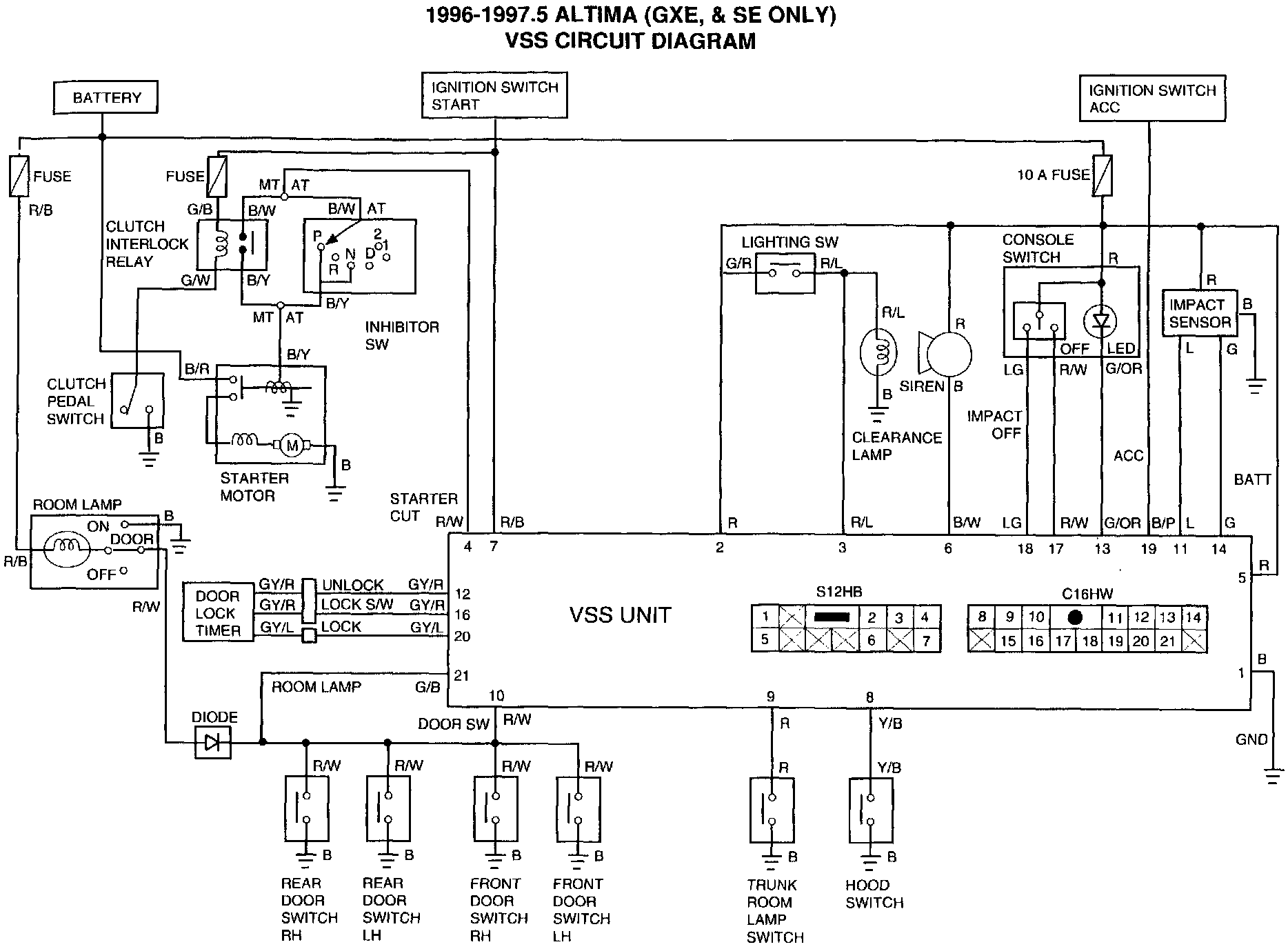

'96 - '97.5 Altima GXE, SE only

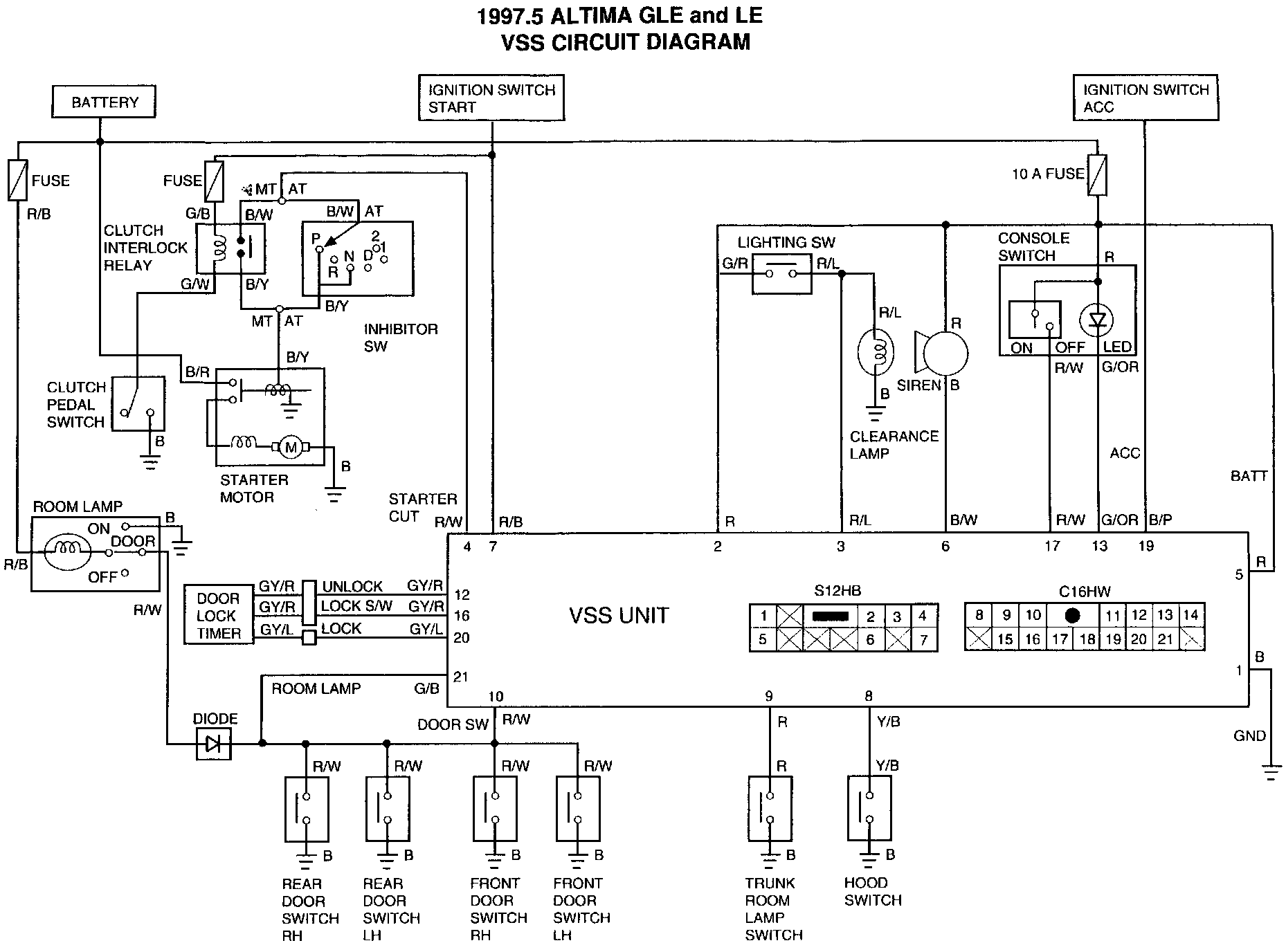

'97.5 Altima GLE, LE only

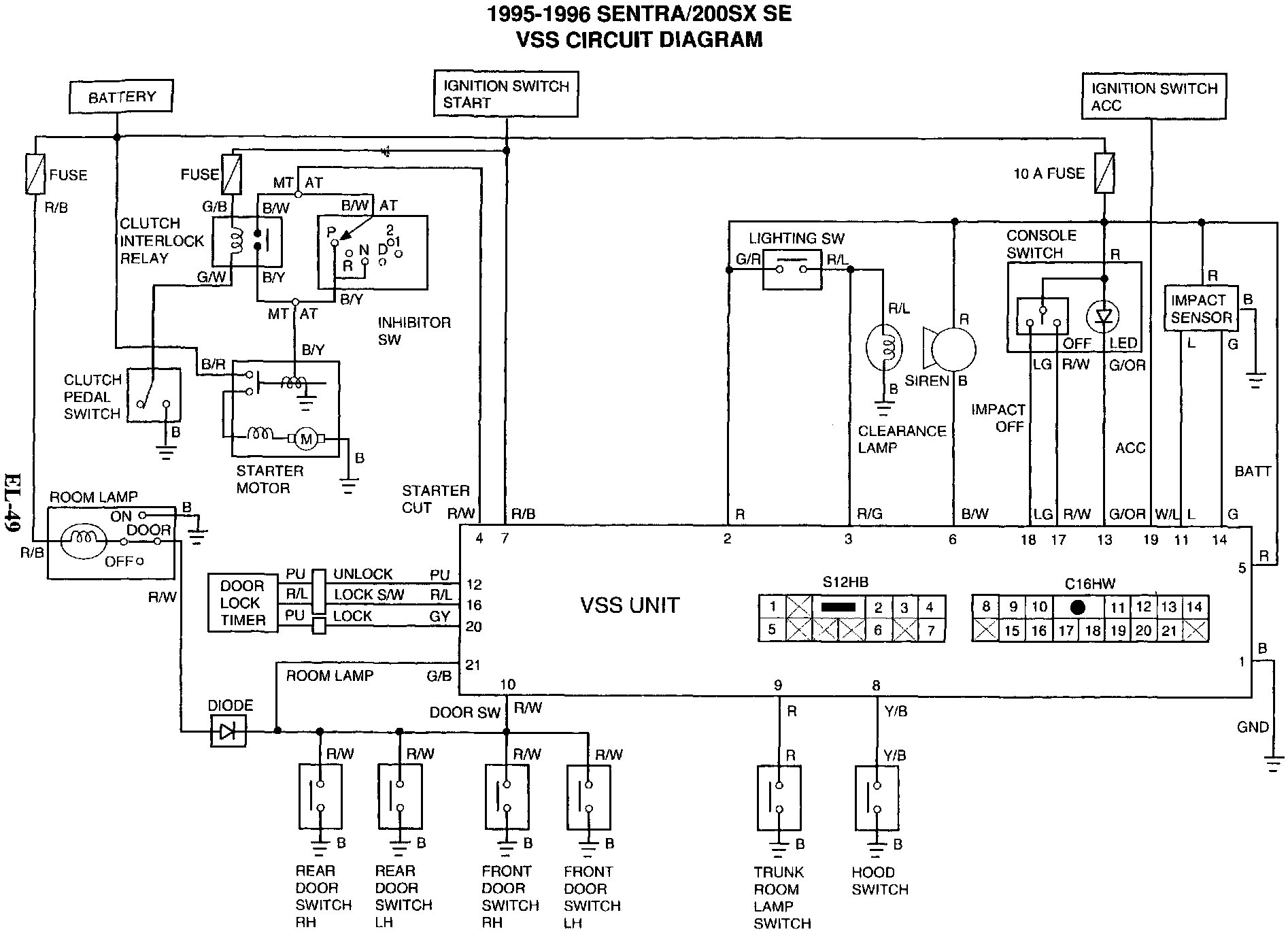

'95 - '96 Sentra/200 SX

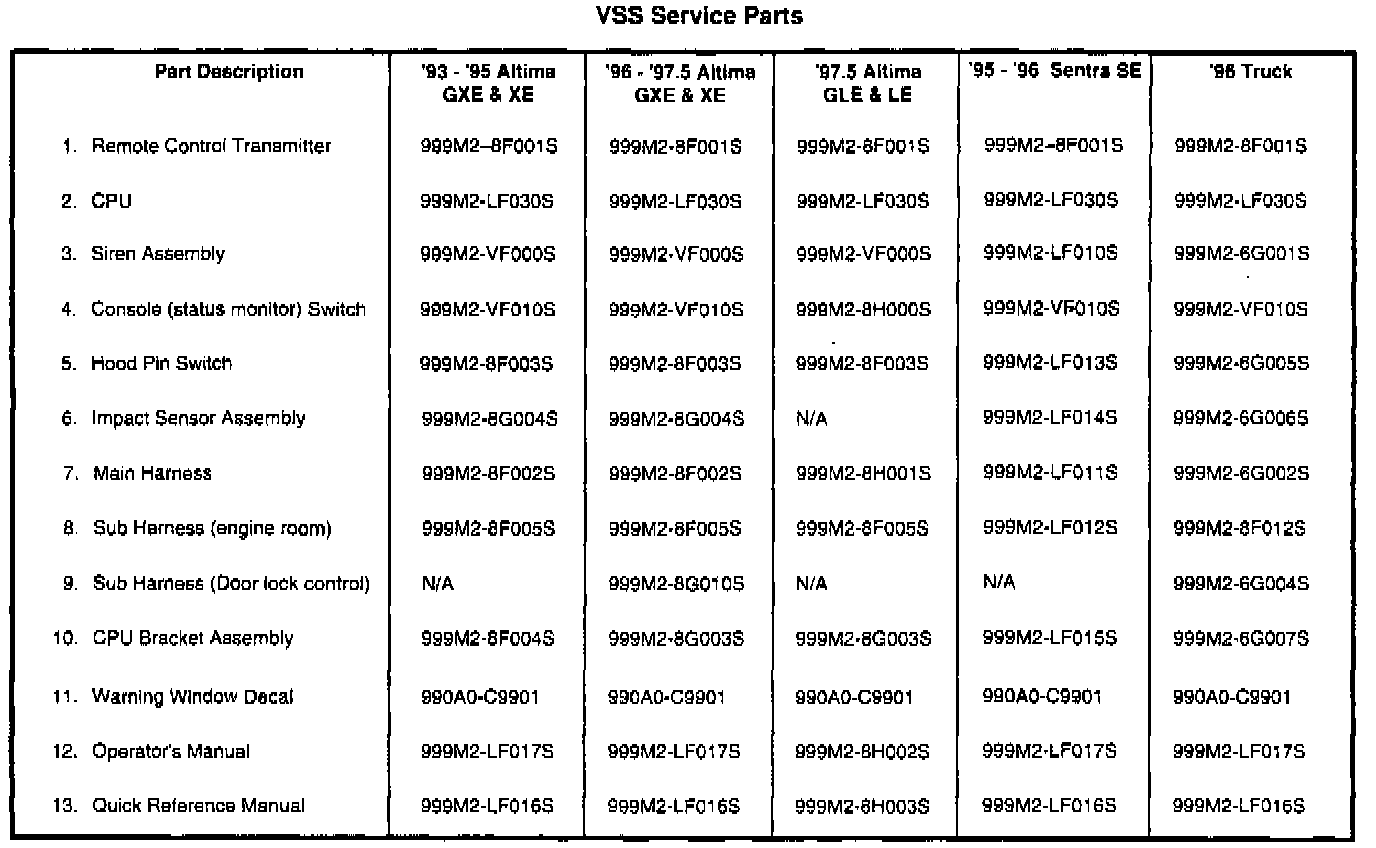

'96 Truck Service Parts Listing

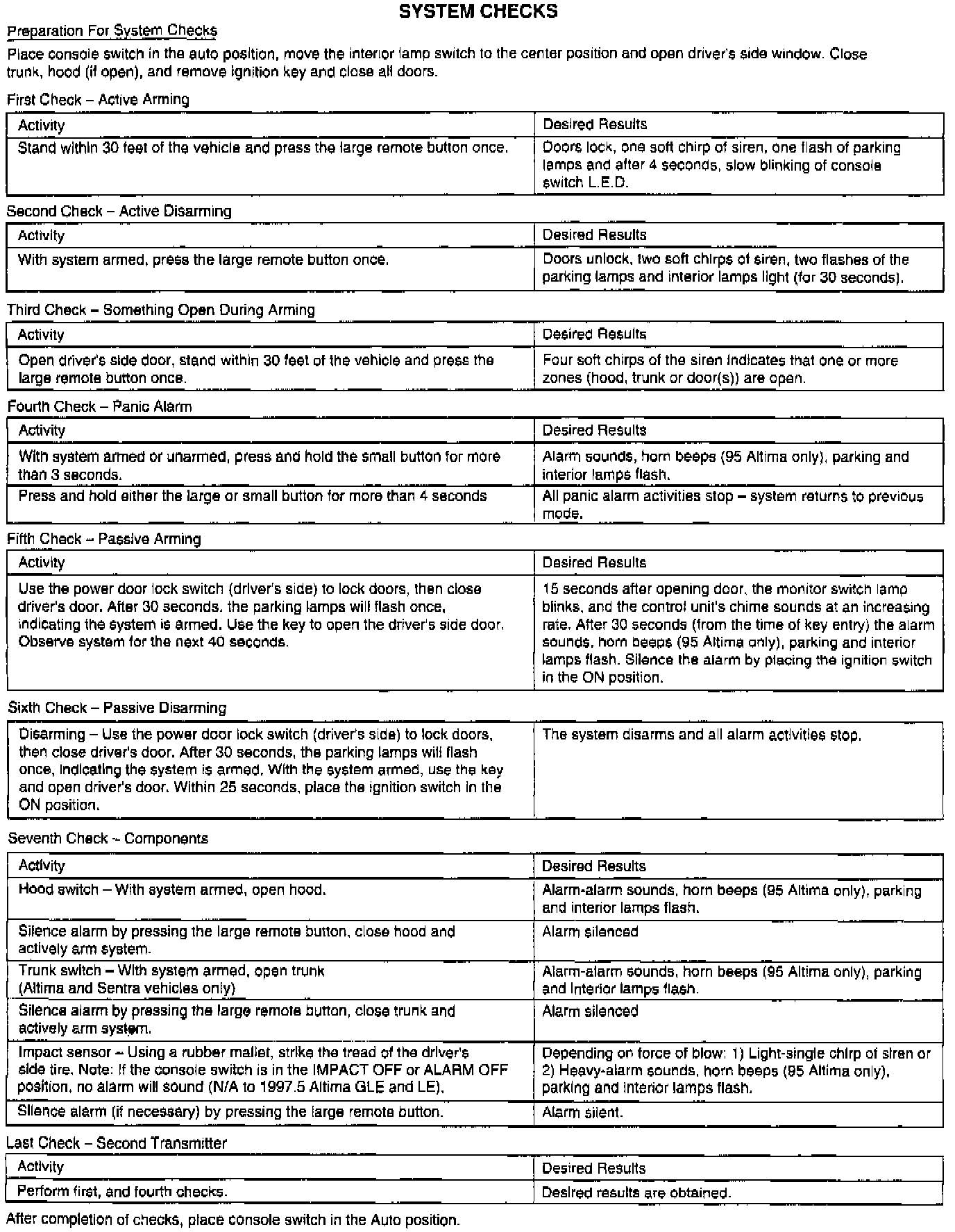

System Checks
