To Serial No. 148475

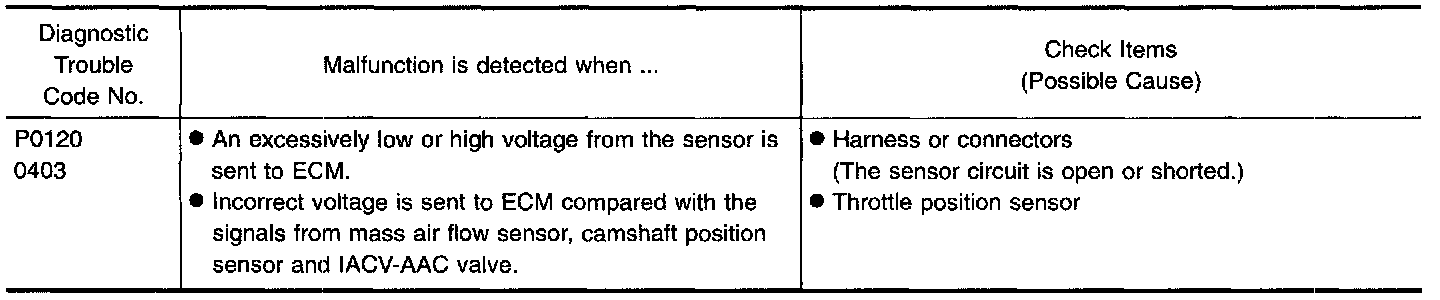

Throttle Position Sensor (DTC: 0403)

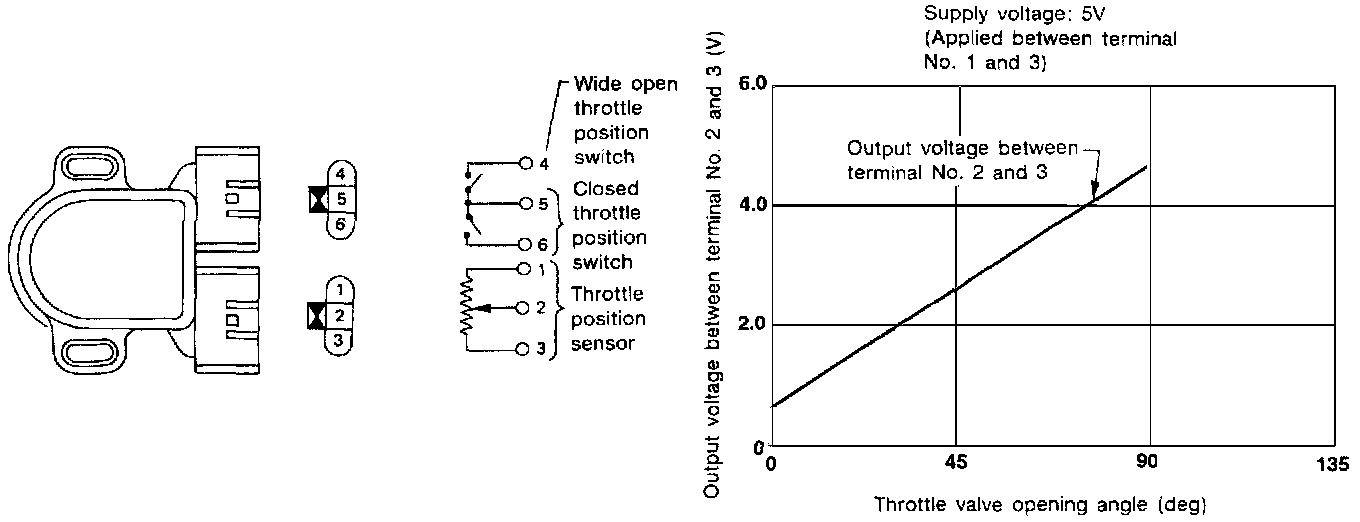

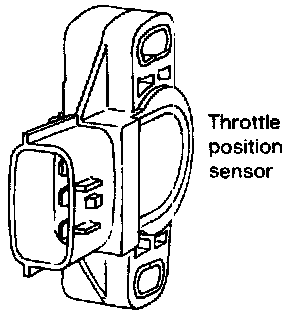

The throttle position sensor responds to the accelerator pedal movement. This sensor is a kind of potentiometer which transforms the throttle position into output voltage, and emits the voltage signal to the ECM. In addition, the sensor detects the opening and closing speed of the throttle valve and feeds the voltage signal to the ECM. Idle position of the throttle valve is determined by the ECM receiving the signal from the throttle position sensor. This controls engine operation such as fuel cut. In addition, for A/T models, "Wide open & closed throttle position switch" is built into the throttle position sensor unit.













Throttle Position Sensor (DTC: 0403)

OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the throttle position sensor circuit. During this check, a 1st trip DTC might not be confirmed.

1) Start engine and warm it up sufficiently.
2) Turn ignition switch "OFF" and wait at least 5 seconds.
3) Turn ignition switch "ON".

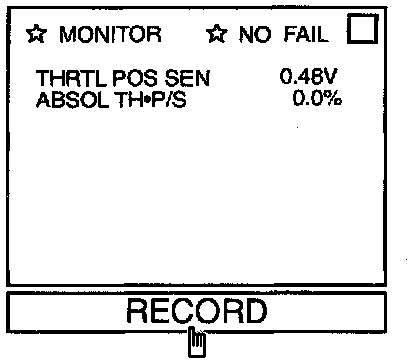

4) Select "MANU TRIG" and "HI SPEED" in "DATA MONITOR" mode with CONSULT
5) Select "THRTL P05 SEN" and "ABSOL THIPO SEN" in "DATA MONITOR" mode with CONSULT







6) Press RECORD on CONSULT SCREEN at the same time accelerator pedal is depressed.

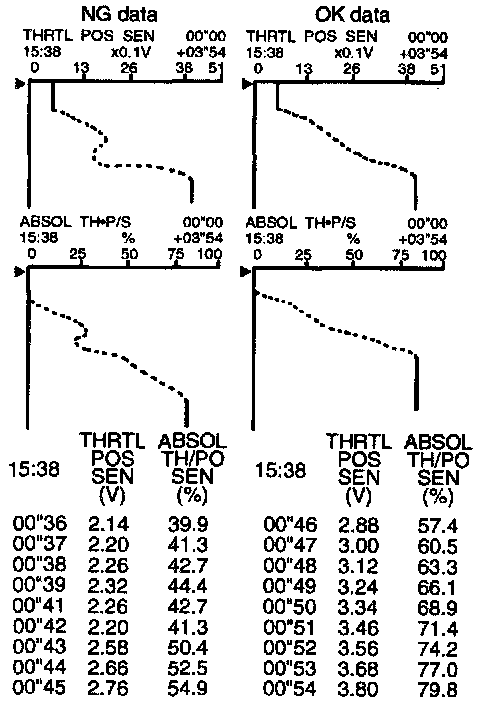

7) Print out the recorded data and check the following:

- The voltage when accelerator pedal fully released is 0.3 - 0.7V.
- The voltage rise is linear in response to accelerator pedal depression.
- The voltage when accelerator pedal fully depressed is approximately 4V.

OR

1) Start engine and warm it up sufficiently.
2) Turn ignition switch "OFF" and wait at least 5 seconds.
3) Turn ignition switch "ON".

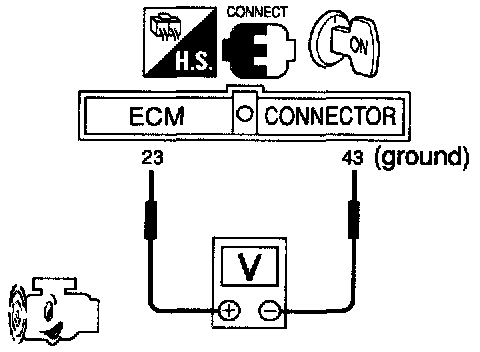

4) Check the voltage between ECM terminal 023 and � (ground) and check the following:

- The voltage when accelerator pedal fully released is 0.3 - 0.7V.
- The voltage rise is linear in response to accelerator pedal depression.
- The voltage when accelerator pedal fully depressed is approximately 4V.

EC-TPS-01 Throttle Position Sensor (DTC: 0403):

Wiring Diagram

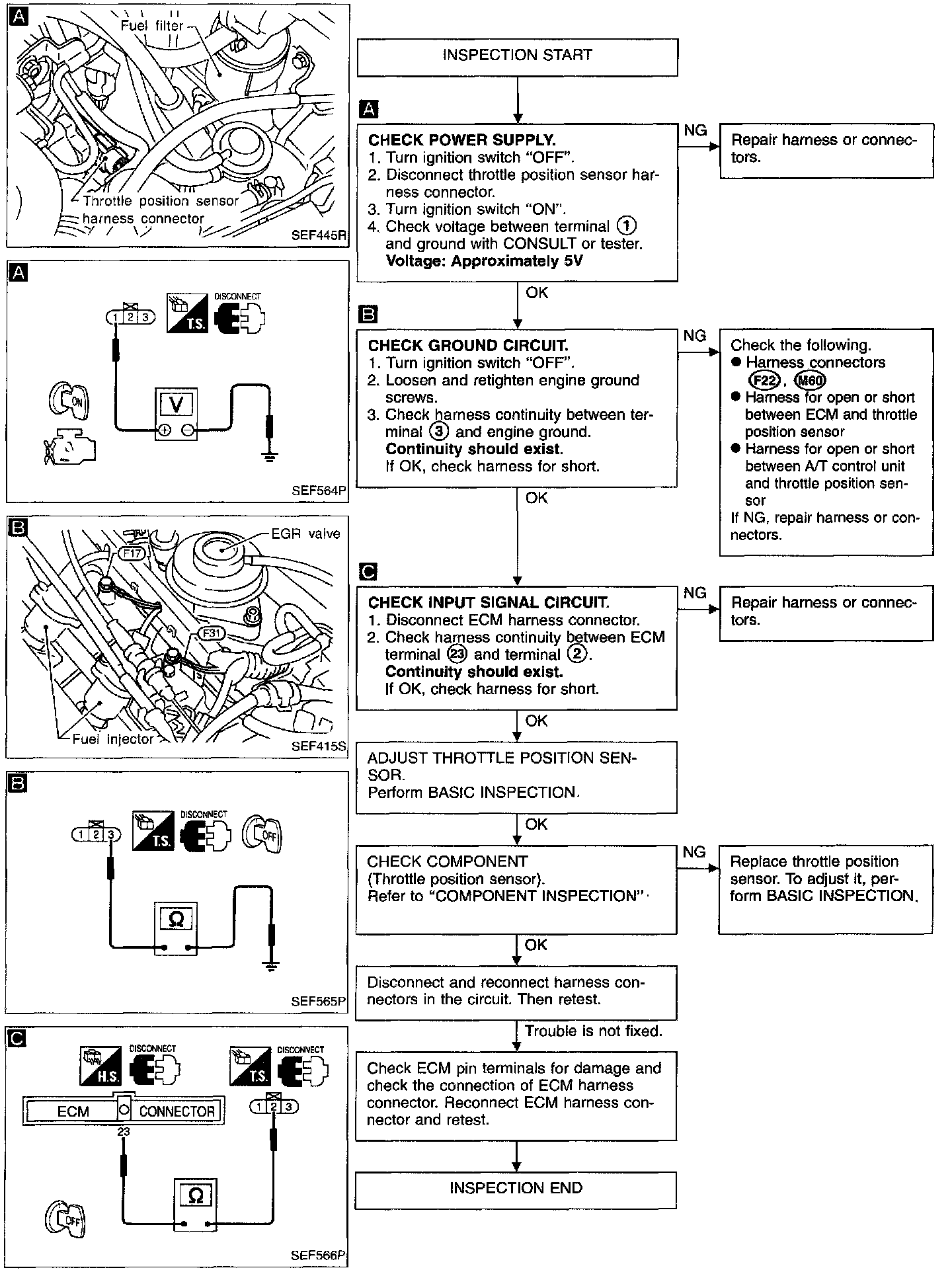

Diagnostic Procedure











Component Inspection

1. Start engine and warm it up sufficiently.
2. Turn ignition switch "OFF".
3. Disconnect throttle position sensor harness connector.

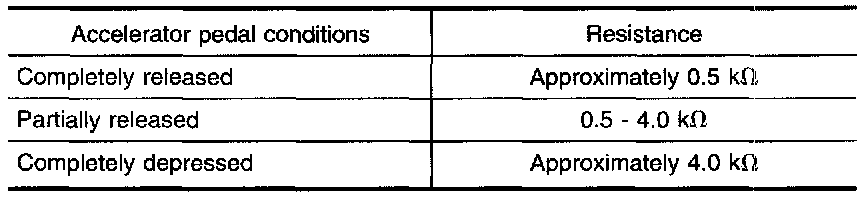

4. Make sure that resistance between terminals (2) and (3) changes when opening throttle valve manually.

If NG, replace throttle position sensor. To adjust throttle position sensor, perform "BASIC INSPECTION".
