Diagnostic Procedure 6

Diagnostic Procedure 6:




SYMPTOM: Seat belt warning chime does not activate.

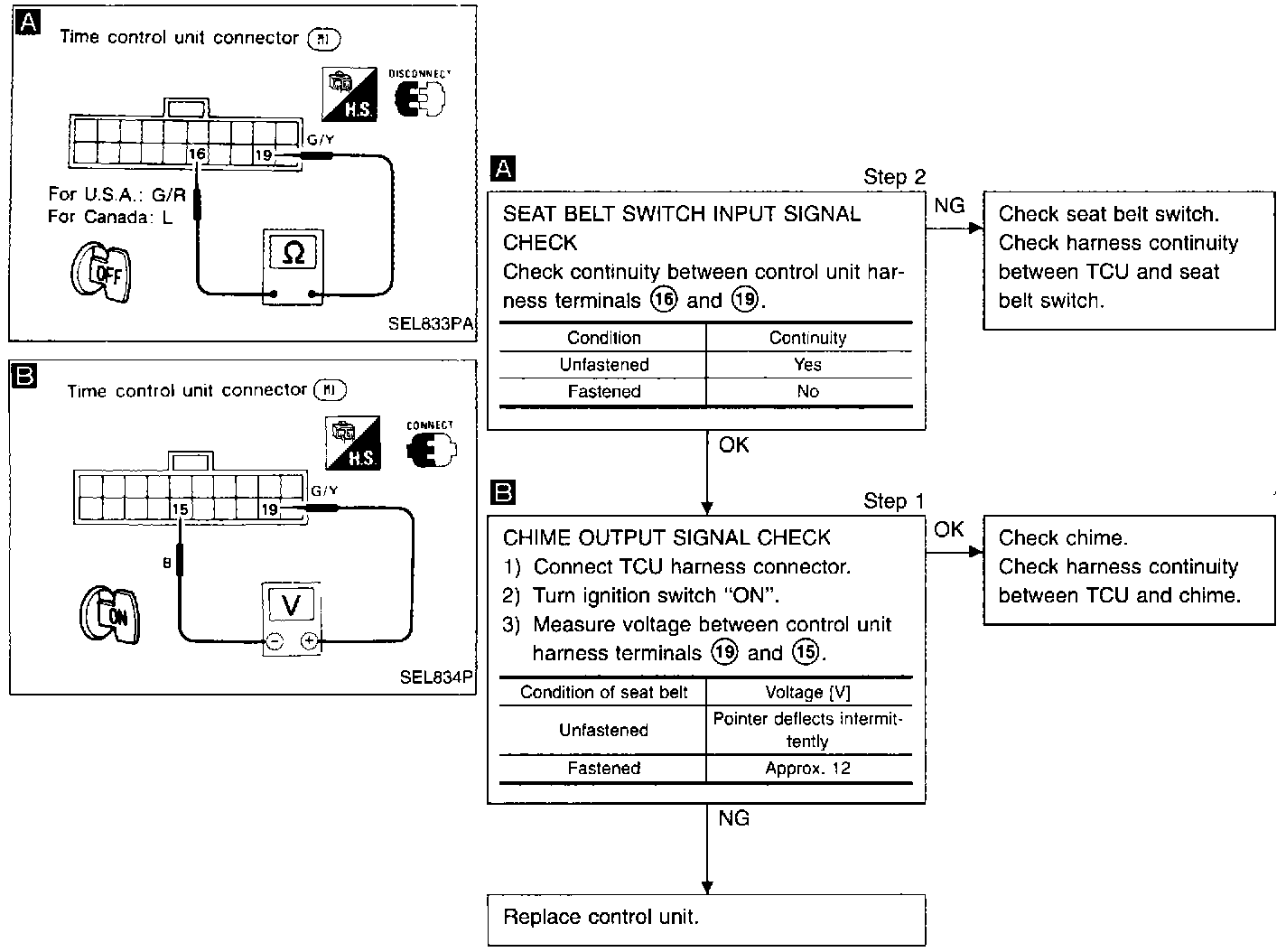

^ Perform "PRELIMINARY CHECK 3" before referring to the following flow chart.
