Diode: Testing and Inspection

Diode Check:

^ Check continuity using an ohmmeter.

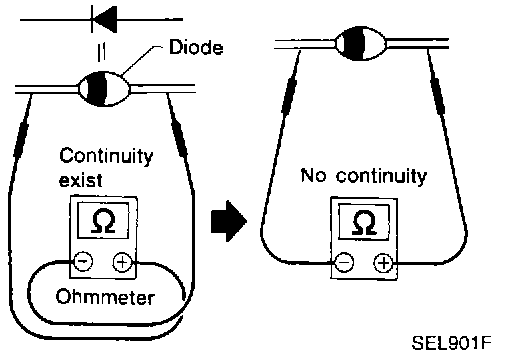

^ Diode is functioning properly if test results are as shown in the image.
Specifications may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual of the tester to be used.

Diode Check:

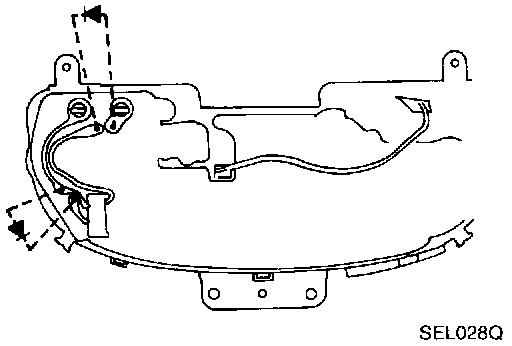

^ Diodes for warning lamps are built into the combination meter printed circuit.
