Fuel Temperature Sensor: Testing and Inspection
COMPONENT INSPECTIONFuel temperature sensor
1. Disconnect fuel temperature sensor harness connector.

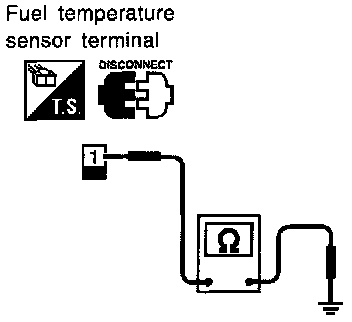

2. Check resistance between terminal and ground as shown in the figure.
If NG, replace fuel temperature sensor.
