Home >> Nissan-Datsun >> 1996 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Air Temperature Sensor ( Ambient / Intake ) >> Diagrams >> Electrical Diagrams

Electrical Diagrams

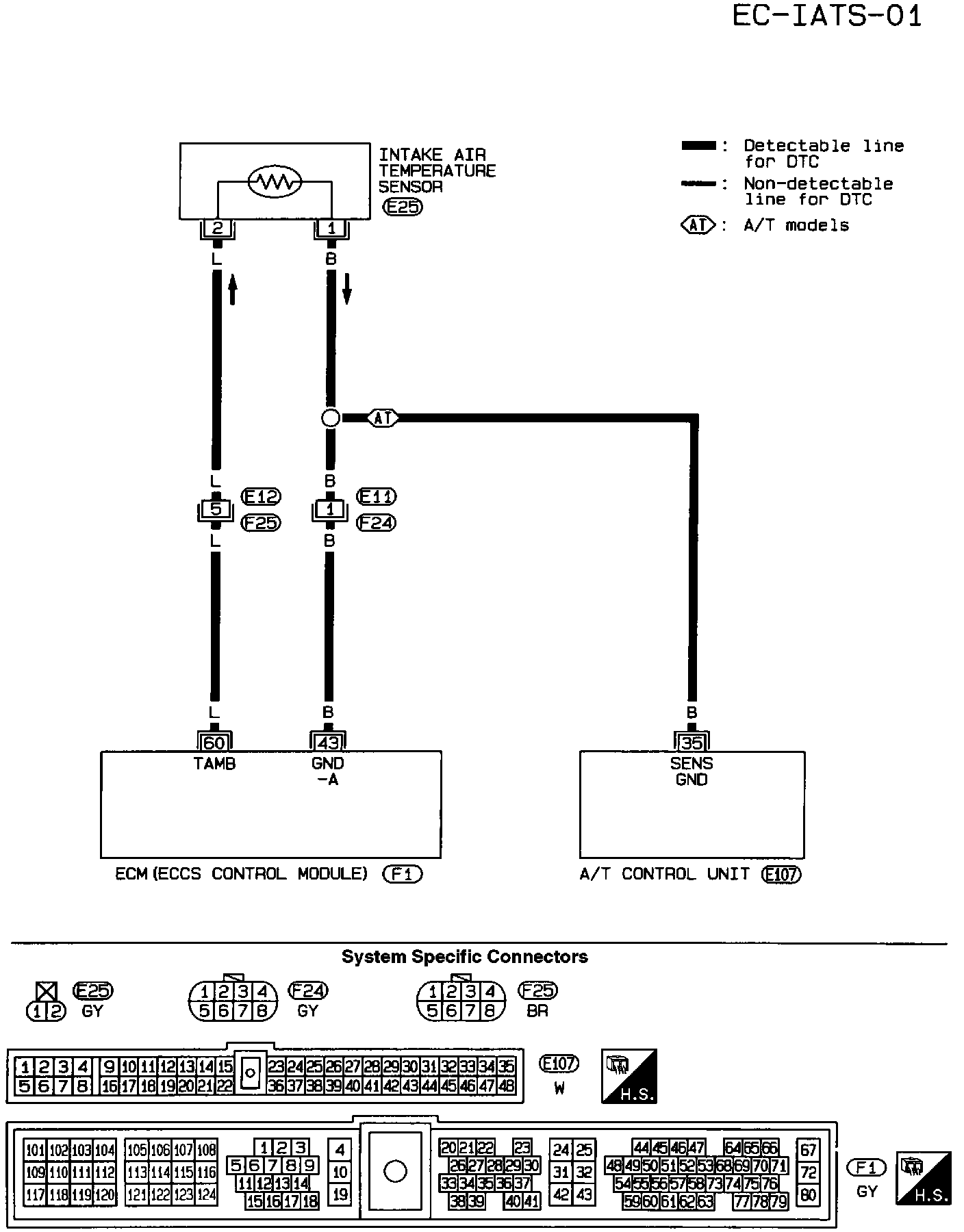

EC-IATS-01 Intake Air Temperature Sensor (DTC: 0401):
