Fuel Tank Gauge Unit Check
Fuel Tank Gauge Unit Check

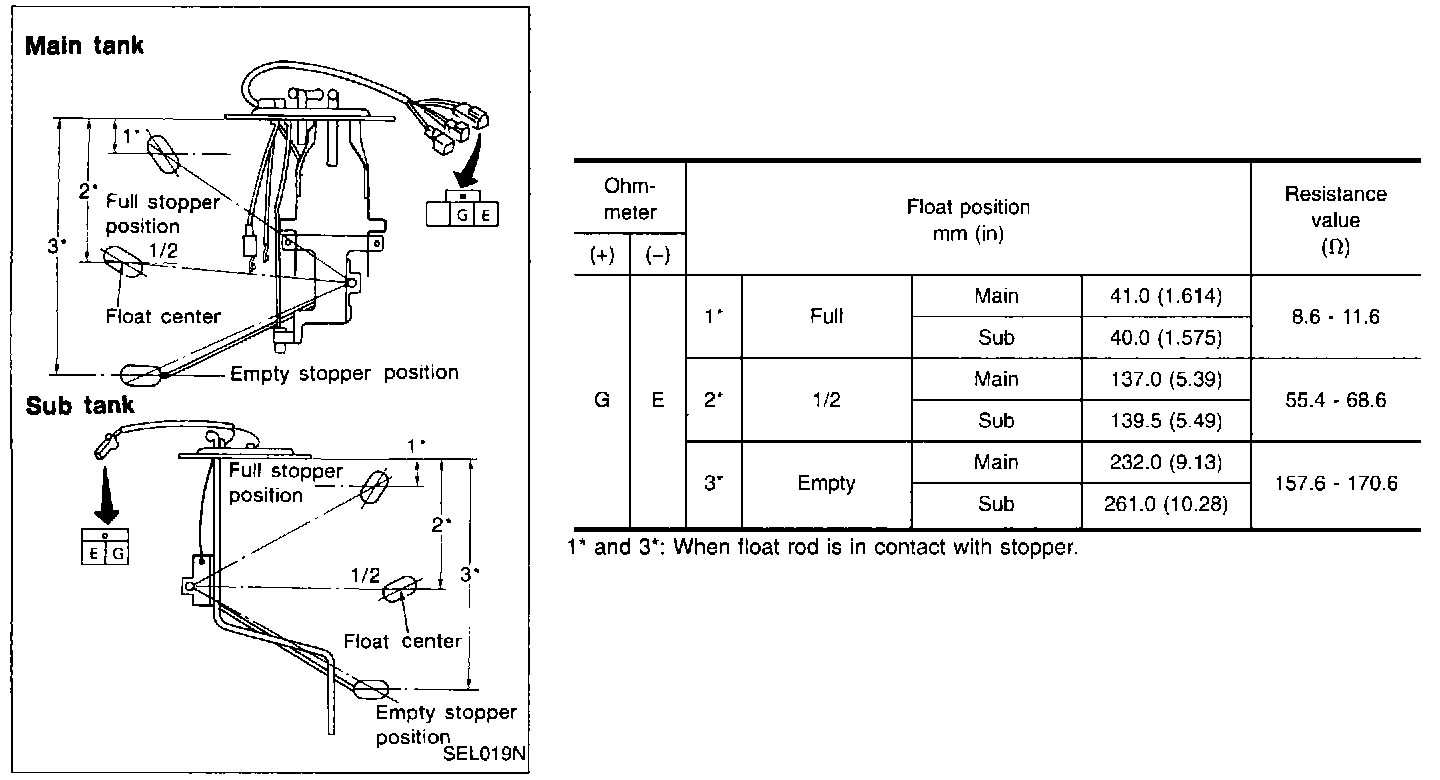

Fuel Tank Gauge Unit Check:
Check the resistance between terminals (G) and (E).
