Without Scan Tool

USING THE WARNING LAMP


- Self-diagnosis results can be also read by using the "AIR BAG"

warning lamp.

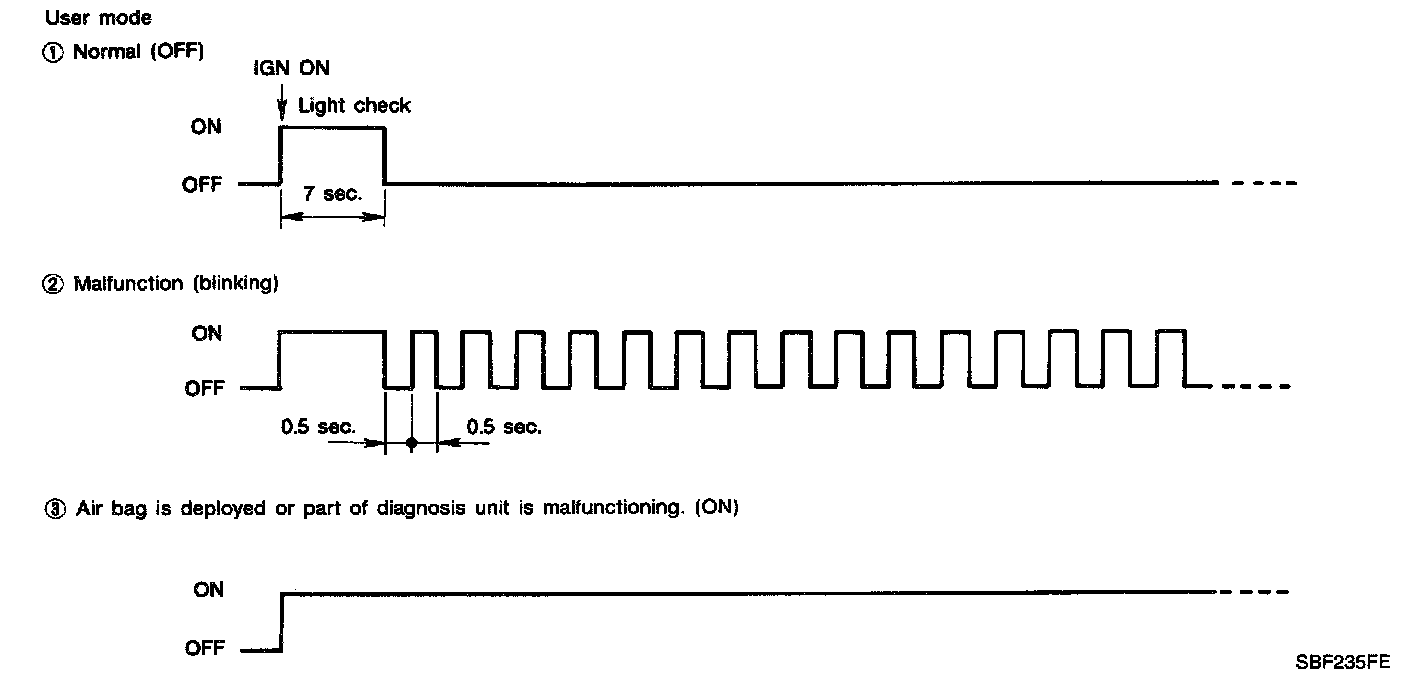

- The "AIR BAG" warning lamp operates as shown below:






NOTE:

If the "AIR BAG" warning lamp does not illuminate, refer to Diagnostic Procedure 1.
If the "AIR BAG" warning lamp does not turn off, refer to Diagnostic Procedure 2.

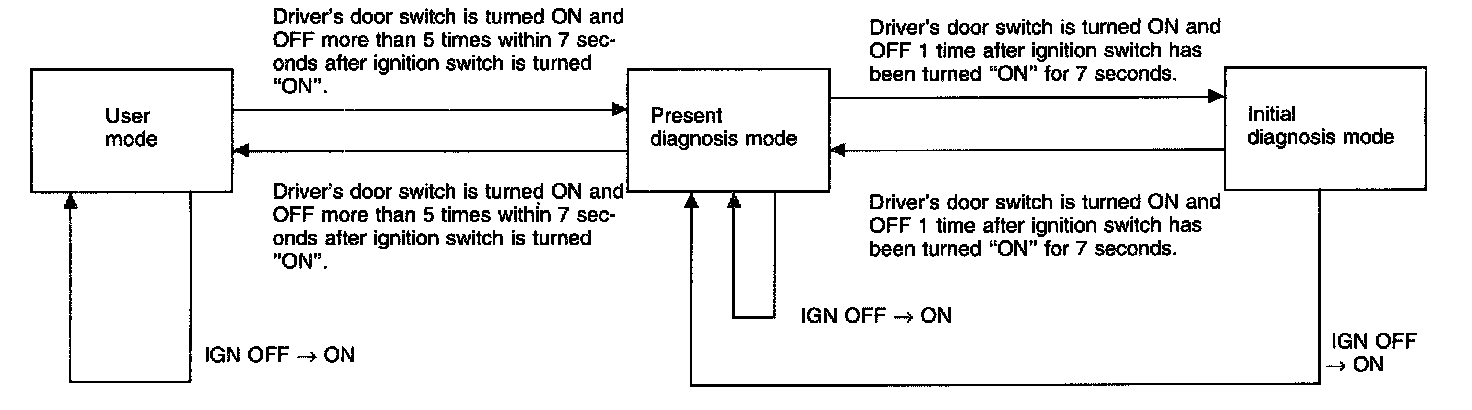

HOW TO ALTERNATE SELF-DIAGNOSIS:

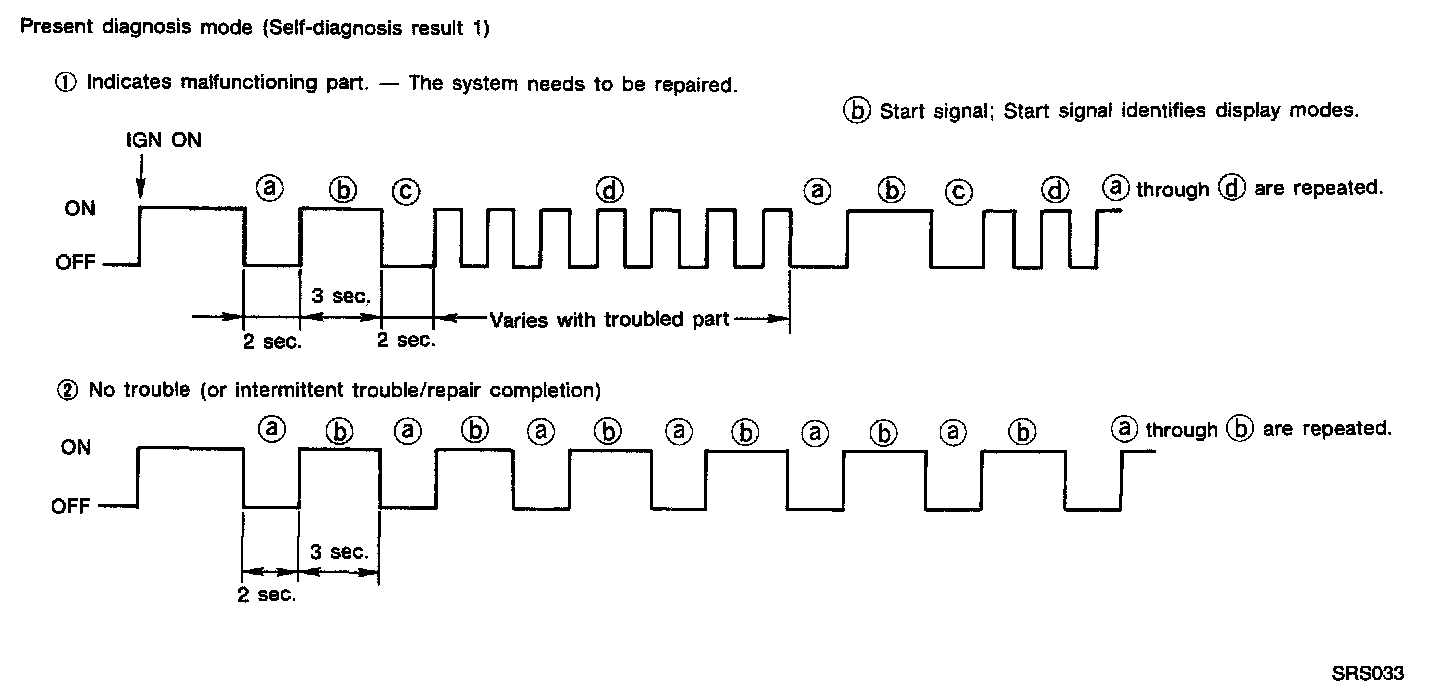

- Problem codes are displayed in present diagnosis mode (self-diagnosis result 1).

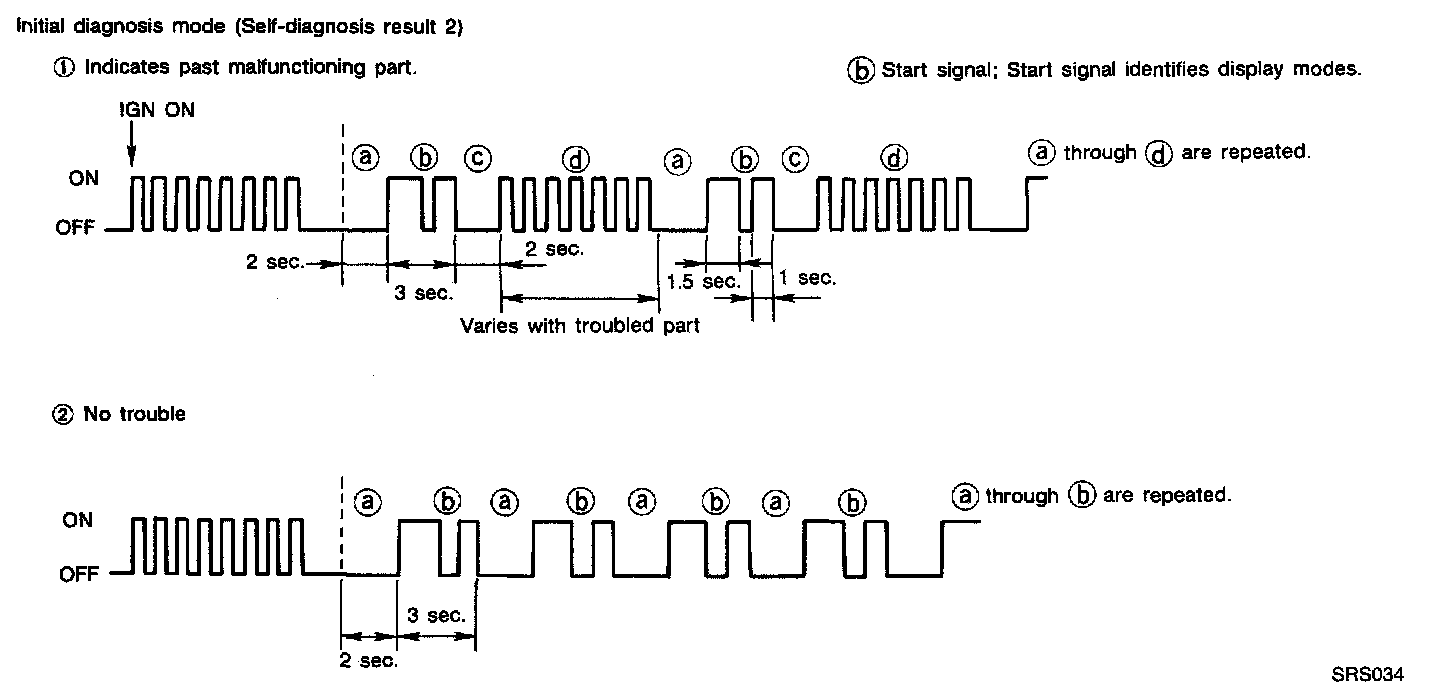

- The problem code last indicated is displayed in initial diagnosis mode (self-diagnosis result 2).

WARNING LAMP INDICATION:

- After repairing the malfunctioning part, use driver's door switch to return the system to user mode.

- This will clear self-diagnosis results from memory.

If a malfunctioning part is not repaired. self-diagnosis results will not be cleared.
















Self-diagnosis results in present- and initial modes can be identified by number of flashes (d). Refer to table below for troubled parts.

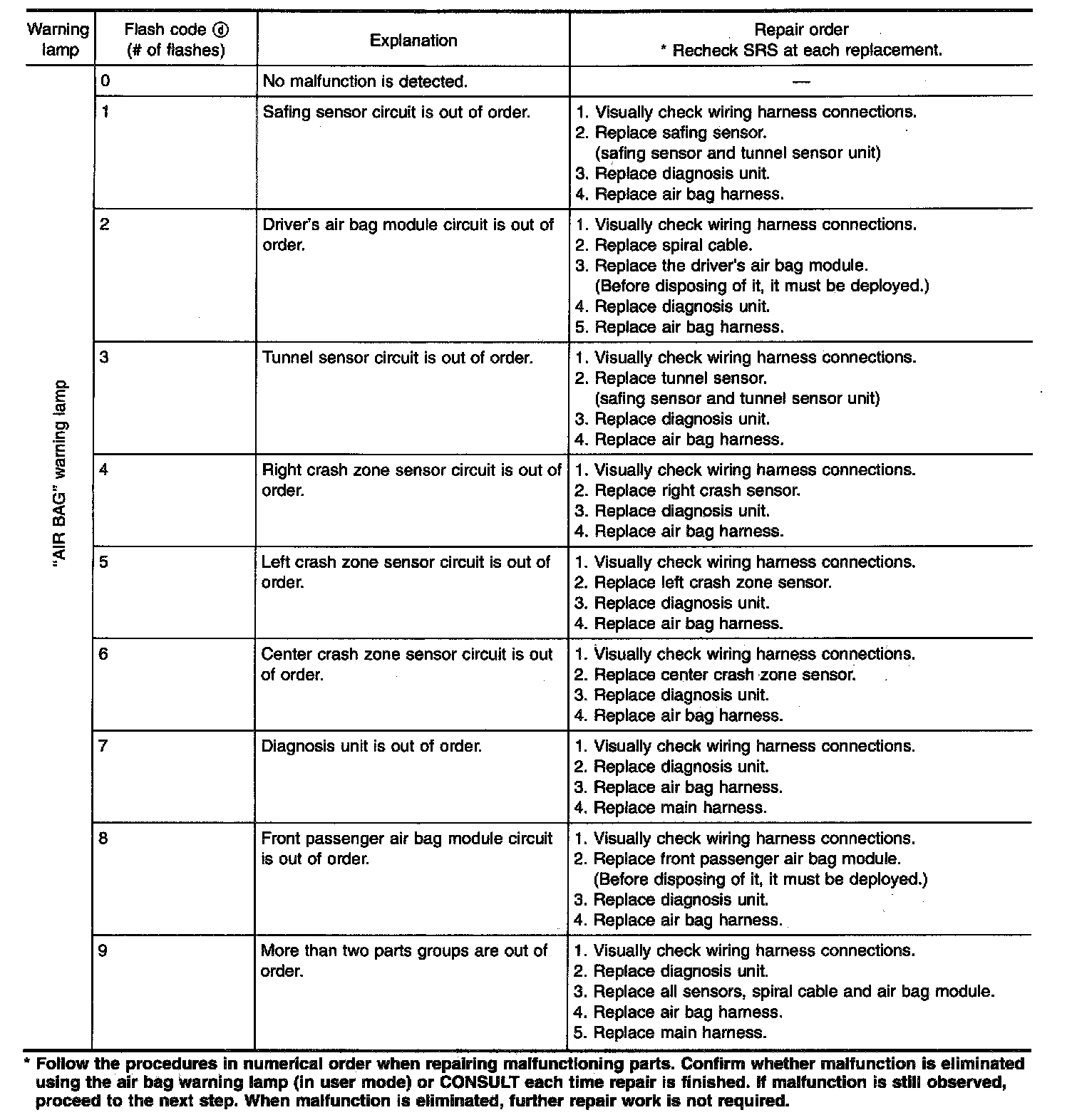

Warning Lamp Flash Codes
