With Consult Scan Tool

USING CONSULT









The self-diagnosis results can be read by CONSULT, as follows:

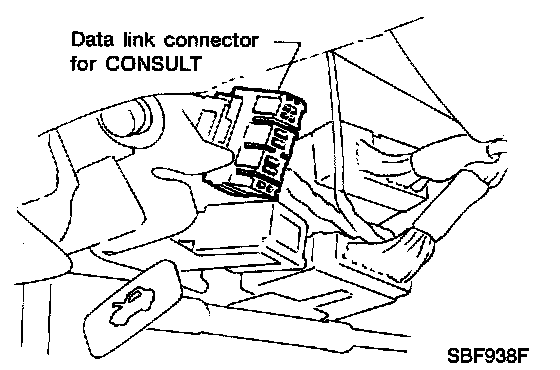

1. Connect "CONSULT" to data link connector for CONSULT.

2. Turn ignition switch to "ON". (When CONSULT is connected, the "AIR BAG" warning lamp will be turned to present diagnosis mode.)

3. Touch "START" to operate "CONSULT".

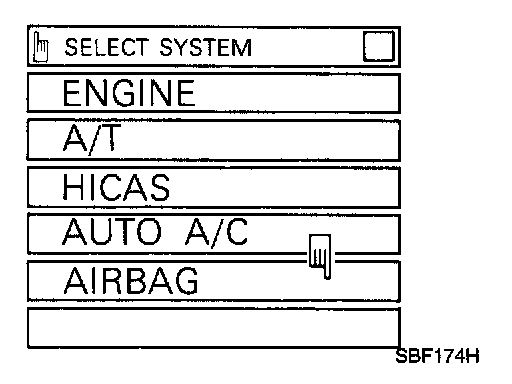

4. Touch "AIRBAG" to choose air bag system.

5. Touch "SELF-DIAG RESULTS" to read self-diagnosis results.

6. Problem codes are displayed on "SELF-DIAG RESULT 1". The problem code last indicated is displayed on "SELF-DIAG RESULT 2".

7. When "PRINT" is pressed, information displayed on "SELF-DIAG RESULTS and 2"is printed out.


Warning:
- While CONSULT is displaying this "SELF-DIAG RESULTS" information, do not disconnect CONSULT from data link connector.

- When finishing air bag diagnosis by CONSULT, make sure to change CONSULT display to SELECT SYSTEM mode by using BACK KEY.


8. After repairing malfunctioning parts, press "ERASE" to clear self-diagnosis results.






9. Push Back key of CONSULT until SELECT SYSTEM mode appears to make "SELF-DIAGNOSIS" user mode.

- If malfunctioning parts are not completely repaired, self- diagnosis results remain stored in memory.

10. Push the power off switch.

11. Turn off ignition switch and disconnect CONSULT.

12. Turn ignition switch to"ON".

- "AIR BAG" warning lamp should turn on for about 7 seconds and then turn off.
