Scan Tool Testing and Procedures

Measure voltage between each terminal and terminal (15) or (48) by following "A/T CONTROL UNIT INSPECTION TABLE".

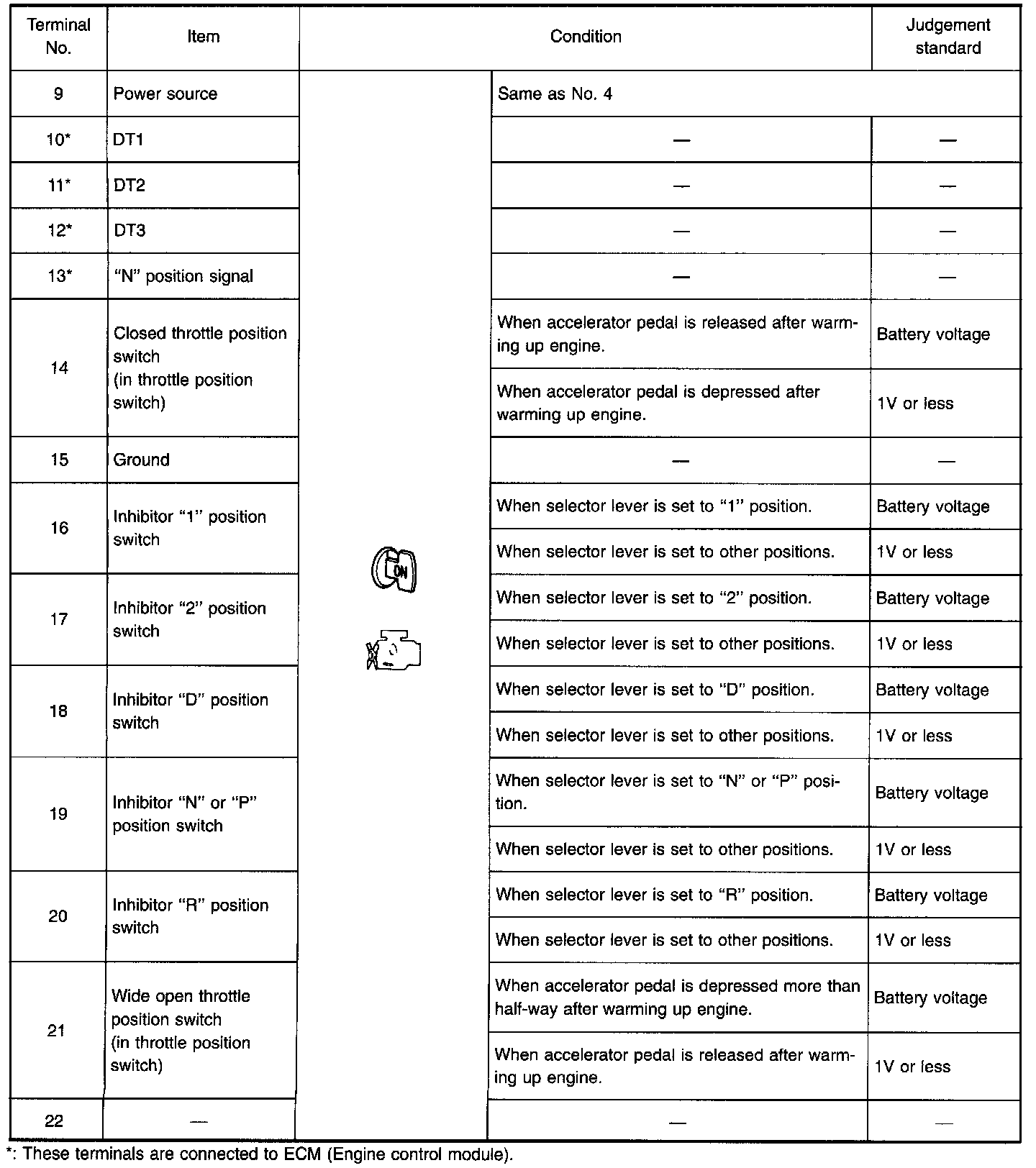

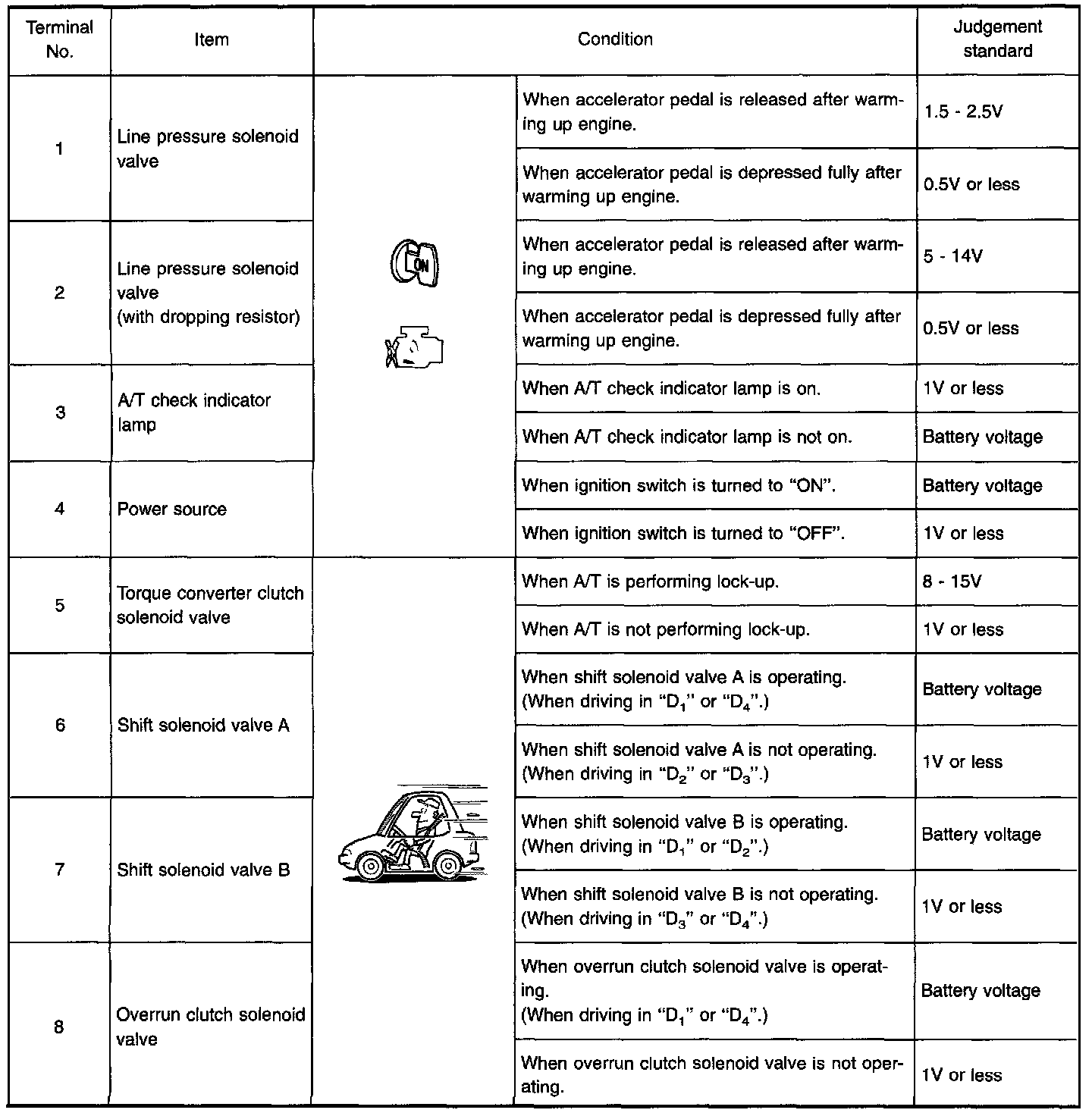

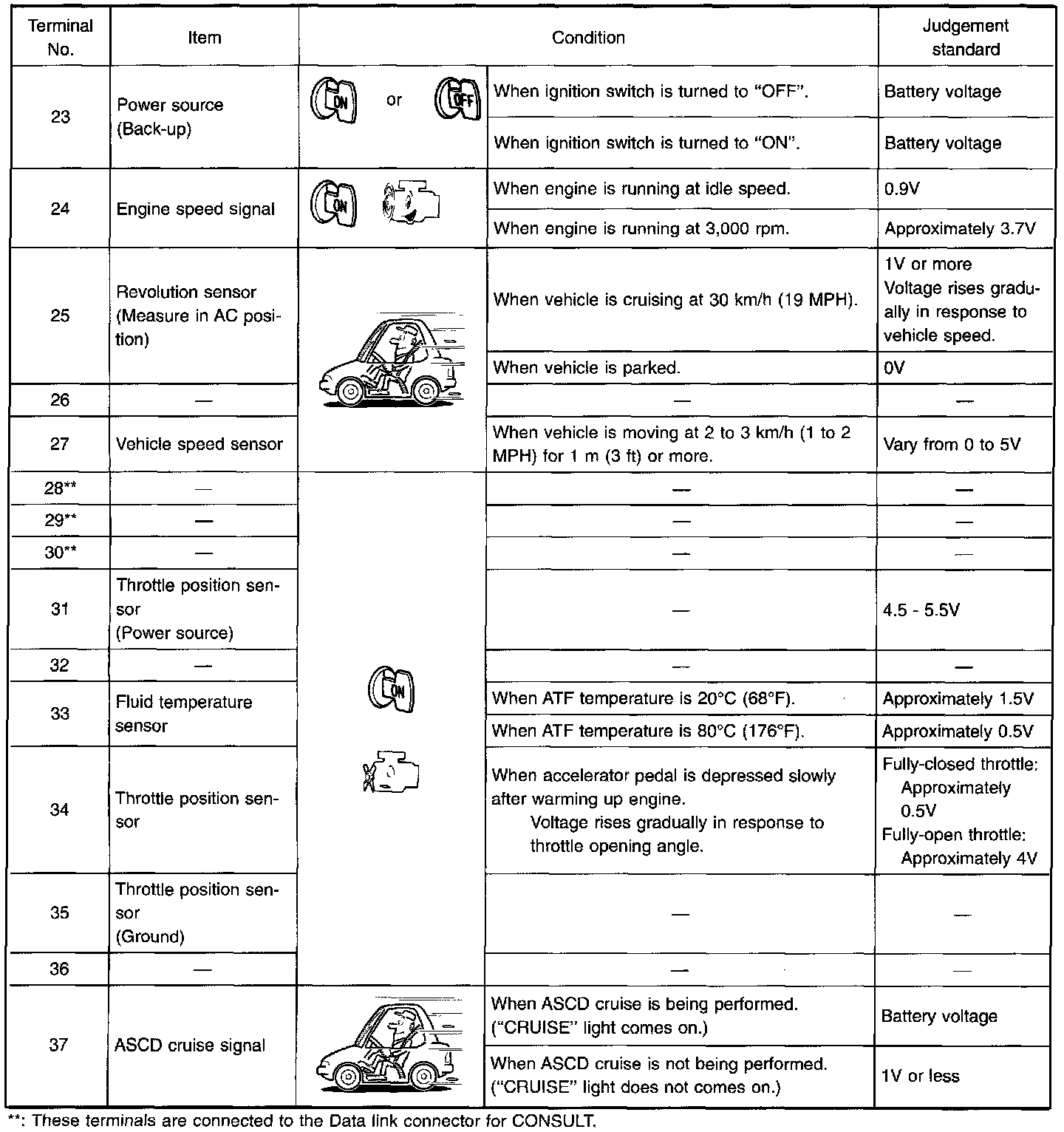

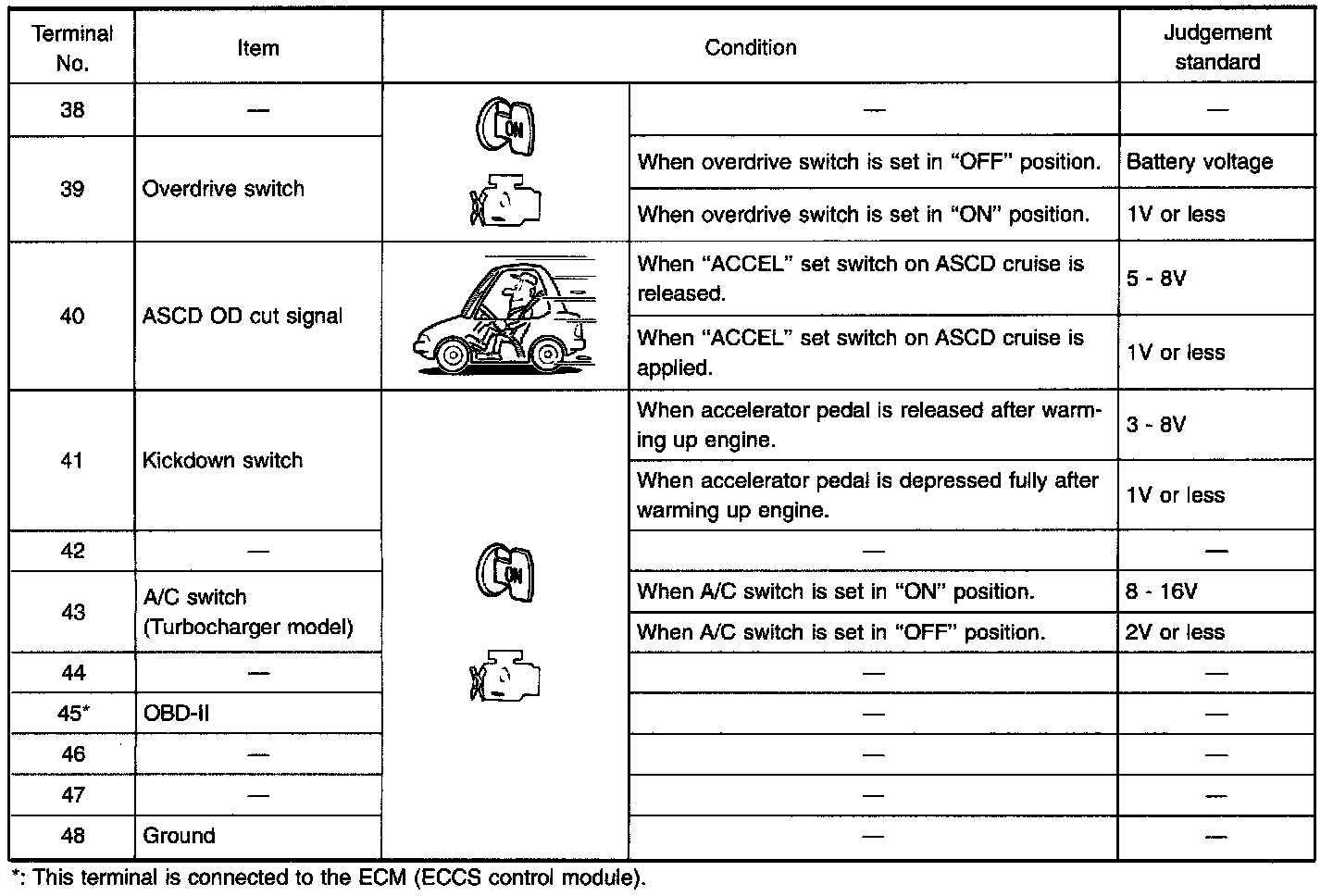

A/T CONTROL UNIT INSPECTION TABLE
(Data reference values)

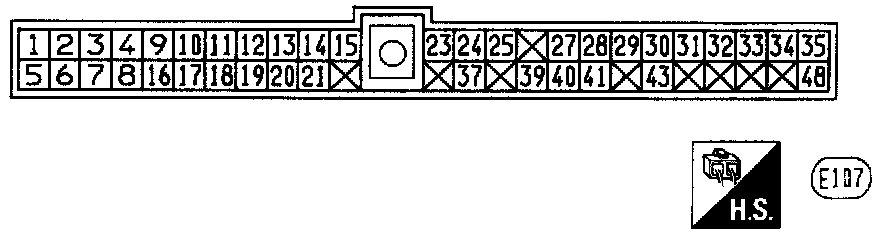

PIN CONNECTOR TERMINAL LAYOUT
