Cruise Test - Part 2




PRELIMINARY CHECK - CRUISE TEST (WITHOUT CONSULT)

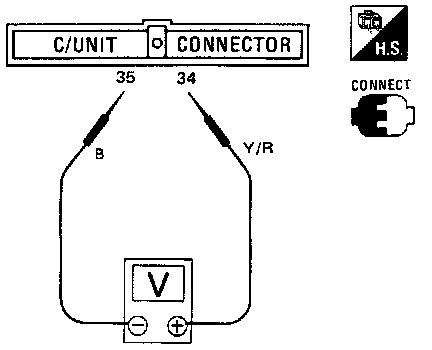

Throttle position can be controlled by voltage across terminals (34) and (35) of A/T control unit.

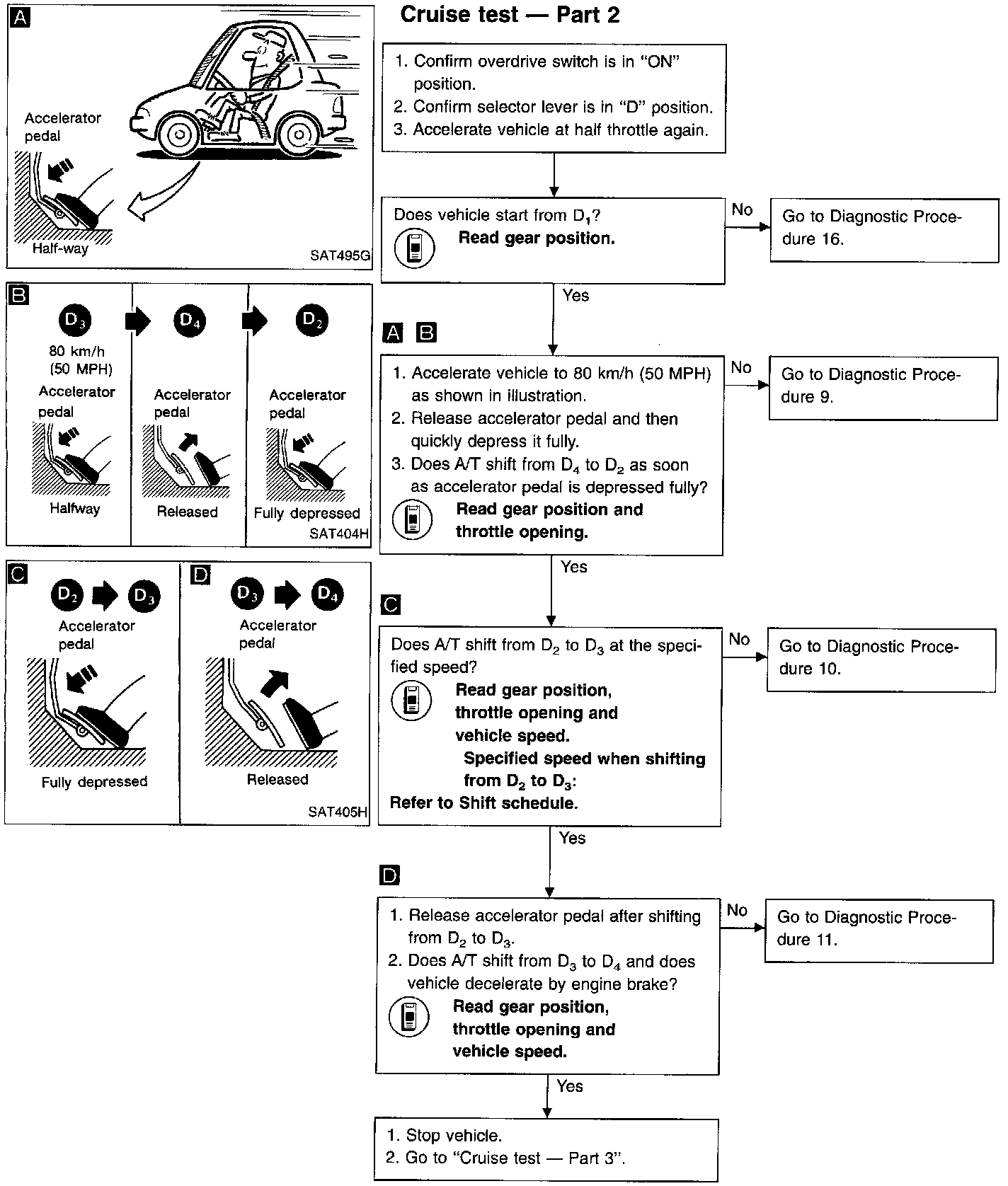

CRUISE TEST 2
