With CONSULT

PRELIMINARY CHECK 3 - CRUISE TEST (WITH CONSULT)
- Using CONSULT, conduct a cruise test and record the result.
- Print the result and ensure that shifts and lock-ups take place as per "Shift Schedule."
- Check all items listed in Parts 1 through 3.

CONSULT SETTING PROCEDURE
1. Turn off ignition switch.




2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located in left dash side panel.)
3. Turn on ignition switch.

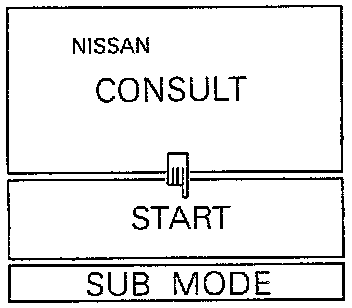

4. Touch "START".

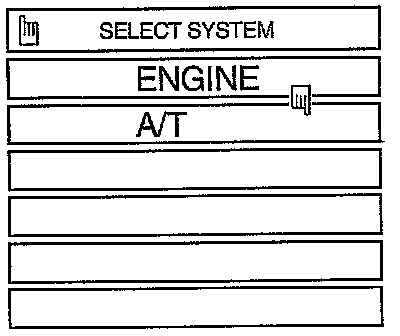

5. Touch "A/T".

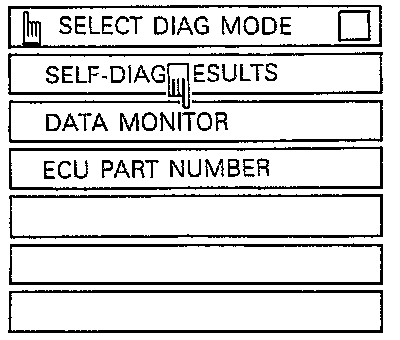

6. Touch "DATA MONITOR".

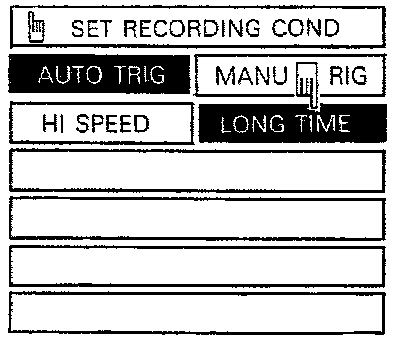

7. Touch "SETTING" to set recording condition.




8. Touch "LONG TIME" and "ENTER" key.

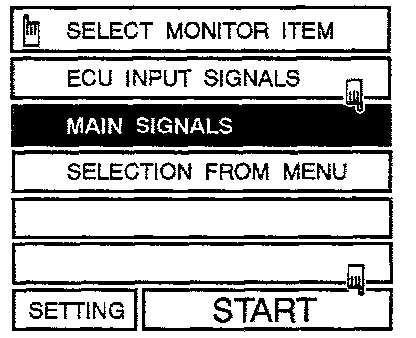

9. Go back to SELECT MONITOR ITEM and touch "MAIN SIGNALS".
10. Touch "START".

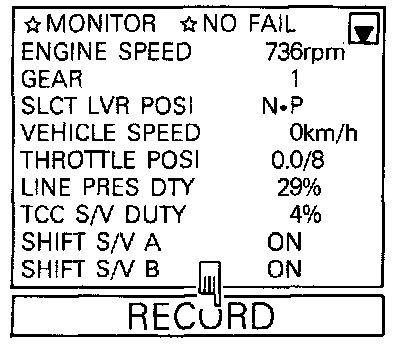

11. When performing cruise test, touch "RECORD".

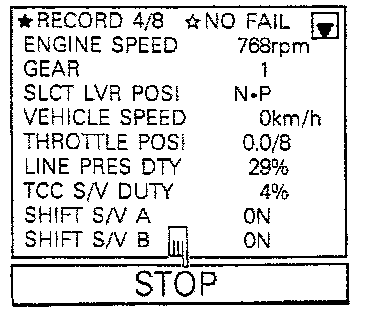

12. After finishing cruise test part 1, touch "STOP".

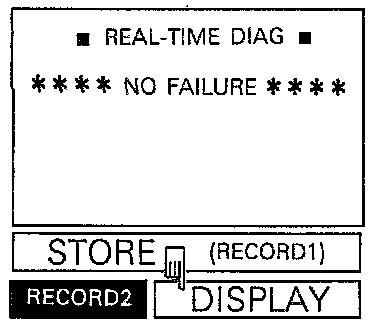

13. Touch "DISPLAY".

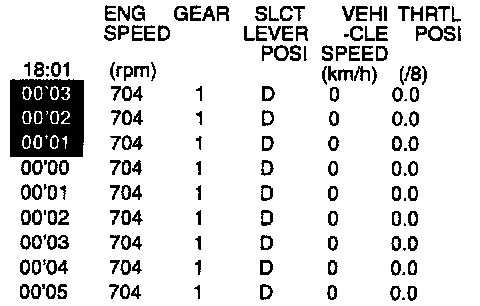

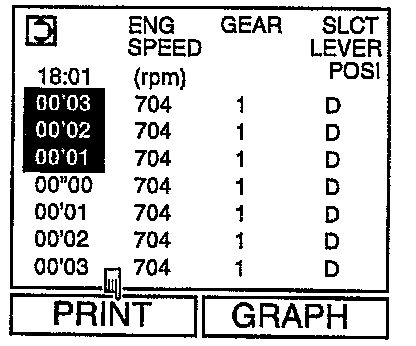

14. Touch "PRINT".

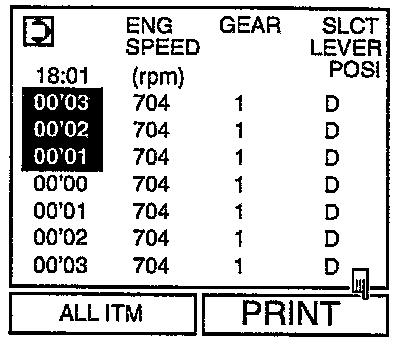

15. Touch "PRINT" again.




16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
