Shift Solenoid: Testing and Inspection

SOLENOID VALVES
- For removal and installation, refer to "ON-VEHICLE SERVICE".

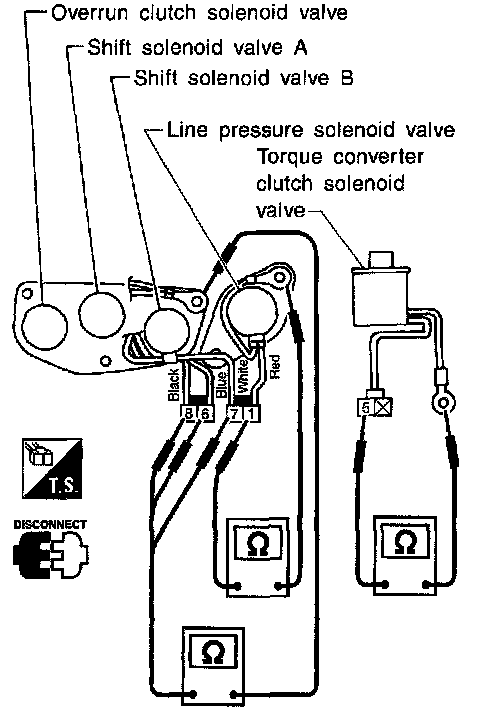

Resistance check

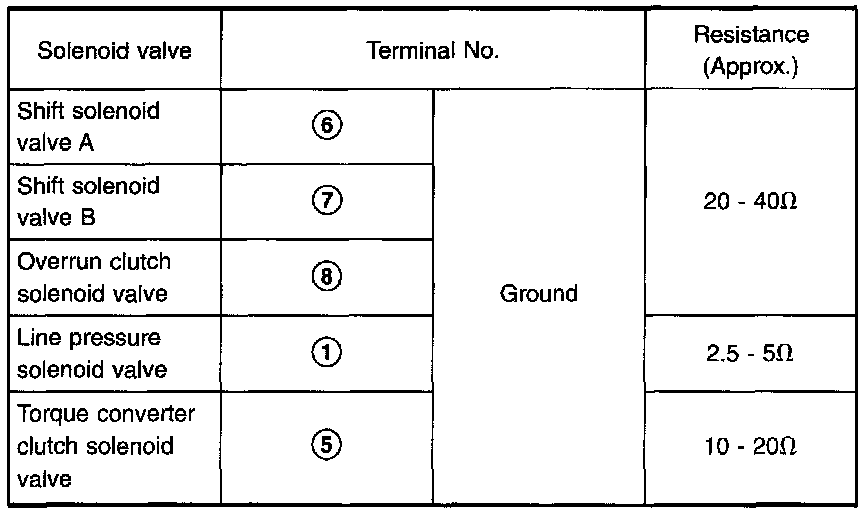

- Check resistance between two terminals.

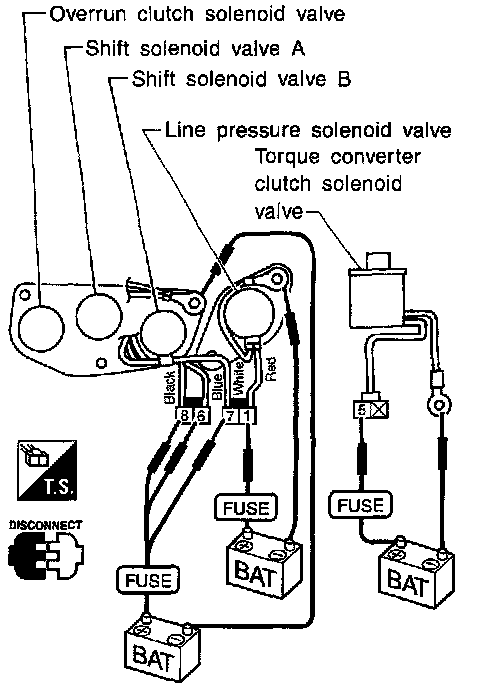

Operation check




- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
