Relationship Chart - Driving Pattern Except For "Misfire"

Note: Check TSBs for any available updates to drive patterns.

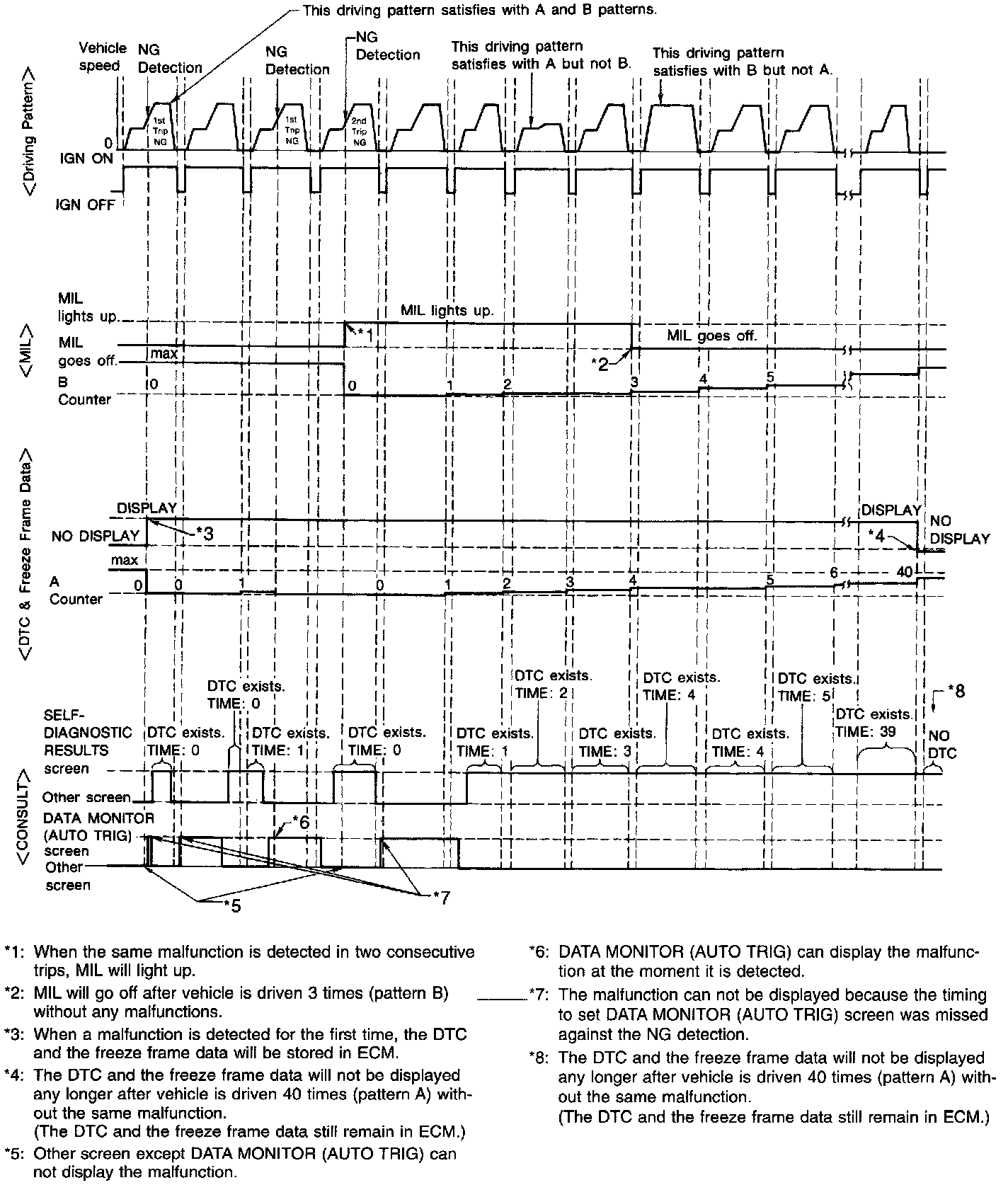

RELATIONSHIP BETWEEN MIL, DTC, CONSULT AND DRIVING PATTERNS EXCEPT FOR "MISFIRE" , "FUEL INJECTION SYSTEM"

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE ", "FUEL INJECTION SYSTEM"

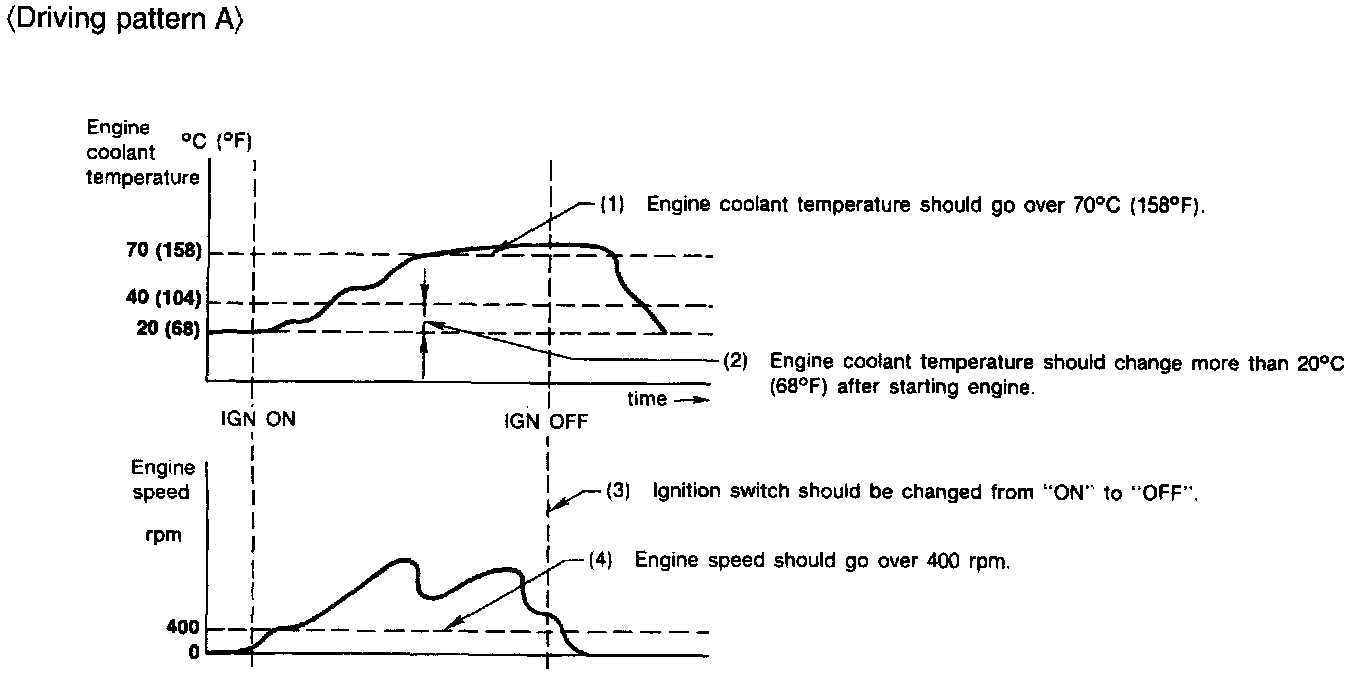

(Driving pattern A)
- The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
- The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the A counter reaches 40.

(Driving pattern B)
Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
- The B counter will be cleared when the malfunction is detected twice regardless of the driving pattern (*1 in "OBD SYSTEM OPERATION CHART").
- The MIL will go off when the b counter reaches 3 (*2 in the "OBD SYSTEM OPERATION CHART").
