Rear Heated Oxygen Sensor Heater (Right Bank)

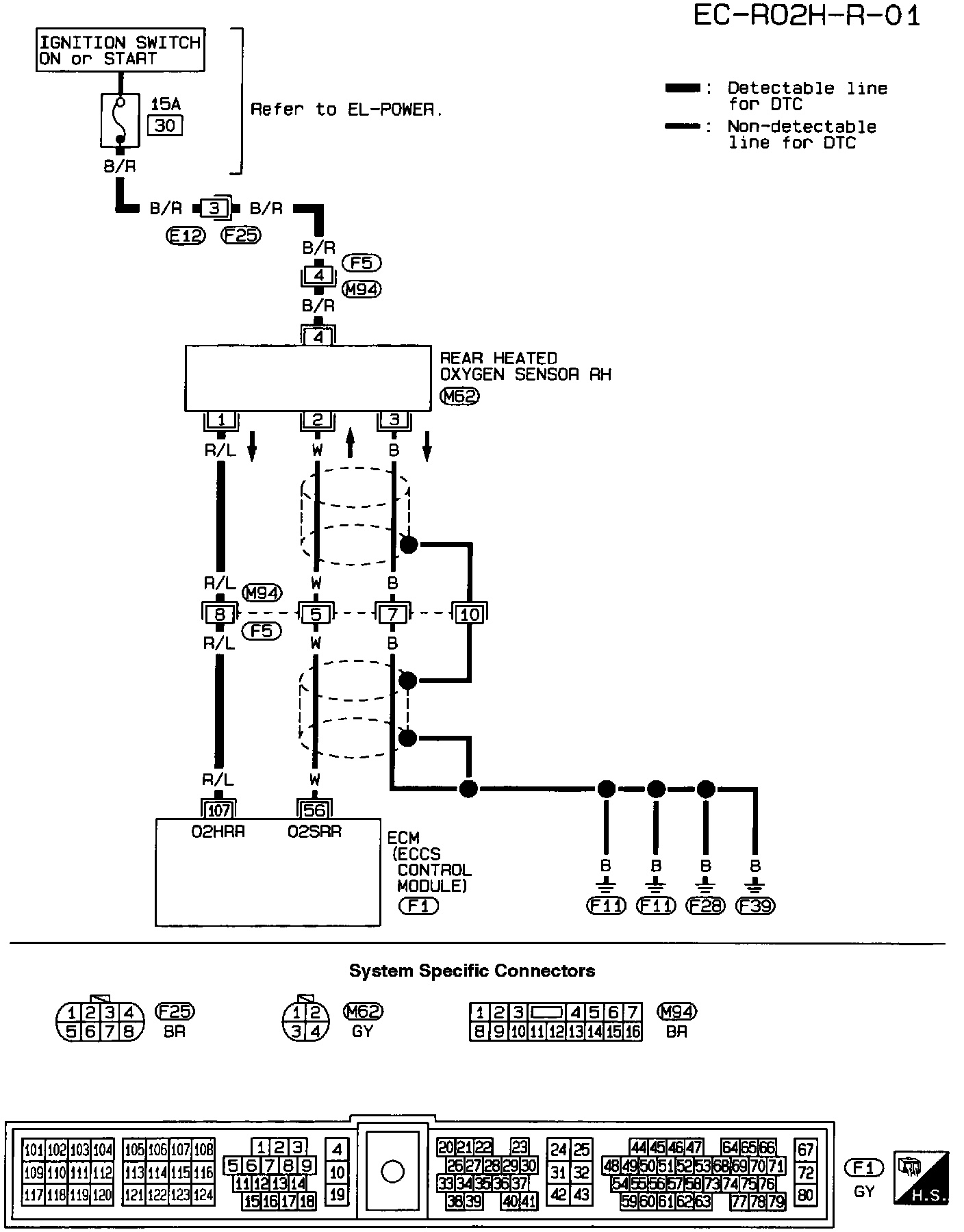

EC-RO2H-R-01 Rear Heated Oxygen Sensor Heater (Right Bank) (DTC: 0902):
