Rear Heated Oxygen Sensor (Right Bank)

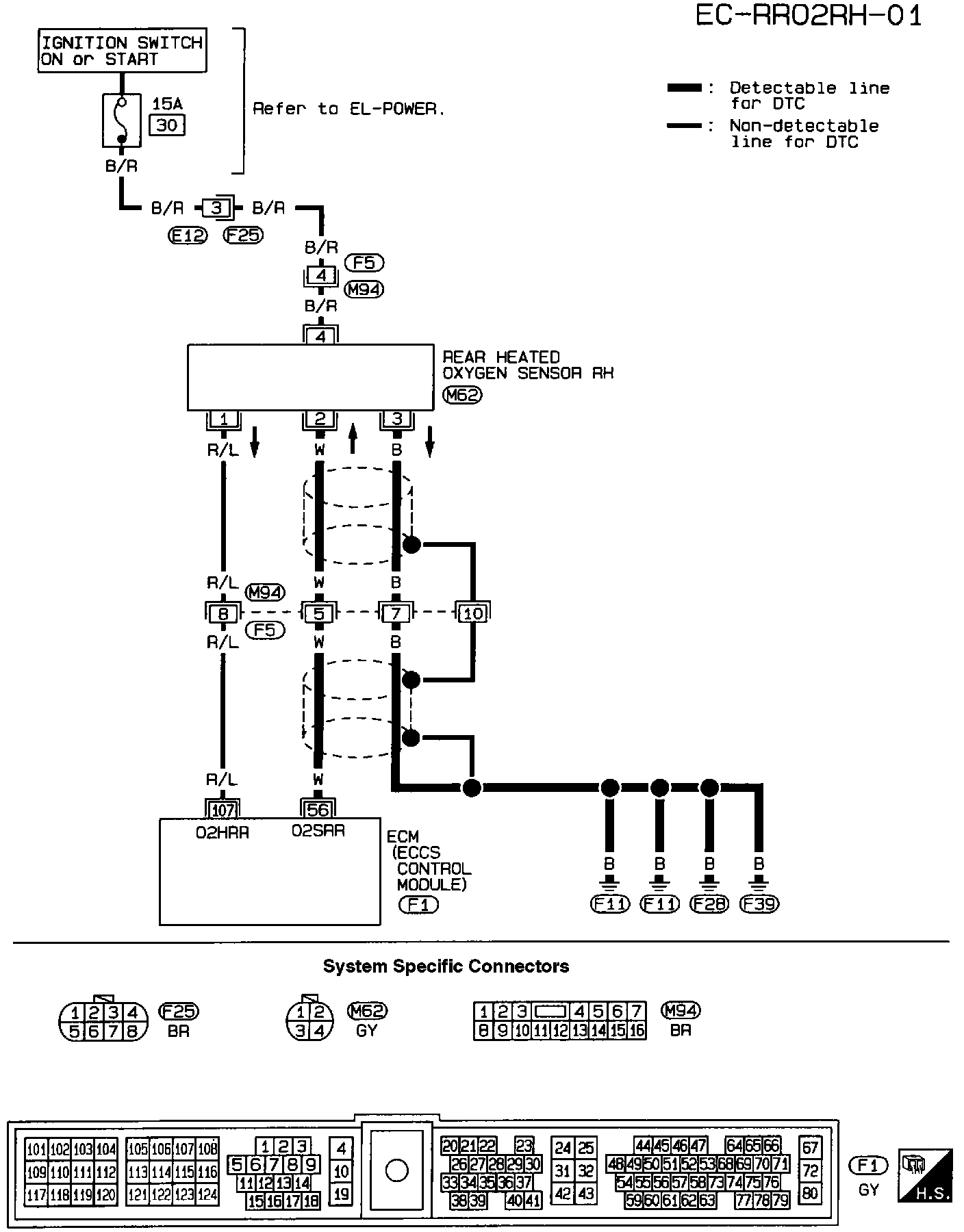

EC-RRO2RH-01 Rear Heated Oxygen Sensor (Rear HO2S) (Right Bank) (DTC: 0707):
