Rear Heated Oxygen Sensor (Left Bank)

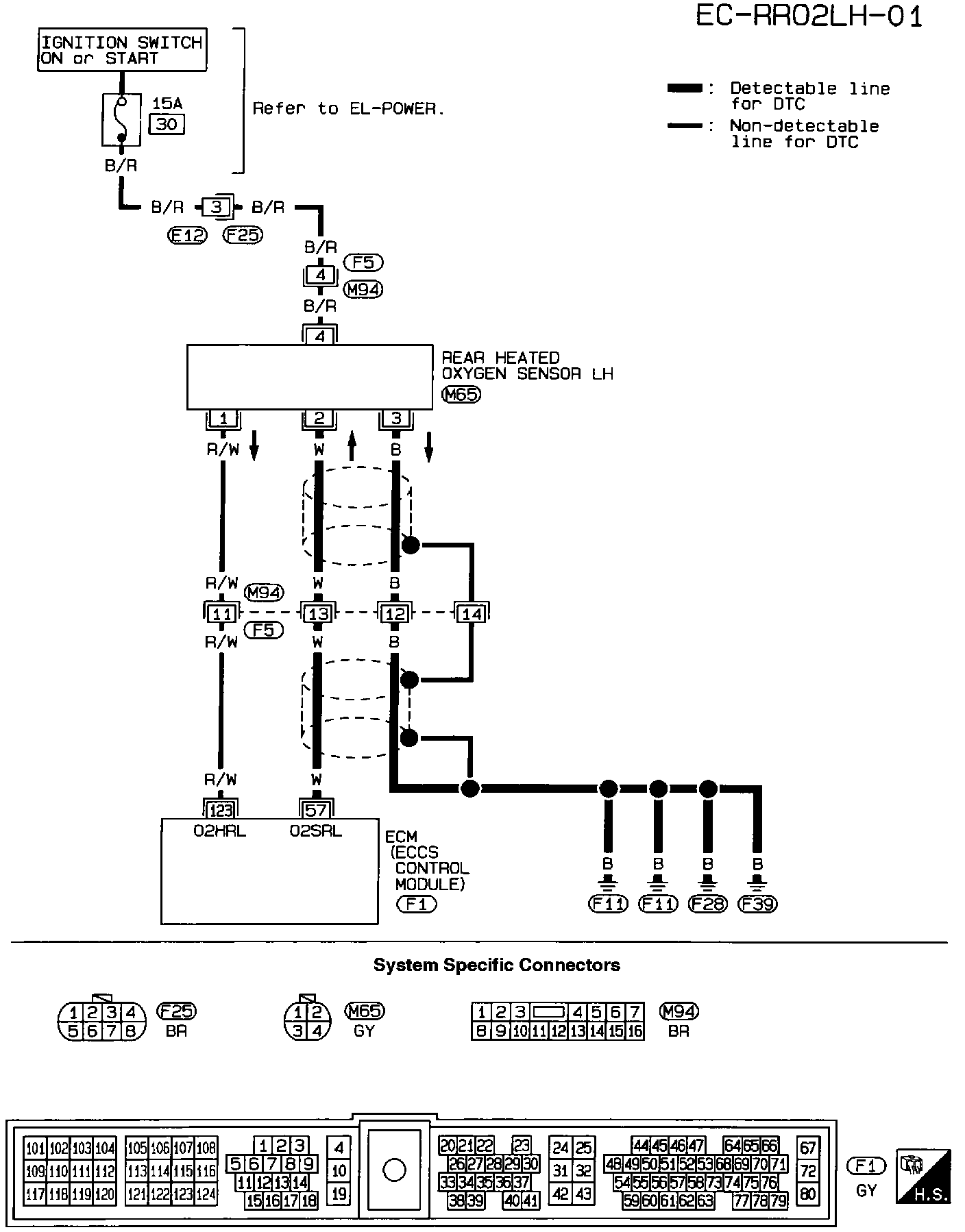

EC-RRO2LH-01 Rear Heated Oxygen Sensor (Rear HO2S) (Left Bank) (DTC: 0708):
