Crankshaft Position Sensor (CKPS) (OBD) (COG)

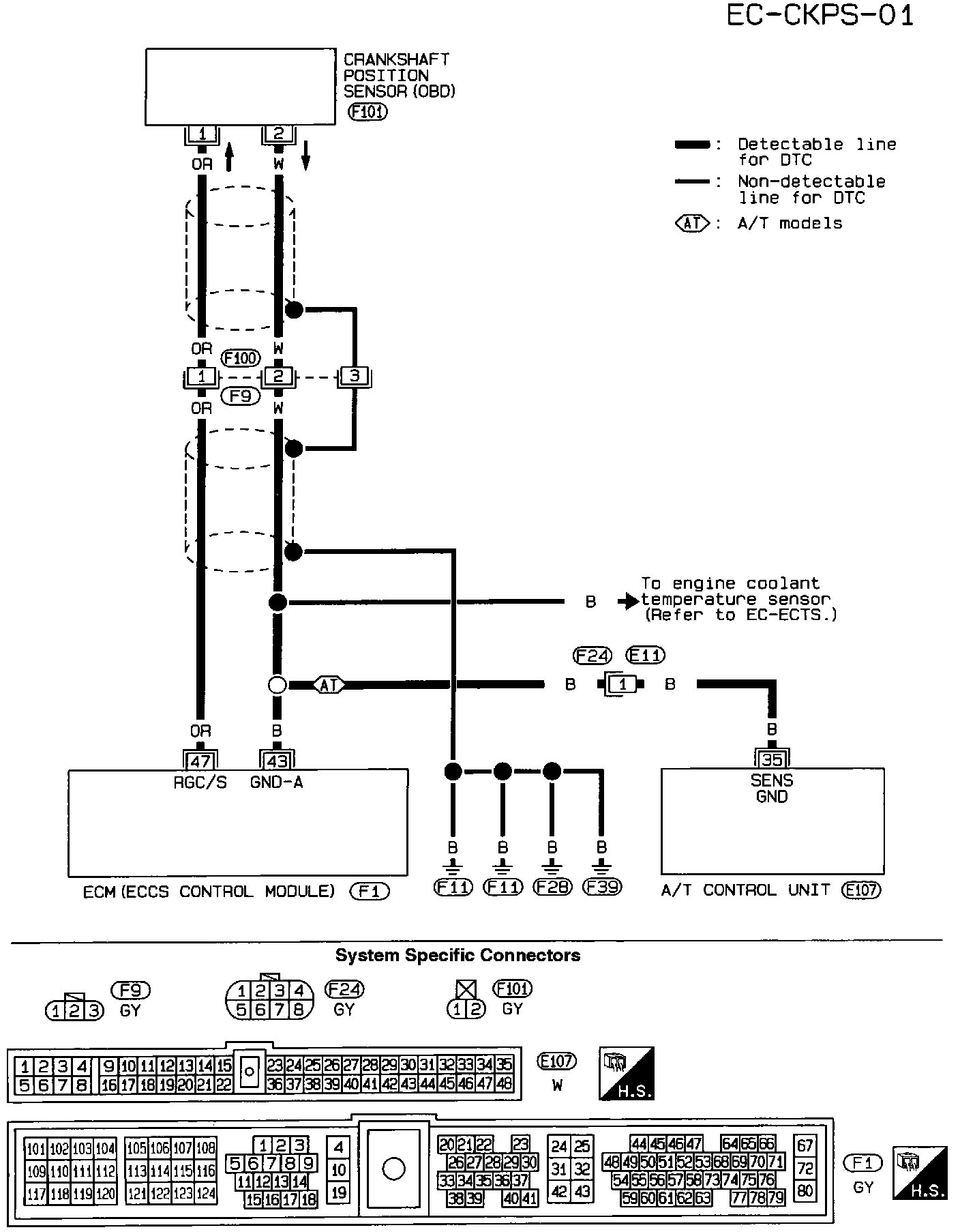

EC-CKPS-01 Crankshaft Position Sensor (CKPS) (OBD) (DTC: 0905):
