Idle Up Control Valve: Testing and Inspection
COMPONENT INSPECTIONIACV-FICD Solenoid Valve
Disconnect IACV-FICD solenoid valve harness connector.

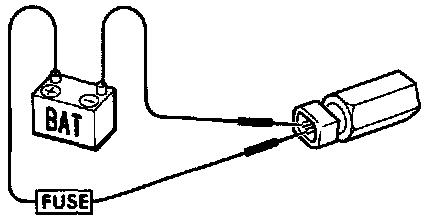

- Check for clicking sound when applying 12V direct current to terminals.

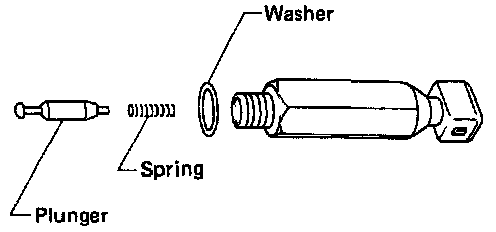

- Check plunger for seizing or sticking.
- Check for broken spring.
