Component Tests and General Diagnostics

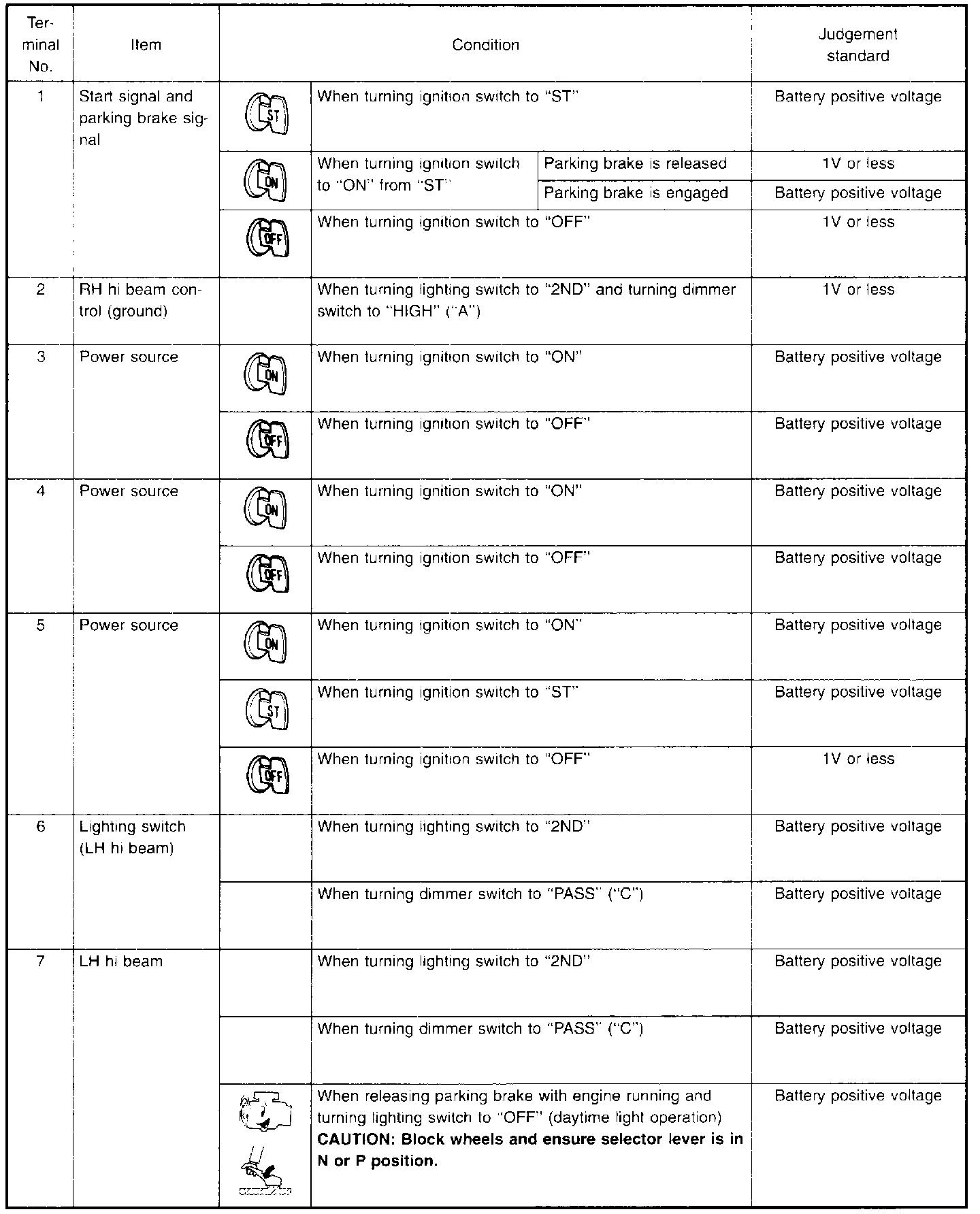

Daytime Light Control Unit Inspection Table (Part 1 Of 2):

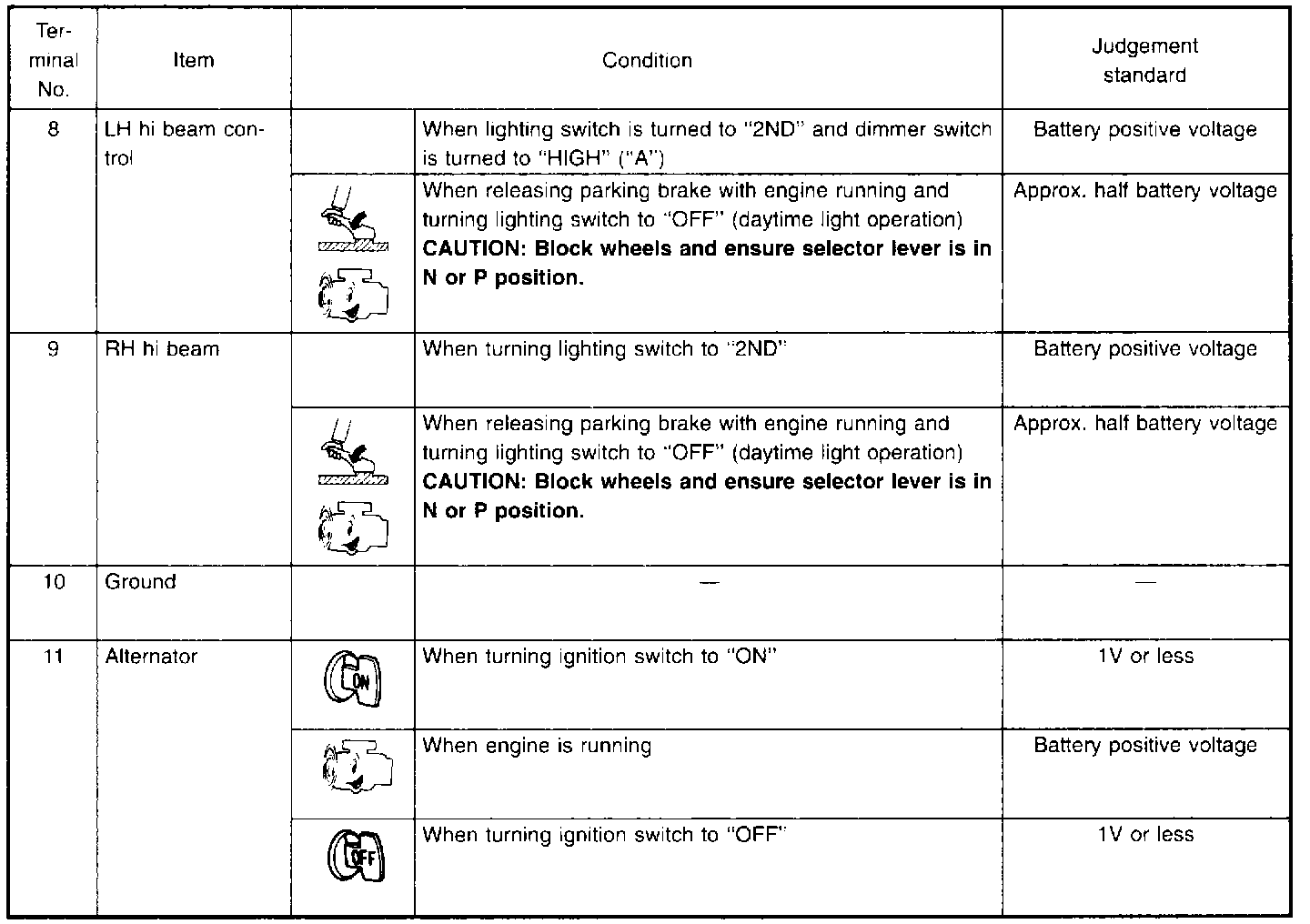

Daytime Light Control Unit Inspection Table (Part 2 Of 2):





(Data are reference values)
