Home >> Nissan-Datsun >> 1996 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Fuel Injection System Function >> Right Bank >> Rich Side

Rich Side

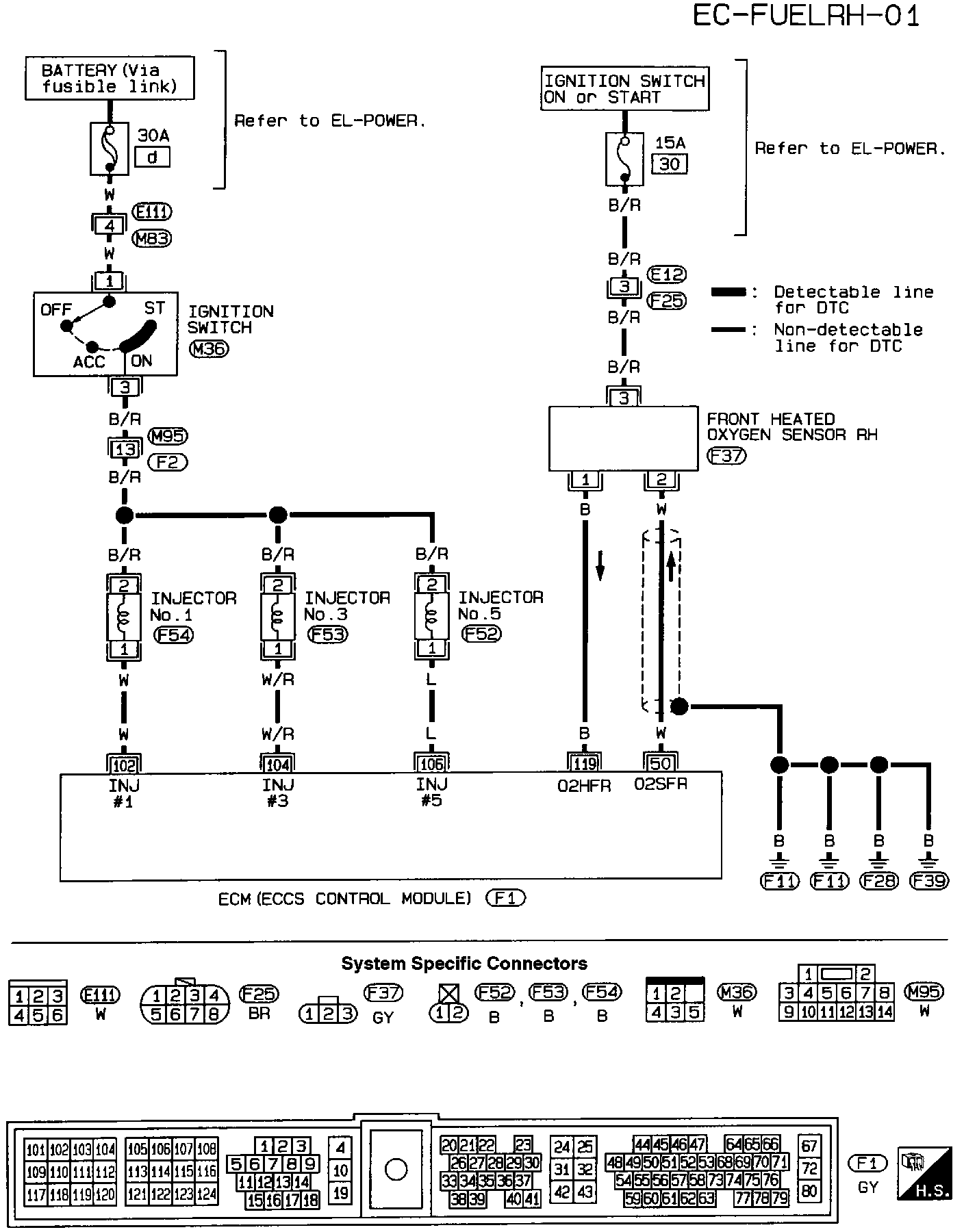

EC-FUELRH-01 Fuel Injection System Function (Right Bank) (Rich Side) (DTC: 0114):
