Home >> Nissan-Datsun >> 1996 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> System Diagram

System Diagram

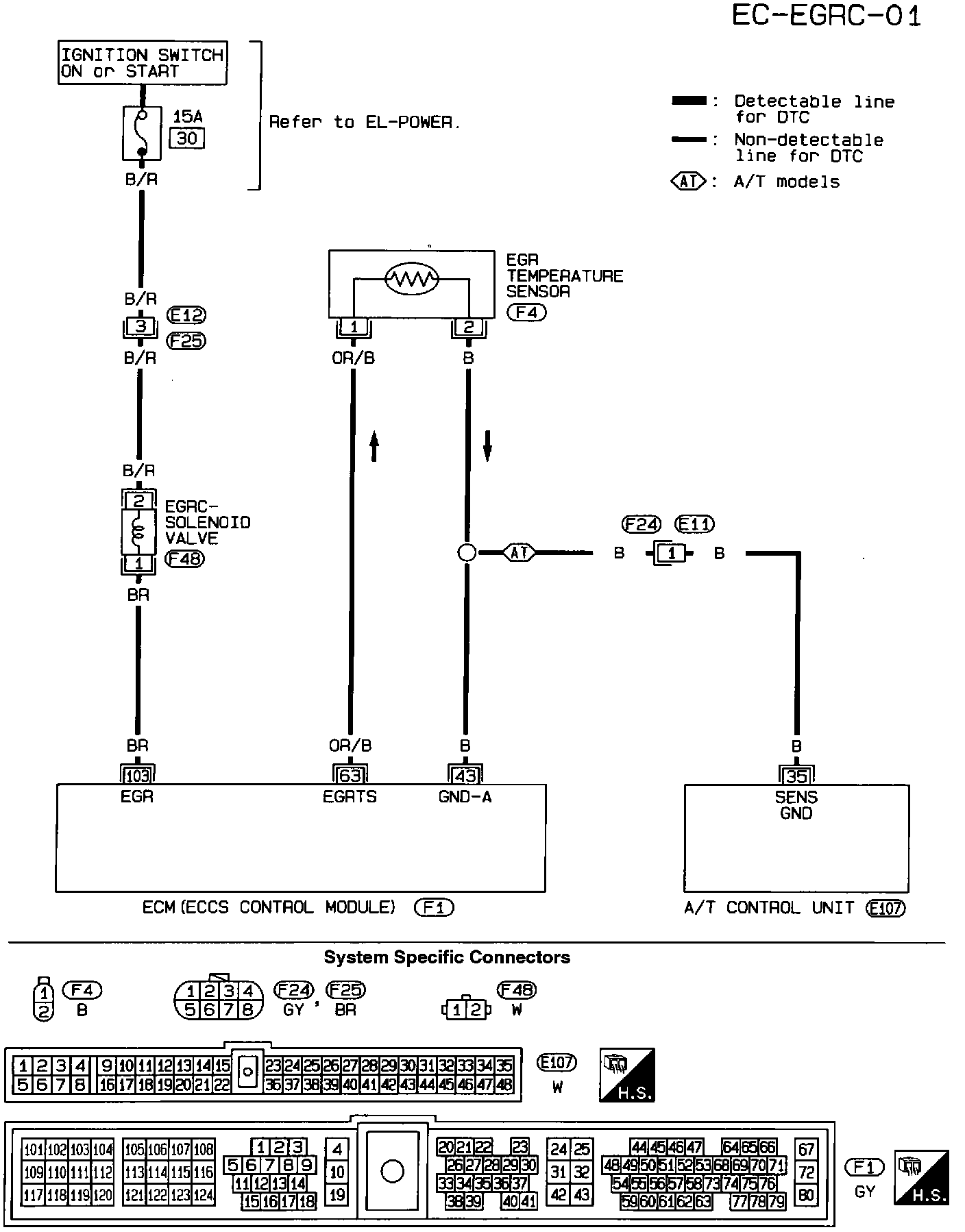

EC-EGRC-01 EGR Function (DTC: 0302):
