300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
>>
System Specific Connectors
>>
M34
M34

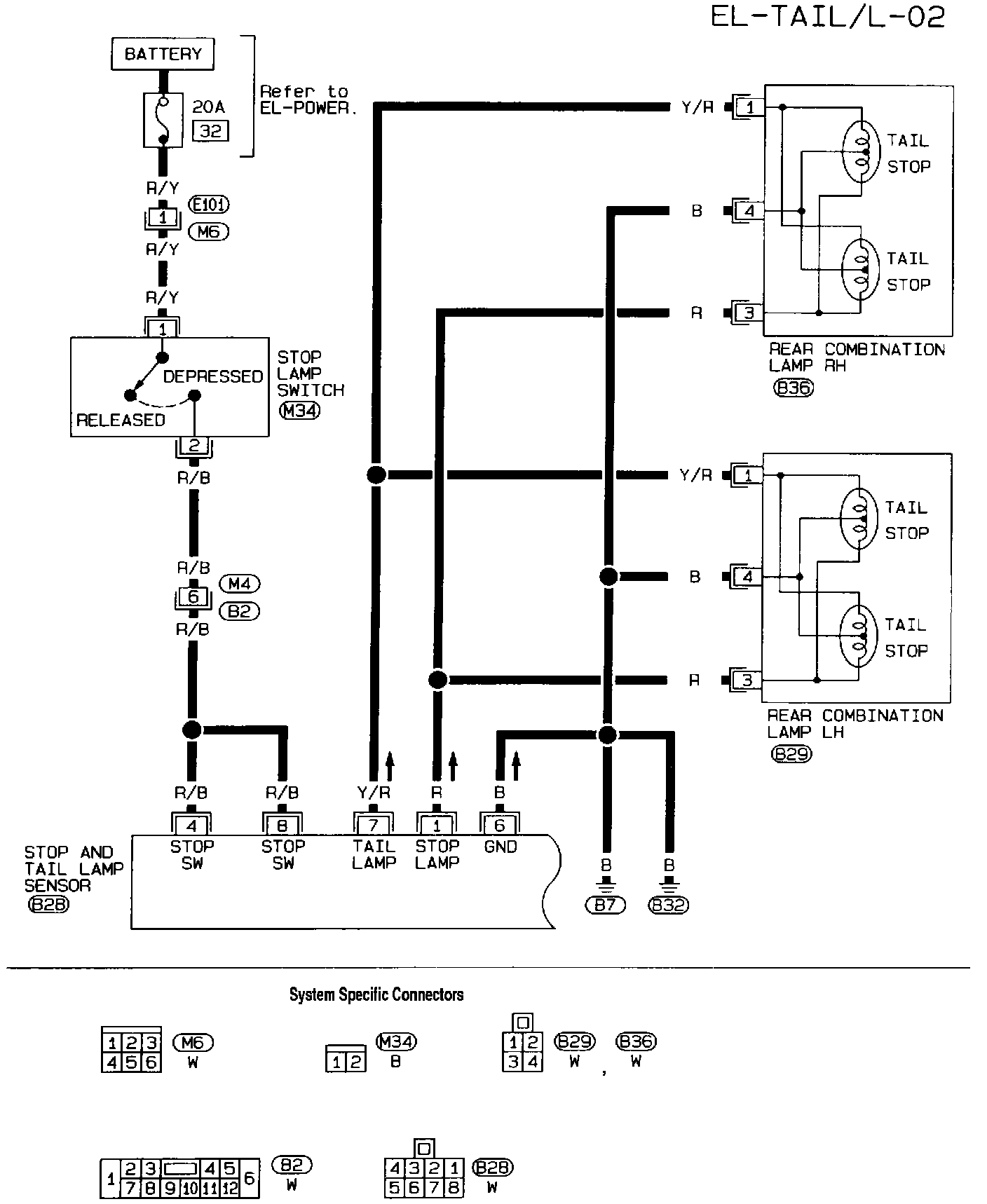

EL-TAIL/L-02 Clearance, License, Tail And Stop Lamps (Part 2 Of 3):
