Home >> Nissan-Datsun >> 1996 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp >> System Specific Connectors >> M7

M7

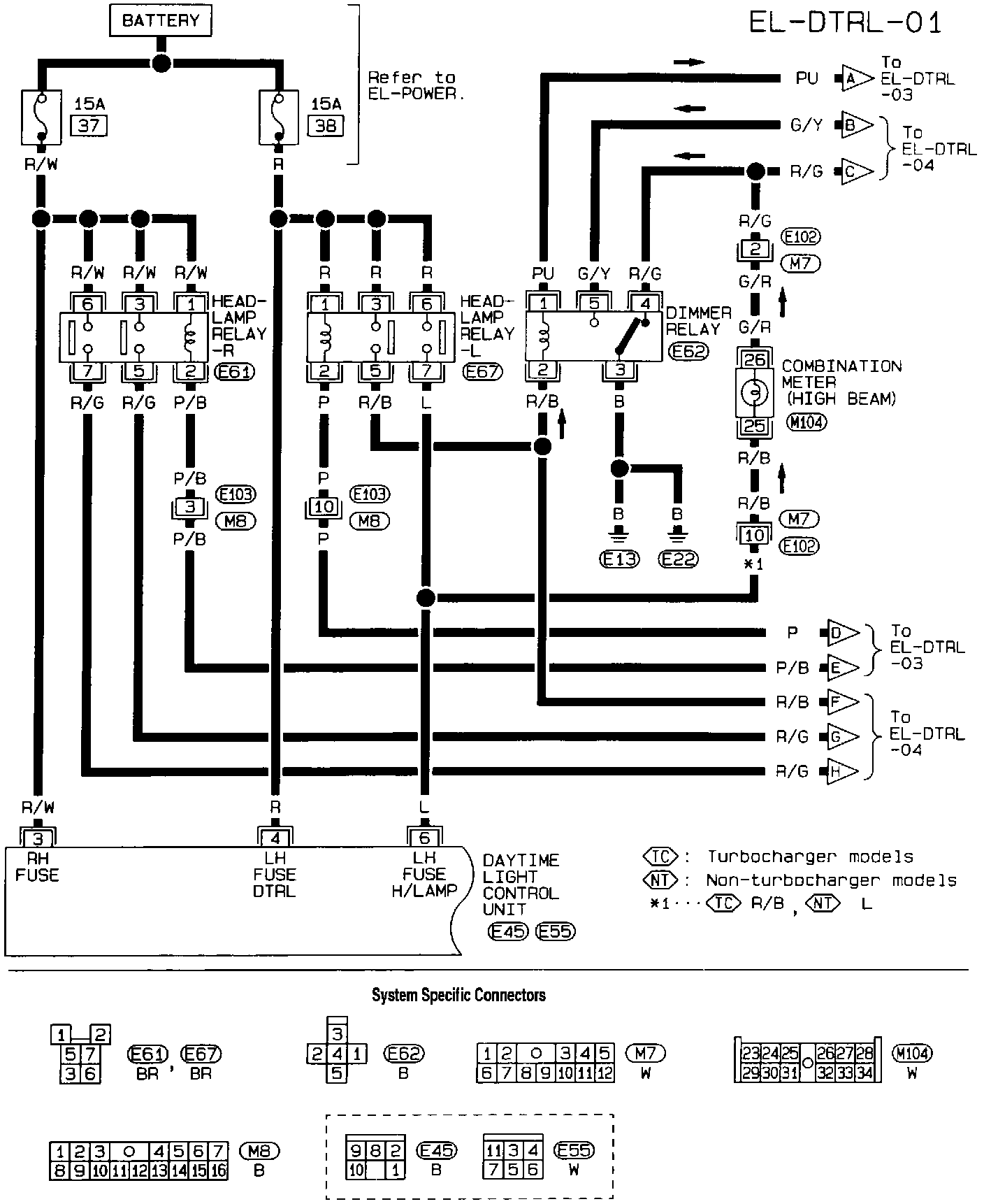

EL-DTRL-01 Daytime Light System (Part 1 Of 4):
