300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp
>>
System Specific Connectors
>>
M30
M30

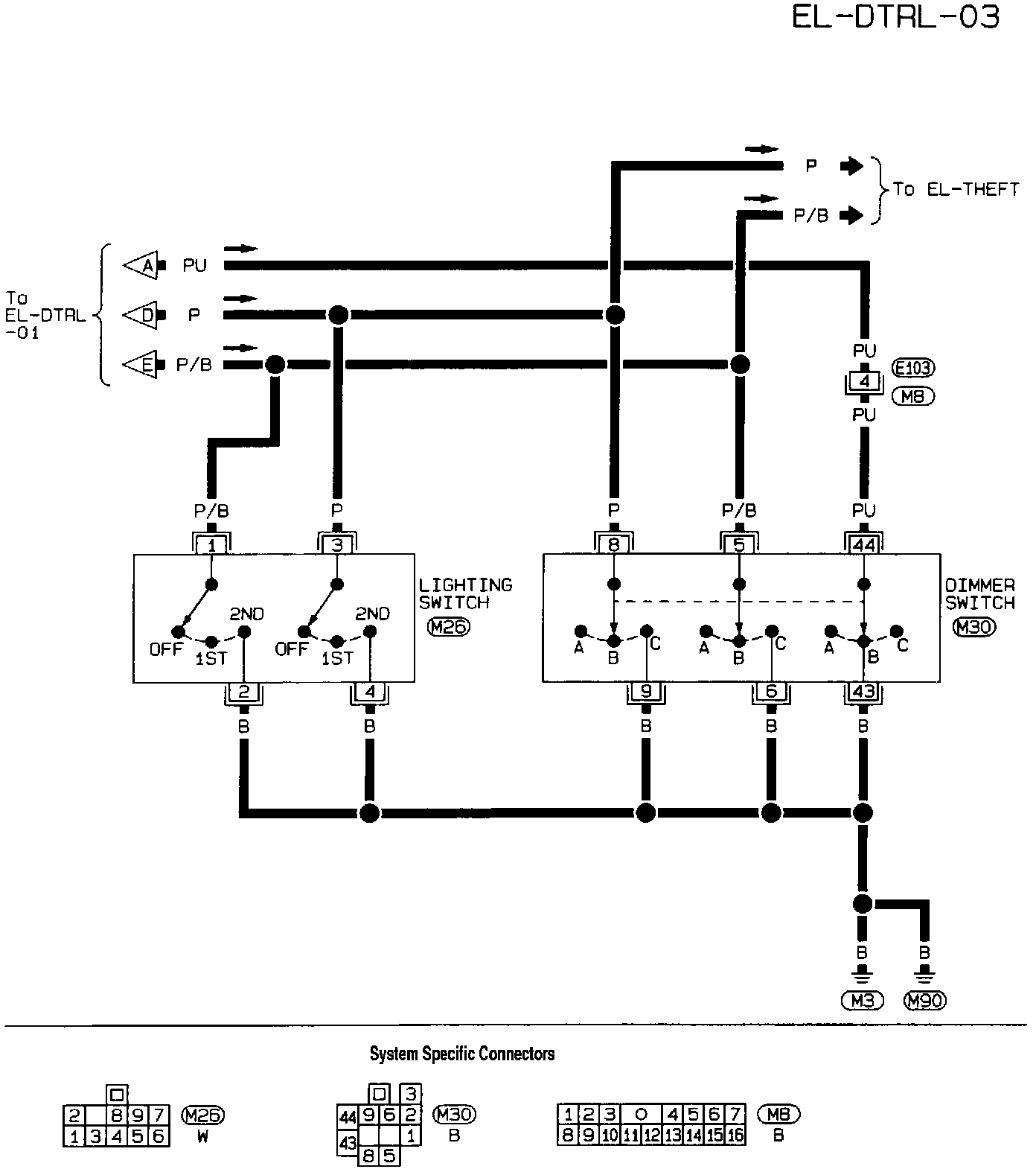

EL-DTRL-03 Daytime Light System (Part 3 Of 4):
