Home >> Nissan-Datsun >> 1996 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Trunk / Liftgate Lock >> Diagrams >> Electrical Diagrams >> Electrical Diagrams

Electrical Diagrams

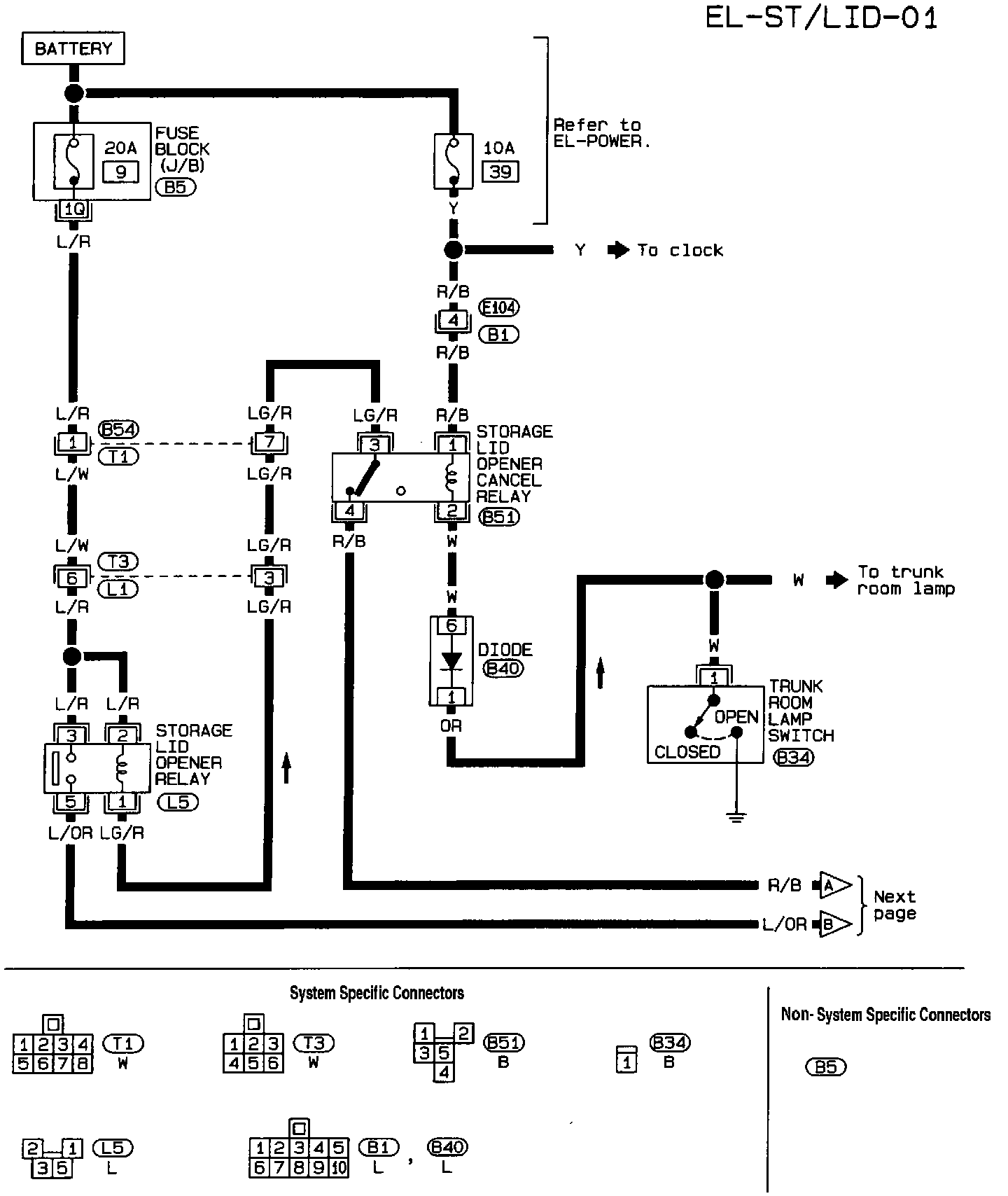

EL-ST/LID-01 Storage Lid Opener (Part 1 Of 4):

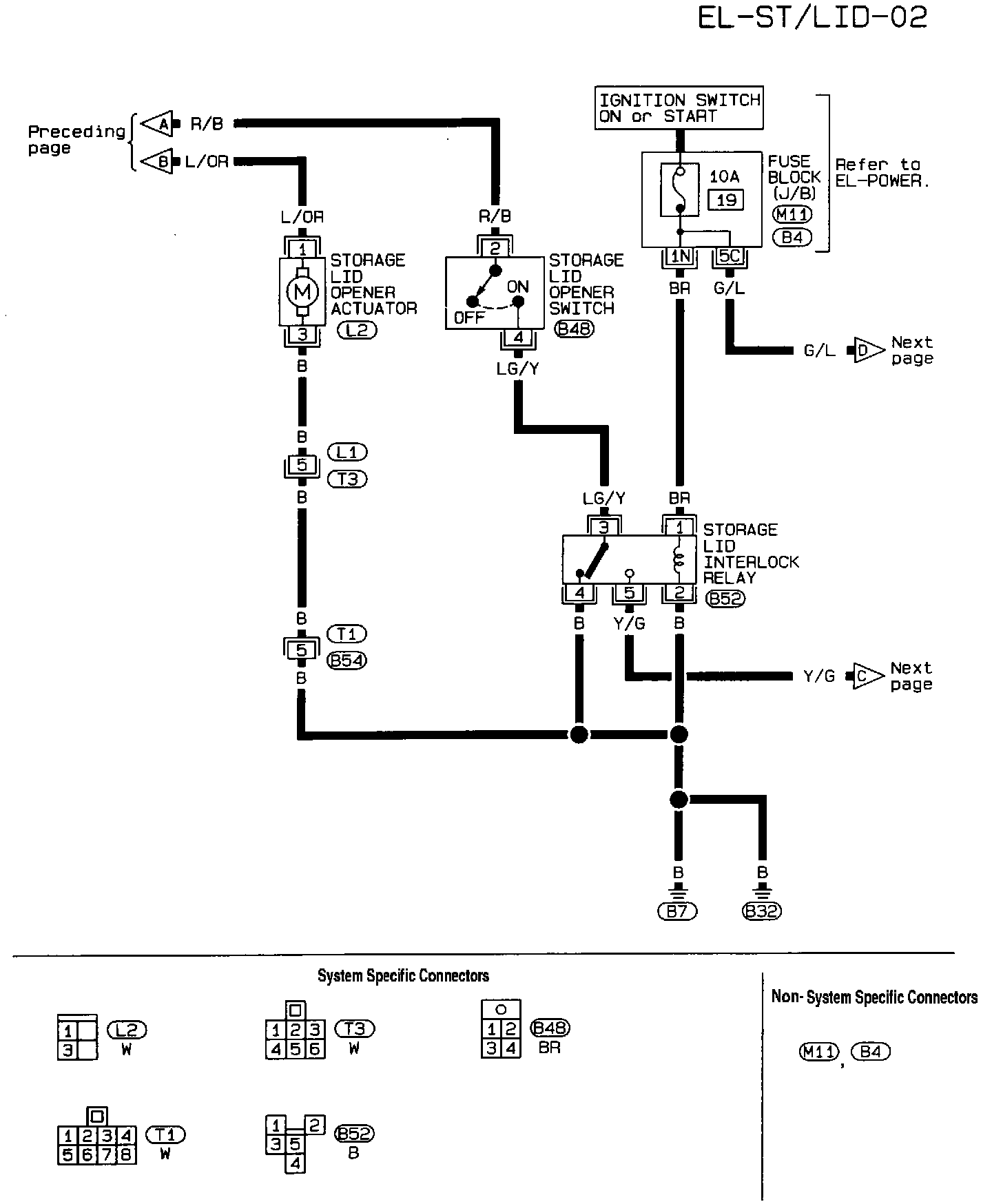

EL-ST/LID-02 Storage Lid Opener (Part 2 Of 4):

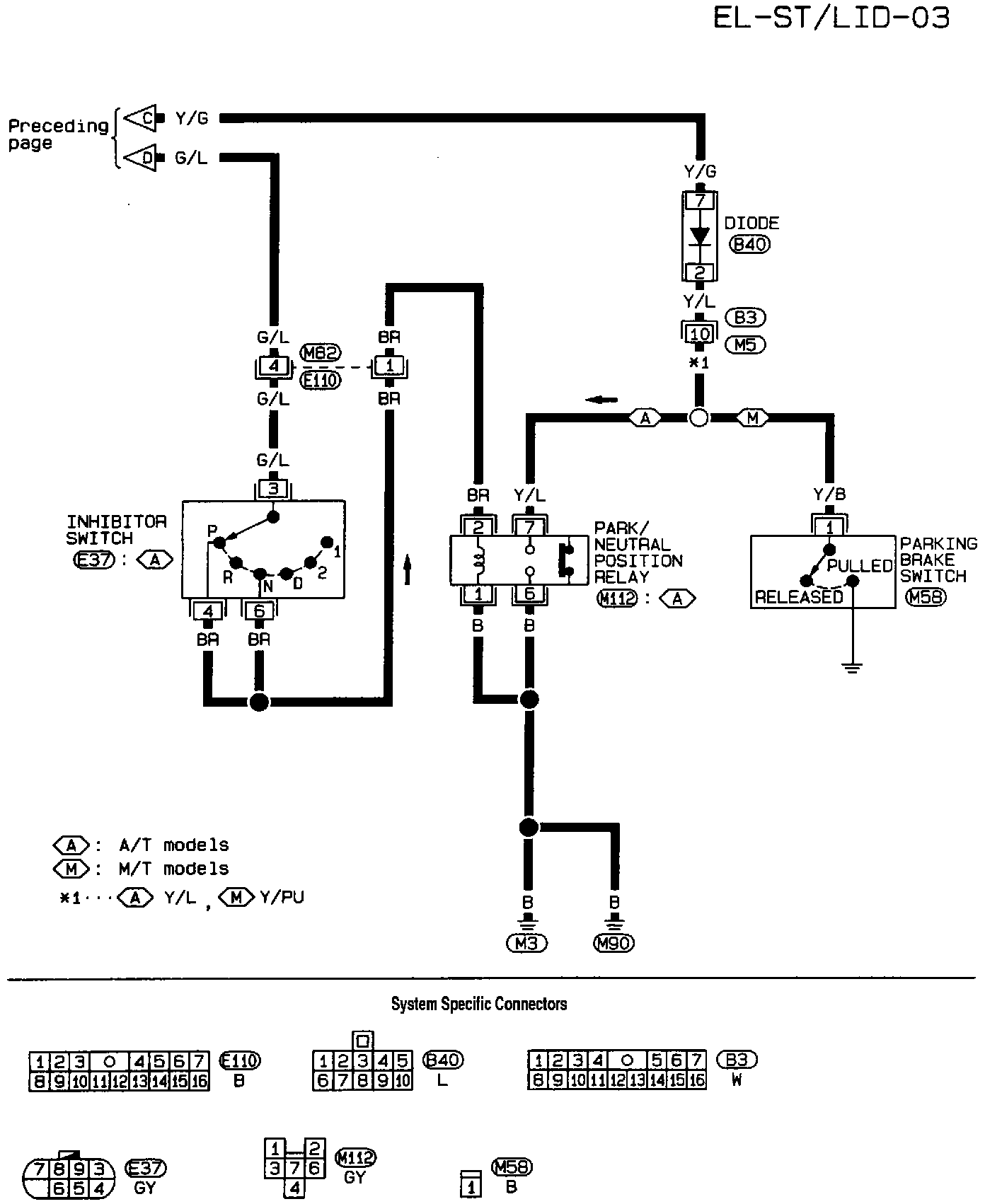

EL-ST/LID-03 Storage Lid Opener (Part 3 Of 4):

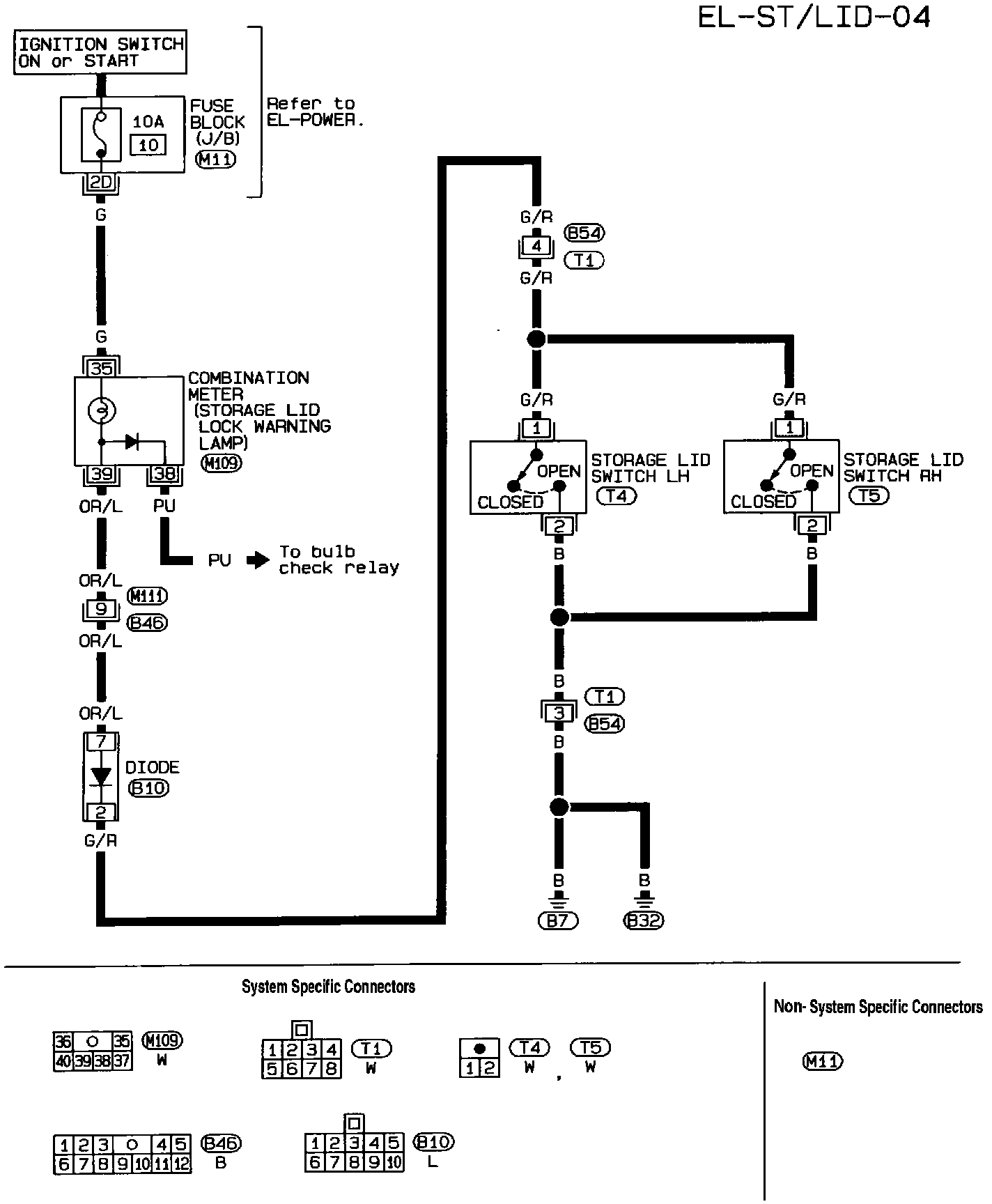

EL-ST/LID-04 Storage Lid Opener (Part 4 Of 4):
